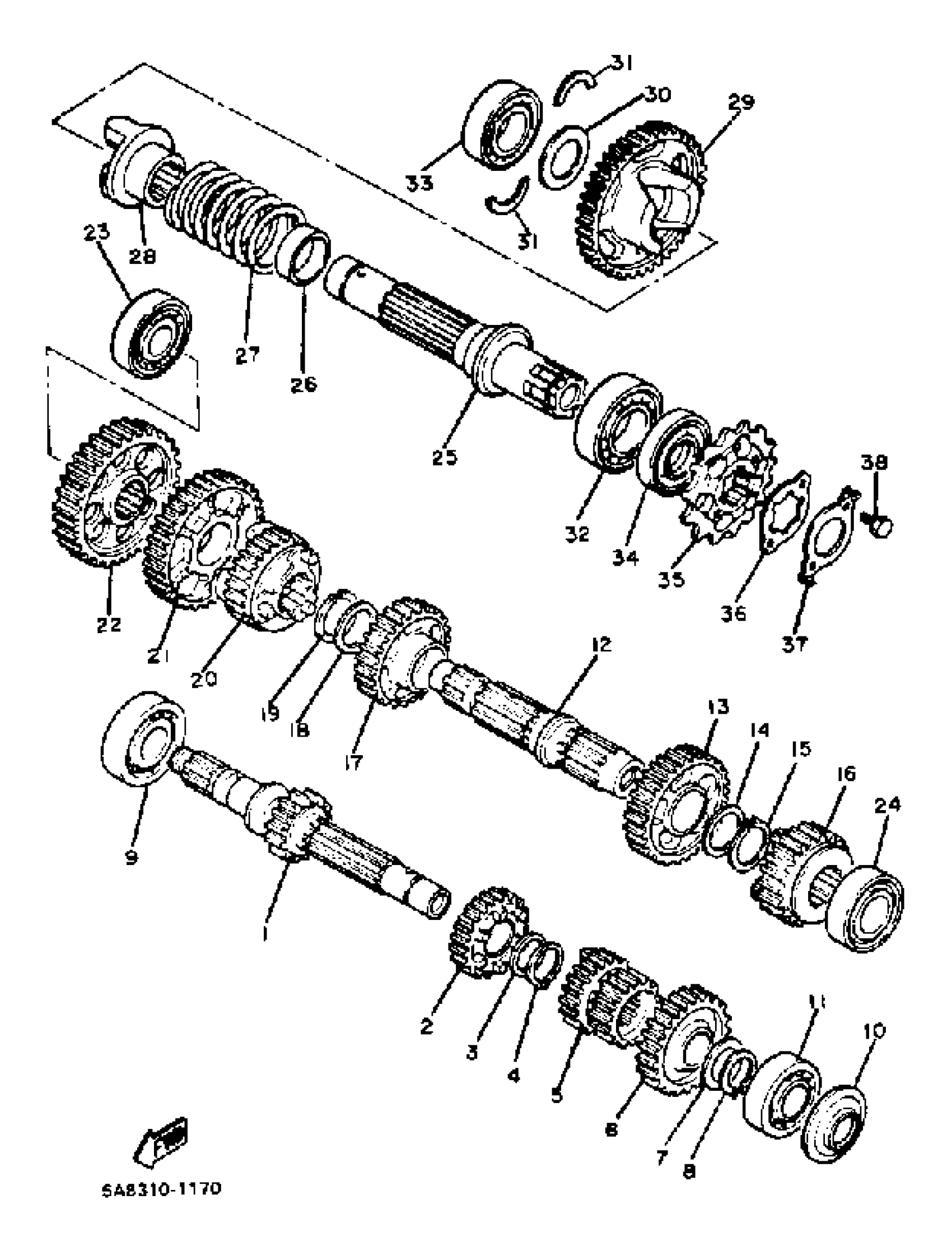

Yamaha XV920RJ (XV920RJ) 1982 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

4X7-17411-00-00

Unavailable

2

GEAR, 4TH PINION

5EL-17141-00-00

$94.99

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP(JF7)

99009-25400-00

$8.49

5

GEAR, 2ND/3RD PINION (24/28T)

4X7-17121-00-00

Unavailable

6

GEAR, 5TH PINION

4X7-17151-01-00

Unavailable

7

WASHER PLATE 328171160000

90201-20276-00

$8.49

8

CIRCLIP(1AR)

99009-20400-00

$8.49

9

BEARING (3Y1)

93306-30525-00

$63.99

10

OIL SEAL (4X7)

93104-20068-00

$14.99

11

BEARING

93306-30443-00

Unavailable

12

DRIVE AXLE ASSEMBLY

4X7-17402-00-00

Unavailable

13

GEAR, 2ND WHEEL (40T)

4X7-17221-00-00

Unavailable

14

WASHER (3J3)

90209-27192-00

$8.49

15

CIRCLIP (3J3)

93440-30077-00

$10.49

16

GEAR, 5TH WHEEL

4X7-17251-01-00

Unavailable

17

GEAR, 3RD WHEEL (36T)

4X7-17231-00-00

Unavailable

18

WASHER (3J3)

90209-27192-00

$8.49

19

CIRCLIP (3J3)

93440-30077-00

$10.49

20

GEAR, 4TH WHEEL (32T)

4X7-17241-00-00

Unavailable

21

GEAR, 1ST WHEEL

4X7-17211-00-00

Unavailable

22

GEAR, MIDDLE DRIVE

(5H1-17582-00-00)

Unavailable

23

BEARING(1YW)

93306-20461-00

Unavailable

24

BRG,R-B 6205DU8 52MM NK

93306-20550-00

Unavailable

25

NO LONGER AVAILABLE

5A8-17431-01-00

Unavailable

26

COLLAR

(90387-296E0-00)

Unavailable

27

SPRING, COMPRESSION (5A8)

90501-75638-00

Unavailable

28

CAM, DRIVEN

5A8-17527-00-00

Unavailable

29

GEAR, MIDDLE DRIVEN (55T)

5H1-17583-01-00

Unavailable

30

WASHER, PLATE(1FK)

90201-252K4-00

Unavailable

31

WASHER(1FK)

90209-21281-00

Unavailable

32

BEARING(3KW)

93306-30630-00

Unavailable

33

BRG,R-B 6205DU8 52MM NK

93306-20550-00

Unavailable

34

OIL SEAL, SD-TYPE

93102-30237-00

Unavailable

35

SPROCKET, DRIVE (16T)

93875-16115-00

Unavailable

36

HOLDER, SPROCKET

5A8-17456-00-00

Unavailable

37

WASHER, LOCK

90215-30191-00

Unavailable

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable
