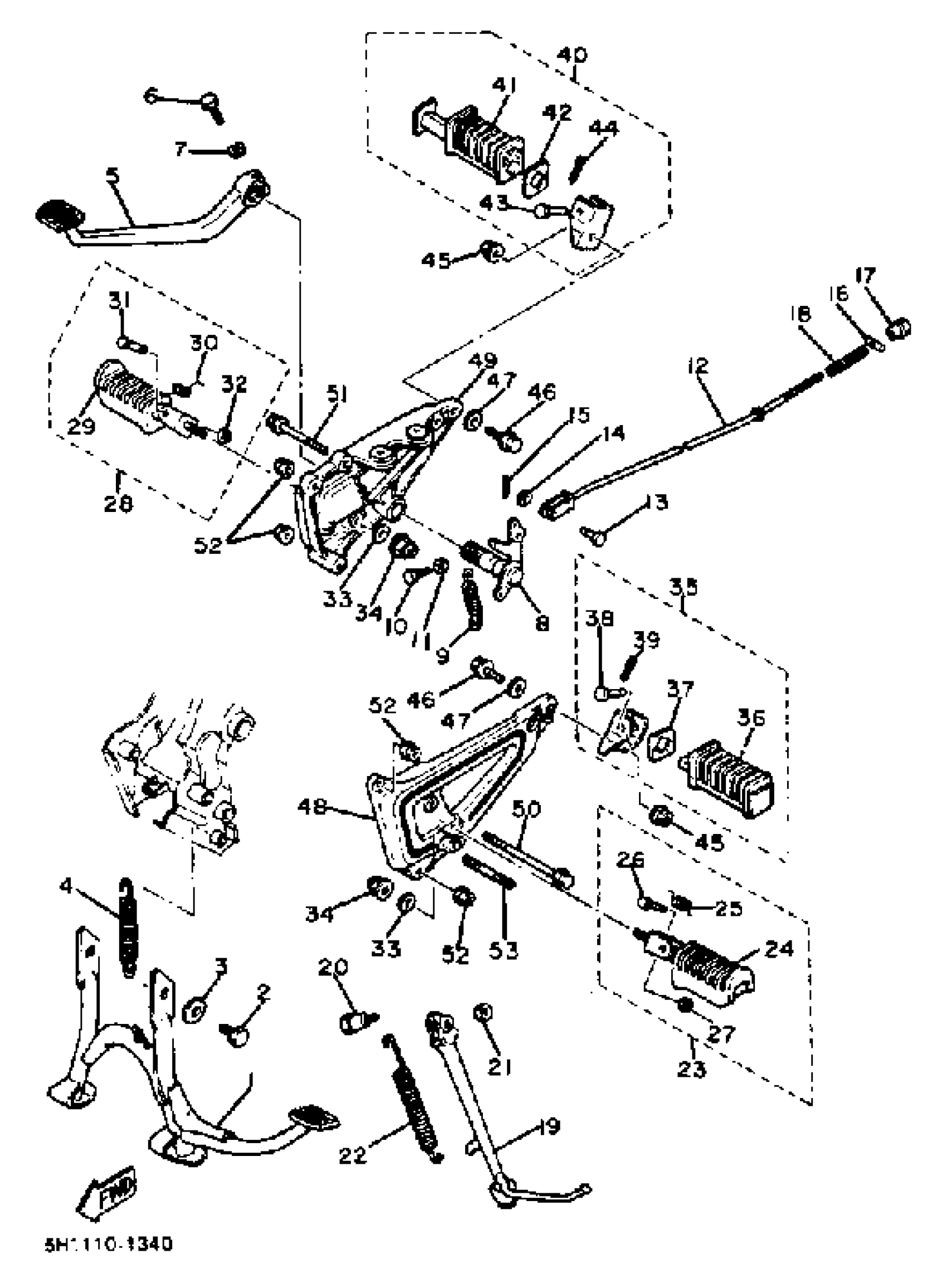

Yamaha XV920RJ (XV920RJ) 1982 STAND FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

5A8-27111-00-R4

Unavailable

2

BOLT,HEXAGON

97017-10016-00

Unavailable

3

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

4

SPRING, TENSION (1T5)

90506-35149-00

$17.99

5

PEDAL, BRAKE

5A8-27211-00-93

Unavailable

6

BOLT (1J7)

90109-06468-00

$7.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

SHAFT, BRAKE PEDAL

(5A8-27212-00-00)

Unavailable

9

SPRING, TENSION (2X3)

90506-20193-00

$14.99

10

SCREW 341272170000

90153-06008-00

$7.49

11

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

12

ROD, BRAKE

5A8-27231-00-00

Unavailable

13

PIN, CLEVIS (24X)

90240-06103-00

$7.49

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PIN, COTTER

91490-20025-00

$1.99

16

PIN 1562723700

90249-12008-00

Unavailable

17

NUT (25K)

90179-06411-00

Unavailable

18

SPRING, (180-27236-00)

90501-10245-00

Unavailable

19

STAND, SIDE

5A8-27311-00-R4

Unavailable

20

BOLT

90109-10473-00

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

SPRING (460)

90507-29009-00

Unavailable

23

FRT FOOTREST ASSEMBLY L (L.H)

5A8-27410-00-00

Unavailable

24

COVER, FOOTREST

4L0-27423-00-00

Unavailable

25

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

26

SHAFT

(2H9-27427-00-00)

Unavailable

27

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

28

FRT FOOTREST ASSEMBLY R

5A8-27420-00-00

Unavailable

29

COVER, FOOTREST

4L0-27423-00-00

Unavailable

30

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

31

SHAFT

(2H9-27427-00-00)

Unavailable

32

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

33

WASHER PLATE (789)

90201-10136-00

Unavailable

34

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

35

RR FOOTREST ASY 1

4G0-27430-00-00

Unavailable

36

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

37

WASHER 447274370000

90209-18070-00

Unavailable

38

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

39

PIN, COTTER

91490-16020-00

Unavailable

40

RR FOOTREST ASSEMBLY 2ASSEMBLY 2

5A8-27440-00-00

Unavailable

41

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

42

WASHER 447274370000

90209-18070-00

Unavailable

43

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

44

PIN, COTTER

91490-16020-00

Unavailable

45

NUT

90179-10321-00

Unavailable

46

BOLT, FLANGE

95817-10035-00

Unavailable

47

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

48

BRACKET 2

5A8-27442-00-00

Unavailable

49

BRACKET 3

5A8-27443-00-00

Unavailable

50

BOLT, WASHER BASED (5E3)

90105-10183-00

Unavailable

51

BOLT, WASHER BASED

90105-10184-00

Unavailable

52

NUT(4KG)

90179-10658-00

Unavailable

53

BOLT, STUD 2

95627-10330-00

Unavailable
