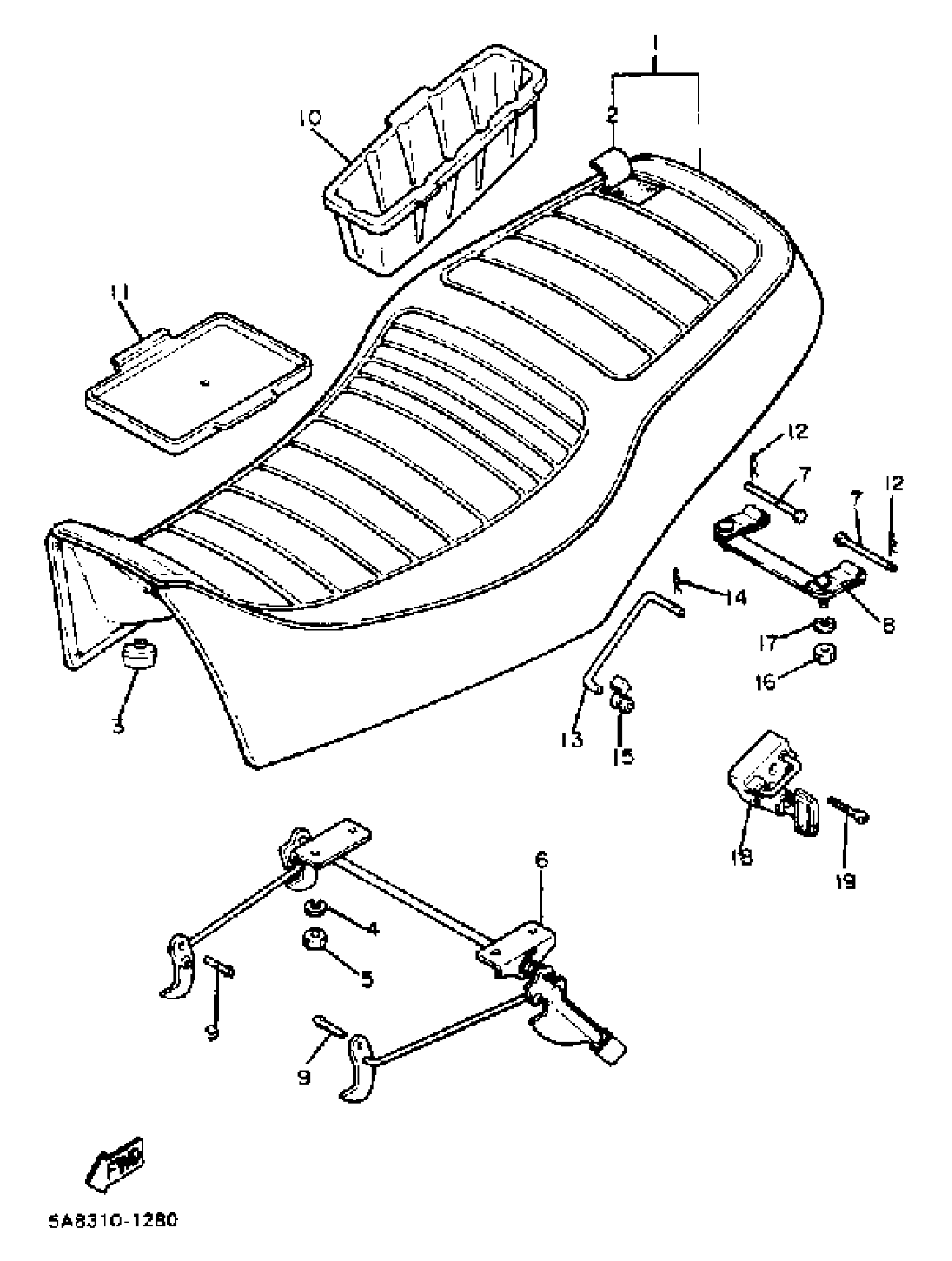

Yamaha XV920RJ (XV920RJ) 1982 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

5A8-W2472-01-00

Unavailable

2

. COVER, DOUBLE SEAT

5A8-24731-00-00

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

WASHER, SPRING

92995-06100-00

Unavailable

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

SEAT LEVER ASSEMBLY

5A8-24760-00-00

Unavailable

7

PIN, CLEVIS

91701-05060-00

Unavailable

8

HINGE, SEAT

5A8-24726-01-00

Unavailable

9

PIN

(5A8-24793-00-00)

Unavailable

10

LID 1

5A8-2473T-00-00

Unavailable

11

LID

395-28185-00-00

Unavailable

12

CLIP (156-83525-00)

90468-10050-00

$3.05

13

STOPPER

5A8-24768-00-00

Unavailable

14

CLIP (156-83525-00)

90468-10050-00

$3.05

15

STAY, REAR

1J7-24719-00-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

HELMET HANGER ASSEMBLY

5A8-21308-00-00

Unavailable

19

SCREW, FLAT

98707-06020-00

Unavailable
