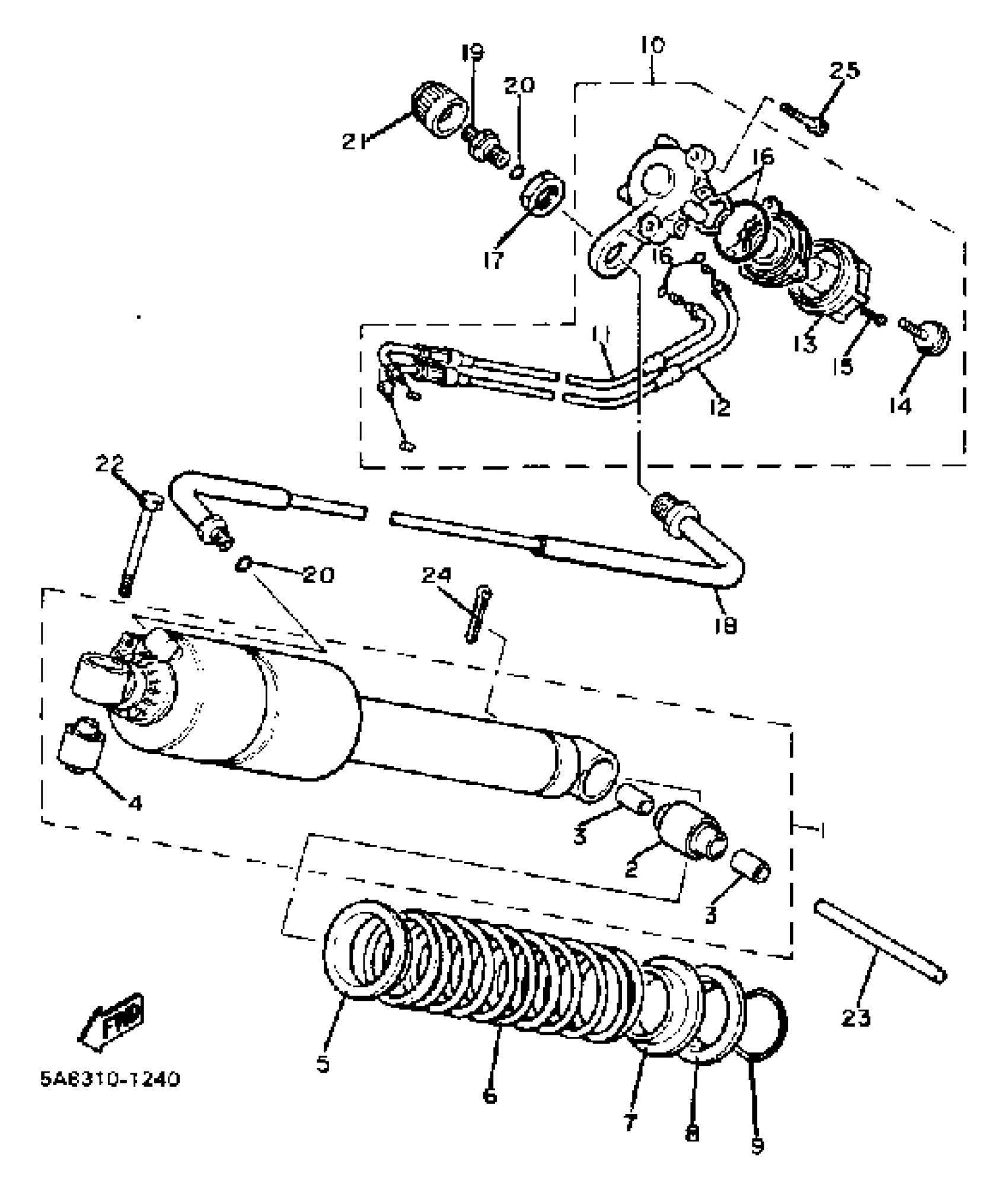

Yamaha XV920RJ (XV920RJ) 1982 REAR SUSPENSION Diagram

#

Description

Price

1

DAMPER SUB ASSEMBLY

5A8-22201-00-00

Unavailable

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

Unavailable

3

BUSH, SOLID (1M1)

90380-12051-00

$15.99

4

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

5

SEAT, SPRING UPPER

(4X7-22213-00-00)

Unavailable

6

SPRING

(5A8-22212-00-00)

Unavailable

7

GUIDE, SPRING 2

(50T-22224-00-00)

Unavailable

8

SEAT, SPRING LOWER

(3Y1-22223-00-00)

Unavailable

9

. CIRCLIP, OUTER

93440-48079-00

Unavailable

10

CONTROL PANEL ASSEMBLY

(5A8-22460-00-00)

Unavailable

11

CABLE, CONTROL 1

(5A8-22463-00-00)

Unavailable

12

CABLE, CONTROL 2

(5A8-22467-00-00)

Unavailable

13

KNOB, CONTROL

(4X7-22464-00-00)

Unavailable

14

SCREW, PAN HEAD

(90157-06021-00)

Unavailable

15

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

16

. O-RING SET

4X7-W0005-00-00

Unavailable

17

NUT, HEXAGON

90170-16278-00

Unavailable

18

HOSE, AIR

(5A8-22470-00-00)

Unavailable

19

AIR VALVE ASSEMBLY

4X7-W2241-00-00

Unavailable

20

O-RING

93210-08483-00

Unavailable

21

CAP, ADJUST

4X7-22498-00-00

Unavailable

22

BOLT (4X7)

90101-12498-00

Unavailable

23

PIN, DOWEL

93612-99168-00

Unavailable

24

PIN, COTTER

91490-40045-00

Unavailable

25

BOLT, SOCKET

91314-06016-00

Unavailable
