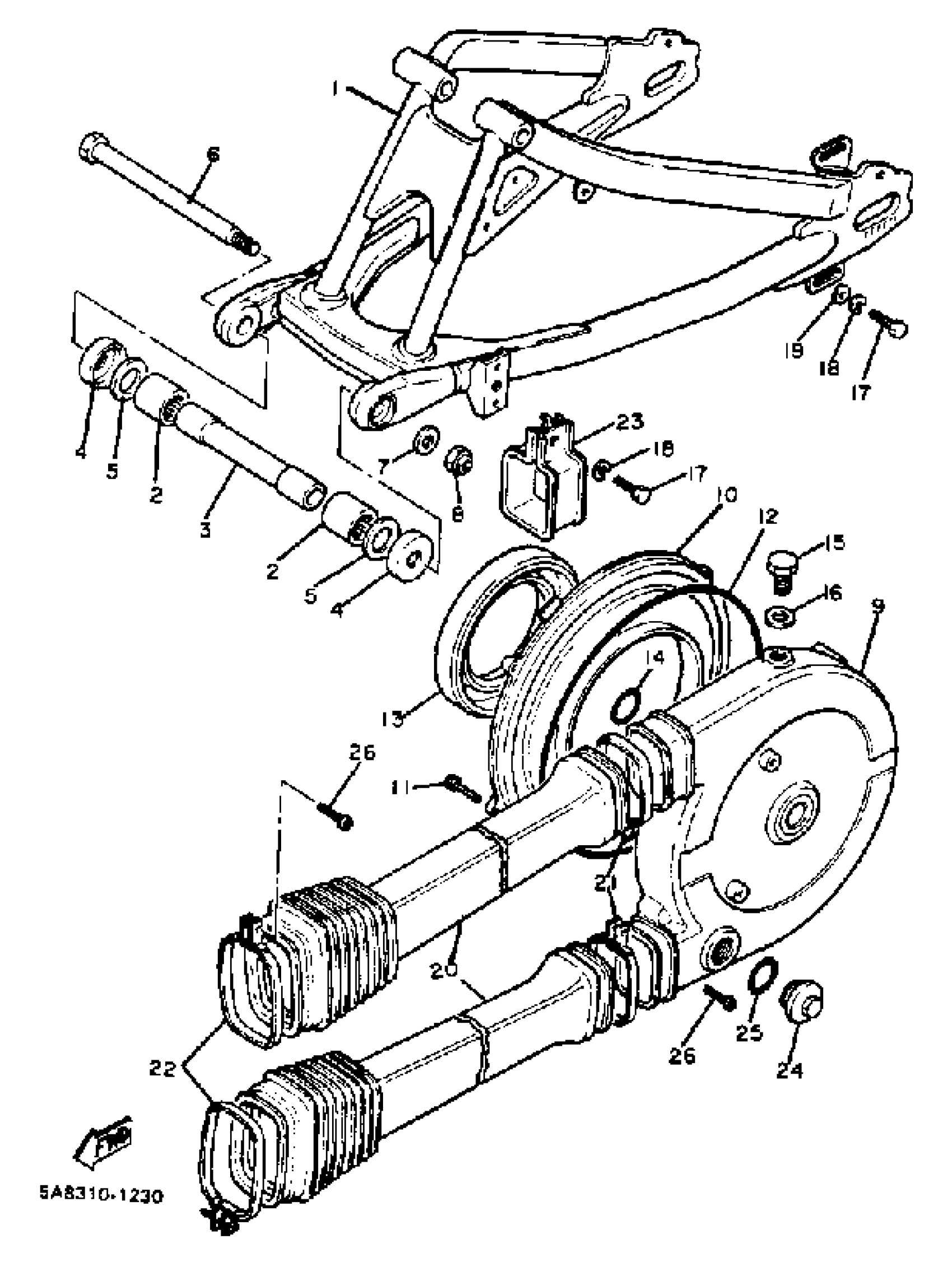

Yamaha XV920RJ (XV920RJ) 1982 REAR ARM Diagram

#

Description
Price

1

REAR ARM

(5A8-22110-01-98)

Unavailable

2

BEARING (4X7)

93320-32403-00

$46.99

3

BUSH 2

4X7-22124-00-00

$75.99

4

COVER, THRUST 2

4X7-22129-00-00

$22.99

5

WASHER

3YF-22149-00-00

$8.99

5

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

5

WASHER, PLATE

90201-245A0-00

Unavailable

6

SHAFT, PIVOT

(5A8-22141-00-00)

Unavailable

7

WASHER(6TD)

92907-16600-00

Unavailable

8

NUT, U (6TD)

95617-16100-00

$26.99

9

CASE, CHAIN

5A8-22311-00-98

Unavailable

10

CASE, CHAIN 2

5A8-22312-00-98

Unavailable

11

BOLT,SOCKET

91317-06018-00

$8.49

12

O-RING

93212-36469-00

Unavailable

13

OIL SEAL, SO-TYPE (93104-99069)

93101-99123-00

Unavailable

14

O-RING

93210-26240-00

Unavailable

15

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

16

GASKET

214-11198-01-00

Unavailable

17

BOLT, HEXAGON

97017-06016-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

20

GUARD, CHAIN

5A8-22318-00-00

Unavailable

21

CLAMP, HOSE

90460-01177-00

Unavailable

22

CLAMP, HOSE

90460-01176-00

Unavailable

23

STAY, CHAIN CASE 1

(5A8-22321-00-00)

Unavailable

24

BOLT, CHAIN CASE 2

5A8-22334-00-00

Unavailable

25

O-RING (341)

93210-32172-00

Unavailable

26

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable
