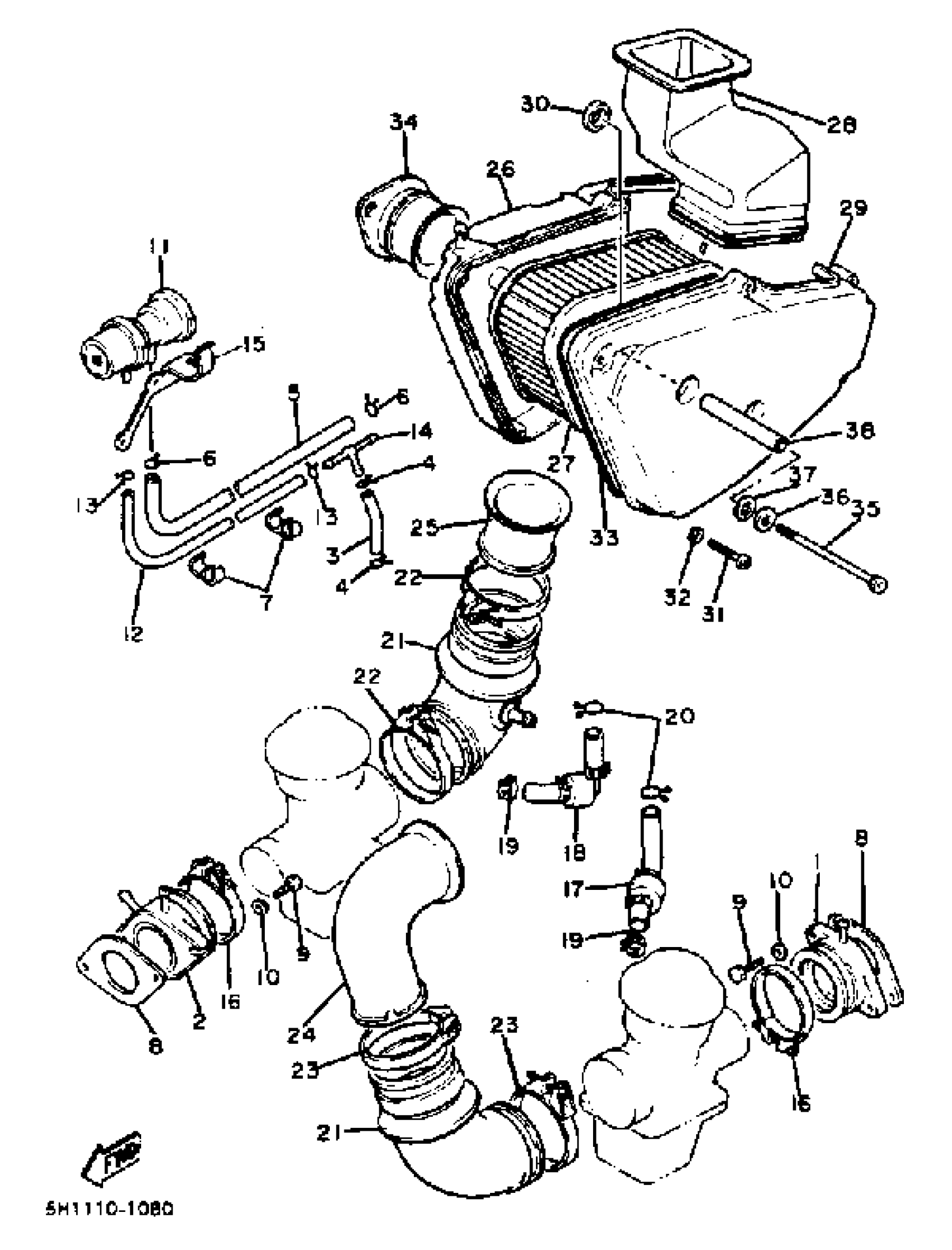

Yamaha XV920RJ (XV920RJ) 1982 INTAKE Diagram

#

Description
Price

1

JOINT, CARB (LH-4X7) (10L-13586-00)

99999-01416-00

Unavailable

2

JOINT, CARB (RH-4X7) (10L-13596-00)

99999-01417-00

Unavailable

3

. HOSE, VAC SENSING 2

4X7-13544-00-00

Unavailable

4

CLIP 101235600

90467-08003-00

$10.49

5

HOSE, AIR

4X7-13543-01-00

Unavailable

6

CLIP

90467-100A1-00

$7.49

7

CLIP

90468-02111-00

Unavailable

8

GASKET, MANIFOLD

4X7-13556-09-00

$9.99

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

VALVE, MIX CONTROL

4X7-13541-00-00

Unavailable

12

HOSE, VAC SENSING 1

4X7-13542-00-00

Unavailable

13

CLIP (1J7)

90467-07029-00

$2.39

14

JOINT, CARBURETOR

4X7-13595-00-00

Unavailable

15

CLAMP

90462-08093-00

Unavailable

16

HOSE CLAMP ASSY

90450-62006-00

Unavailable

17

PIPE, AIRVENT

4X7-14197-02-00

Unavailable

18

HOSE

4X7-14987-02-00

Unavailable

19

CLIP (5K4)

90467-14057-00

Unavailable

20

CLIP (371)

90467-14015-00

Unavailable

21

JOINT, AIR CLEANER 1

4X7-14453-01-00

Unavailable

22

CLAMP, HOSE 1

1D6-11387-00-00

Unavailable

23

CLAMP, HOSE 1

1D6-11387-00-00

Unavailable

24

FUNNEL, AIR

4X7-14469-00-00

Unavailable

25

FUNNEL

4X7-14479-00-00

Unavailable

26

AIR CLEANER CASE ASSEMBLY

4X7-14401-00-00

Unavailable

27

ELEMENT, AIR CLEANER

4X7-14451-00-00

Unavailable

28

DUCT

5A8-14437-00-00

Unavailable

29

CAP, CLEANER CASE 2

4X7-14422-00-00

Unavailable

30

SEAL

4X7-14457-00-00

Unavailable

31

SCREW, PAN HEAD

98517-05030-00

Unavailable

32

WASHER, PLAIN (646)

92990-05600-00

Unavailable

33

SEAL

1VJ-14462-00-00

Unavailable

34

PIPE, SILENCER

4X7-1441J-00-00

Unavailable

35

BOLT,SOCKET HEAD

91311-06100-00

Unavailable

36

WASHER, PLATE

90201-10049-00

Unavailable

37

WASHER, PLATE (5E3)

90202-10120-00

Unavailable

38

SPACER

90560-06203-00

Unavailable
