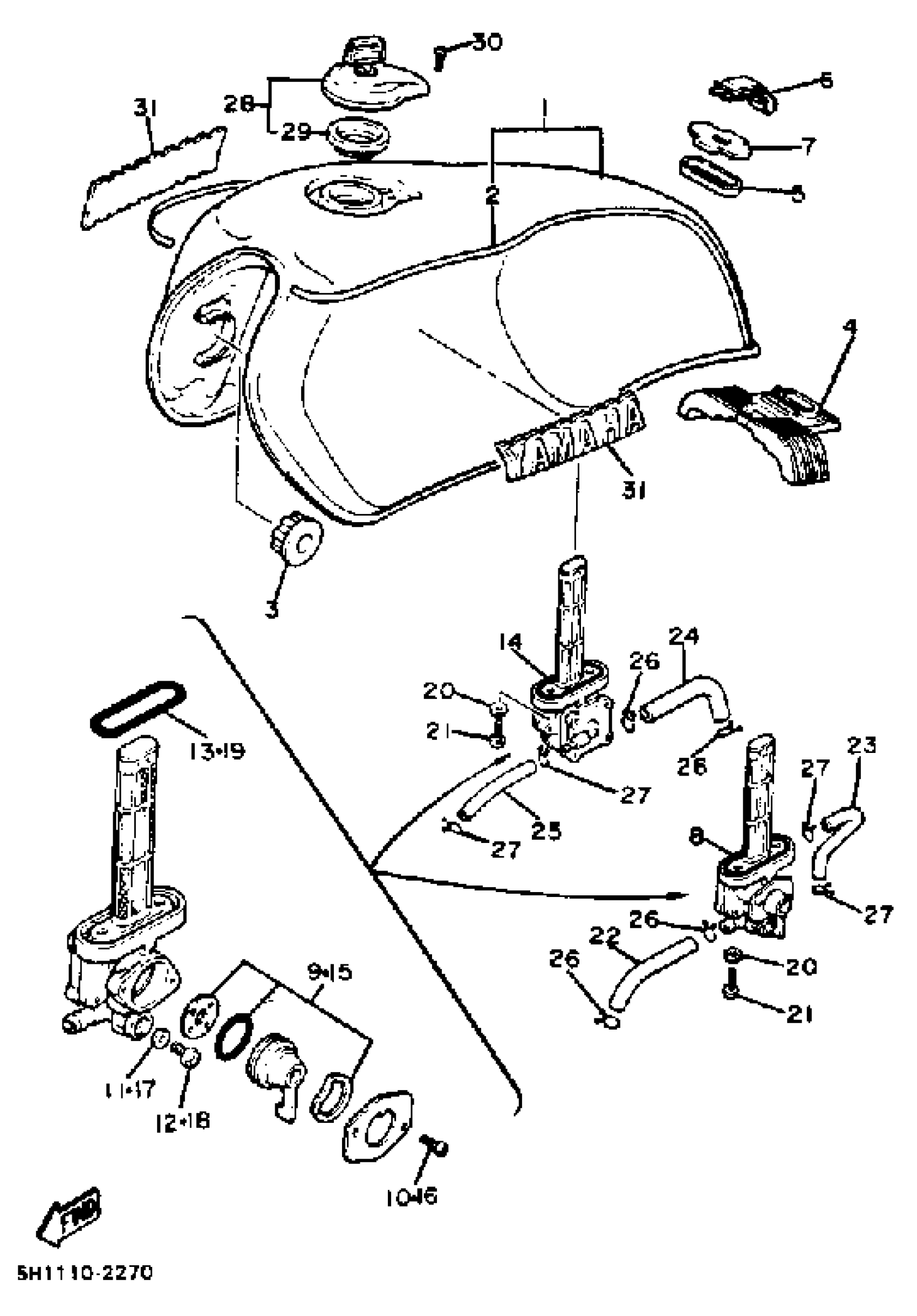

Yamaha XV920RJ (XV920RJ) 1982 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

5A8-24110-00-01

Unavailable

2

. GRAPHIC SET

5H1-24240-00-00

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

5A8-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

6

CLIP

4X7-2411M-00-00

Unavailable

7

WASHER, SPECIAL

4K0-24186-00-00

Unavailable

8

FUEL COCK ASSY 1

10L-24500-09-00

$158.99

9

FUEL COCK VALVE SET

10L-W0092-00-00

$29.99

10

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

11

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

12

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

13

O-RING

2W6-24512-00-00

$7.99

14

FUEL COCK ASSY 1

10L-24500-09-00

$158.99

15

FUEL COCK VALVE SET

10L-W0092-00-00

$29.99

16

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

17

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

18

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

19

O-RING

2W6-24512-00-00

$7.99

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

HOSE (L120)

90445-113E8-00

Unavailable

23

HOSE (L770)

90445-090G9-00

Unavailable

24

PIPE, FUEL 1

29L-24311-00-00

Unavailable

25

HOSE (L770)

90445-090G9-00

Unavailable

26

CLIP

90467-100A1-00

Unavailable

27

CLIP 101235600

90467-08003-00

Unavailable

28

CAP ASSY

4X7-24602-10-00

Unavailable

29

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

30

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

31

EMBLEM 1

3X0-24161-01-00

Unavailable
