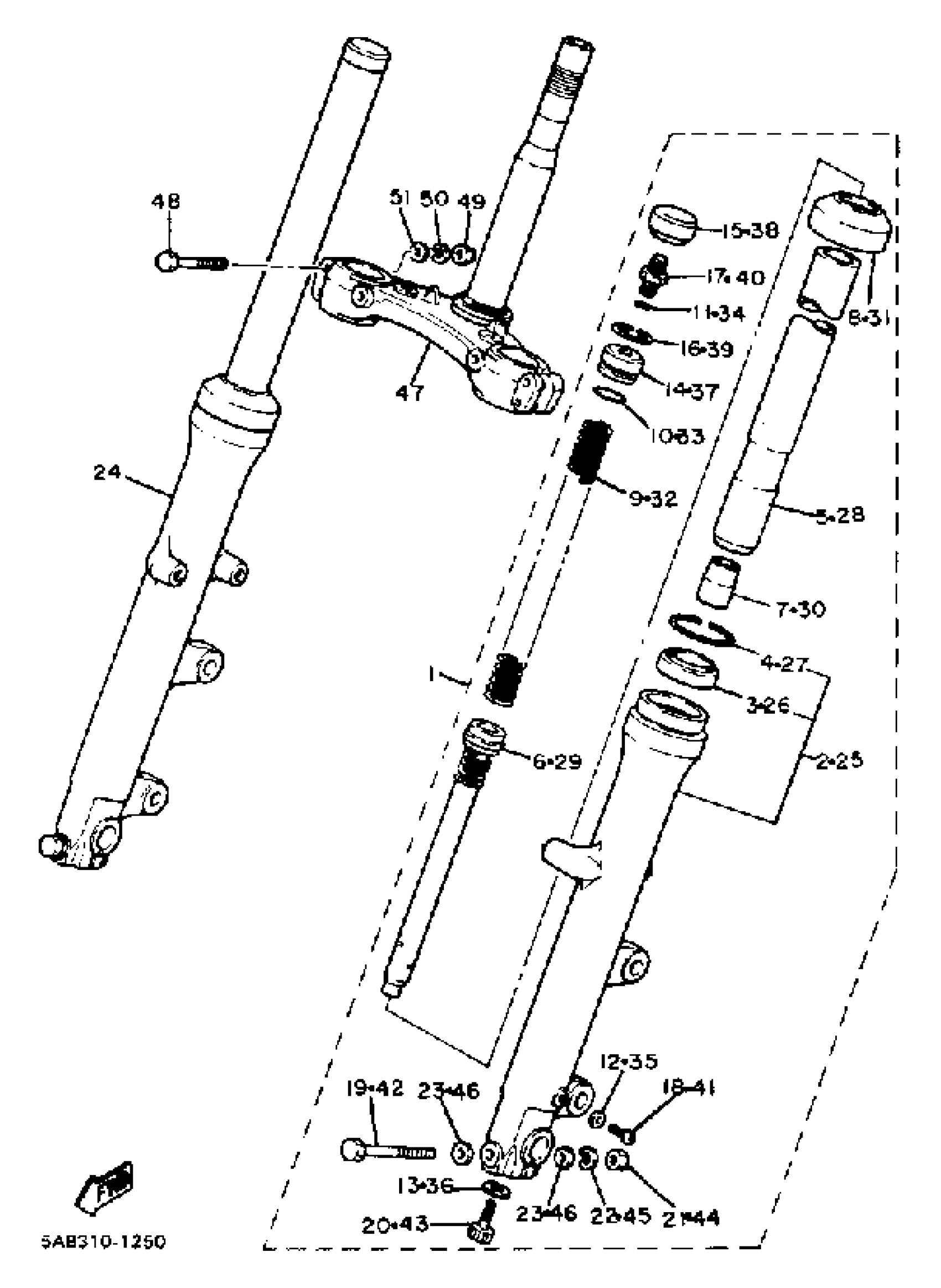

Yamaha XV920RJ (XV920RJ) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

5K0-23102-00-00

Unavailable

2

TUBE, OUTER 1

(5A8-23126-00-00)

Unavailable

3

OIL SEAL

41Y-23145-00-00

$33.99

4

RING, SNAP

3R4-23153-00-00

$8.99

5

. INNER TUBE 1

5A8-23110-00-00

Unavailable

6

. CYLINDER, FRTFRK

4K0-23170-00-00

Unavailable

7

TAPER SPINDLE

1W1-23173-L0-00

$31.99

8

SEAL, DUST

3H5-23144-00-00

$33.99

9

SPRING, FRONT FORK

(5A8-23141-00-00)

Unavailable

10

O-RING

3J2-23114-00-00

$8.99

11

O-RING

3J2-23147-00-00

$9.99

12

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

13

GASKET

509-23158-L0-00

$16.49

14

. BOLT, CAP

3J2-23111-00-00

Unavailable

15

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

16

RING, SNAP

3J2-23183-00-00

Unavailable

17

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

18

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

19

BOLT, HEXAGON

97017-08060-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

FRONT FORK ASSEMBLY R (R.H)

5A8-23103-00-00

Unavailable

25

. TUBE, OUTER 2

5A8-23136-00-00

Unavailable

26

OIL SEAL

41Y-23145-00-00

$33.99

27

RING, SNAP

3R4-23153-00-00

$8.99

28

. INNER TUBE 1

5A8-23110-00-00

Unavailable

29

. CYLINDER, FRTFRK

4K0-23170-00-00

Unavailable

30

TAPER SPINDLE

1W1-23173-L0-00

$31.99

31

SEAL, DUST

3H5-23144-00-00

$33.99

32

SPRING, FRONT FORK

(5A8-23141-00-00)

Unavailable

33

O-RING

3J2-23114-00-00

$8.99

34

O-RING

3J2-23147-00-00

$9.99

35

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

36

GASKET

509-23158-L0-00

$16.49

37

. BOLT, CAP

3J2-23111-00-00

Unavailable

38

. CAP, FRONT FORK

4X7-23168-00-00

Unavailable

39

RING, SNAP

3J2-23183-00-00

Unavailable

40

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

41

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

42

BOLT, HEXAGON

97017-08060-00

Unavailable

43

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

44

NUT(6L2)

95333-08600-00

Unavailable

45

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

46

.. WASHER, PLATE

92990-08600-00

Unavailable

47

UNDER BRACKET

5A8-23340-10-00

Unavailable

48

BOLT (1E6)

90101-08340-00

Unavailable

49

NUT, CROWN

95303-08800-00

Unavailable

50

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

51

.. WASHER, PLATE

92990-08600-00

Unavailable
