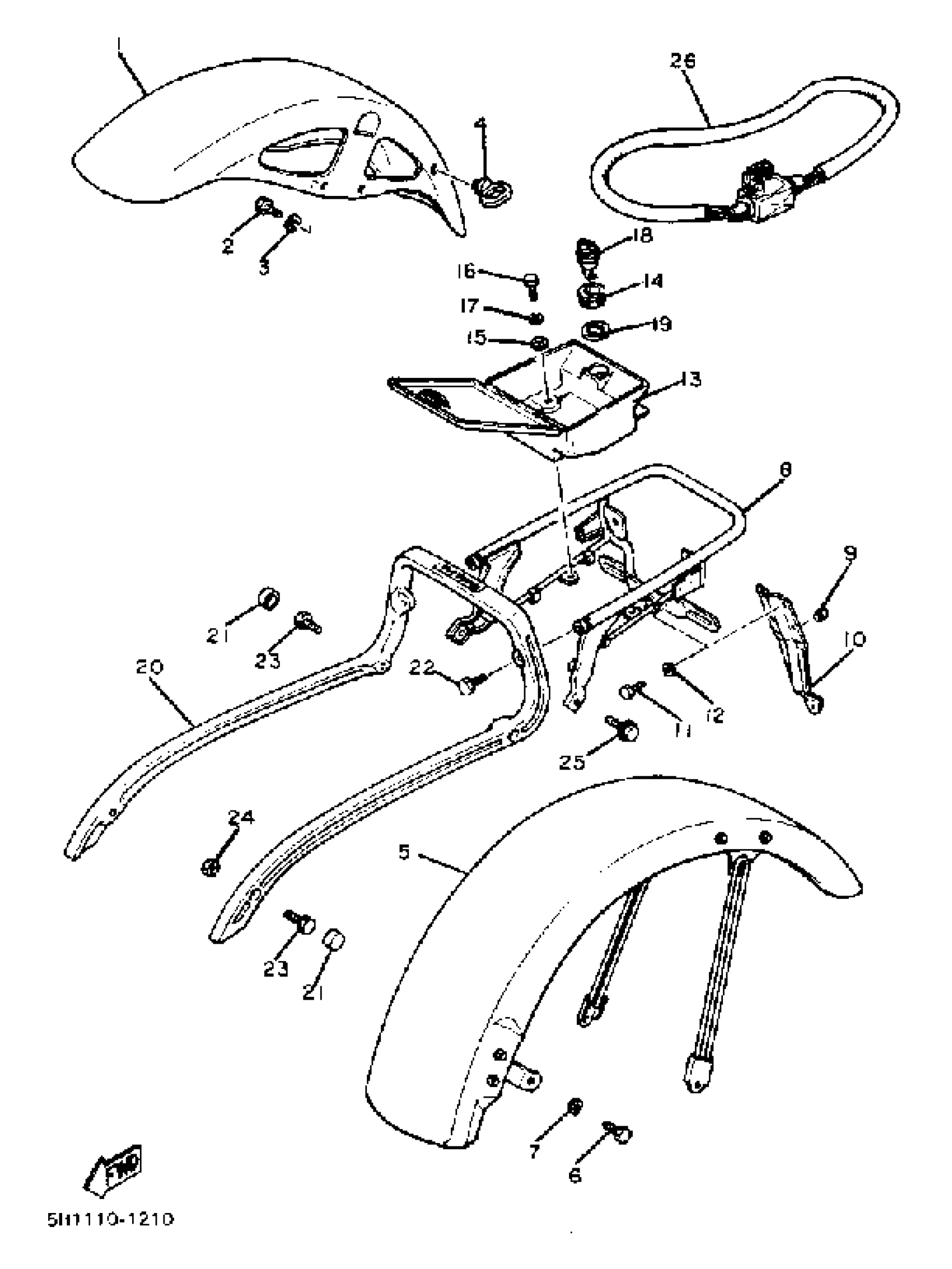

Yamaha XV920RJ (XV920RJ) 1982 FENDER CARRIER Diagram

#

Description
Price

1

FENDER, FRONT

5A8-21510-00-1U

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

5A8-21610-00-98

Unavailable

6

BOLT(JA9)

90101-08691-00

$4.29

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

CARRIER ASSEMBLY

5H1-24810-01-98

Unavailable

9

DAMPER 2

5A8-21639-00-00

Unavailable

10

BRACKET, REFLECTOR

5H1-21641-00-00

Unavailable

11

BOLT, HEXAGON

97017-06012-00

$3.76

12

WASHER, SPRING

92907-06100-00

$4.25

13

BOX

5A8-21248-00-00

Unavailable

14

GROMMET (1E6)

90480-24186-00

$8.49

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

BOLT, HEXAGON

97017-06016-00

Unavailable

17

WASHER, SPRING

92907-06100-00

$4.25

18

SIDE COVER LOCK ASSY

5A8-21708-00-00

Unavailable

19

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

20

STAY, REAR

5A8-21645-00-00

Unavailable

21

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

22

BOLT, SOCKET

91317-08016-00

Unavailable

23

BOLT,SOCKET

91317-08040-00

Unavailable

24

NUT(55X)

90179-08491-00

Unavailable

25

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

26

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable
