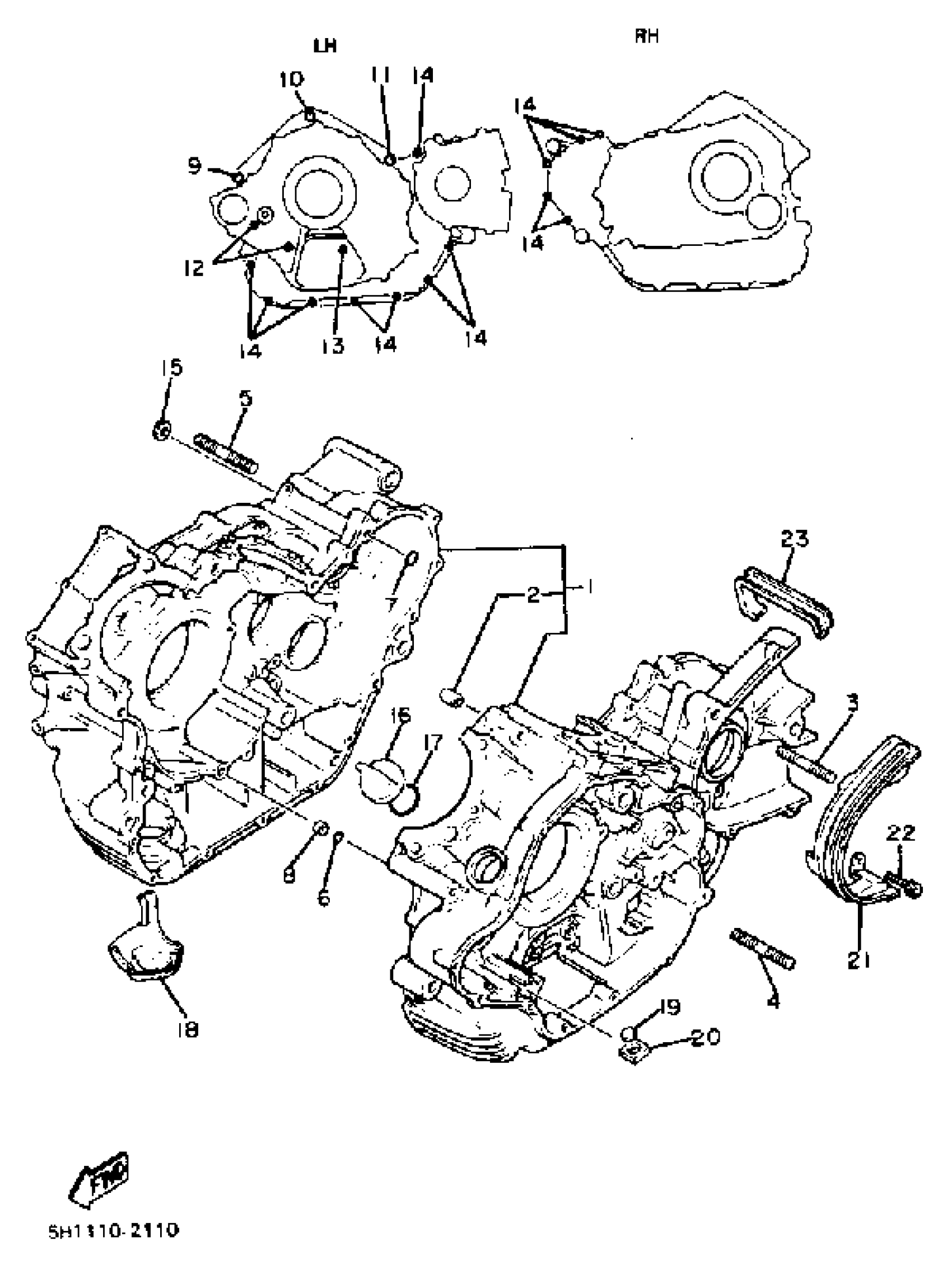

Yamaha XV920RJ (XV920RJ) 1982 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(5H1-15100-01-00)

Unavailable

2

PIN, DOWEL

99530-14016-00

$3.80

3

BOLT, STUD

(95611-10650-00)

Unavailable

4

BOLT, STUD

95617-10630-00

Unavailable

5

BOLT, STUD

(95611-10635-00)

Unavailable

6

O-RING

93210-07438-00

$8.49

7

O-RING

93210-07438-00

$8.49

8

COLLAR

90387-06704-00

Unavailable

9

BOLT, SOCKET

91317-10100-00

$8.49

10

BOLT,SOCKET

91317-10070-00

Unavailable

11

BOLT,SOCKET

91314-10060-00

Unavailable

12

BOLT, SOCKET

91314-06080-00

$3.88

13

BOLT,SOCKET

91314-06055-00

$8.49

14

BOLT, SOCKET

91314-06030-00

$8.49

15

GASKET 256113960000

90430-06014-00

Unavailable

16

PLUG, OIL

371-15363-00-00

Unavailable

17

O-RING (371)

93210-29198-00

Unavailable

18

PROTECTOR

4X7-15491-00-00

Unavailable

19

PLUG

4X7-13419-00-00

Unavailable

20

GROMMET

90480-20302-00

Unavailable

21

PROTECTOR

5A8-15493-01-00

Unavailable

22

BOLT,SOCKET

91317-06016-00

Unavailable

23

CLAMP

(90465-08171-00)

Unavailable
