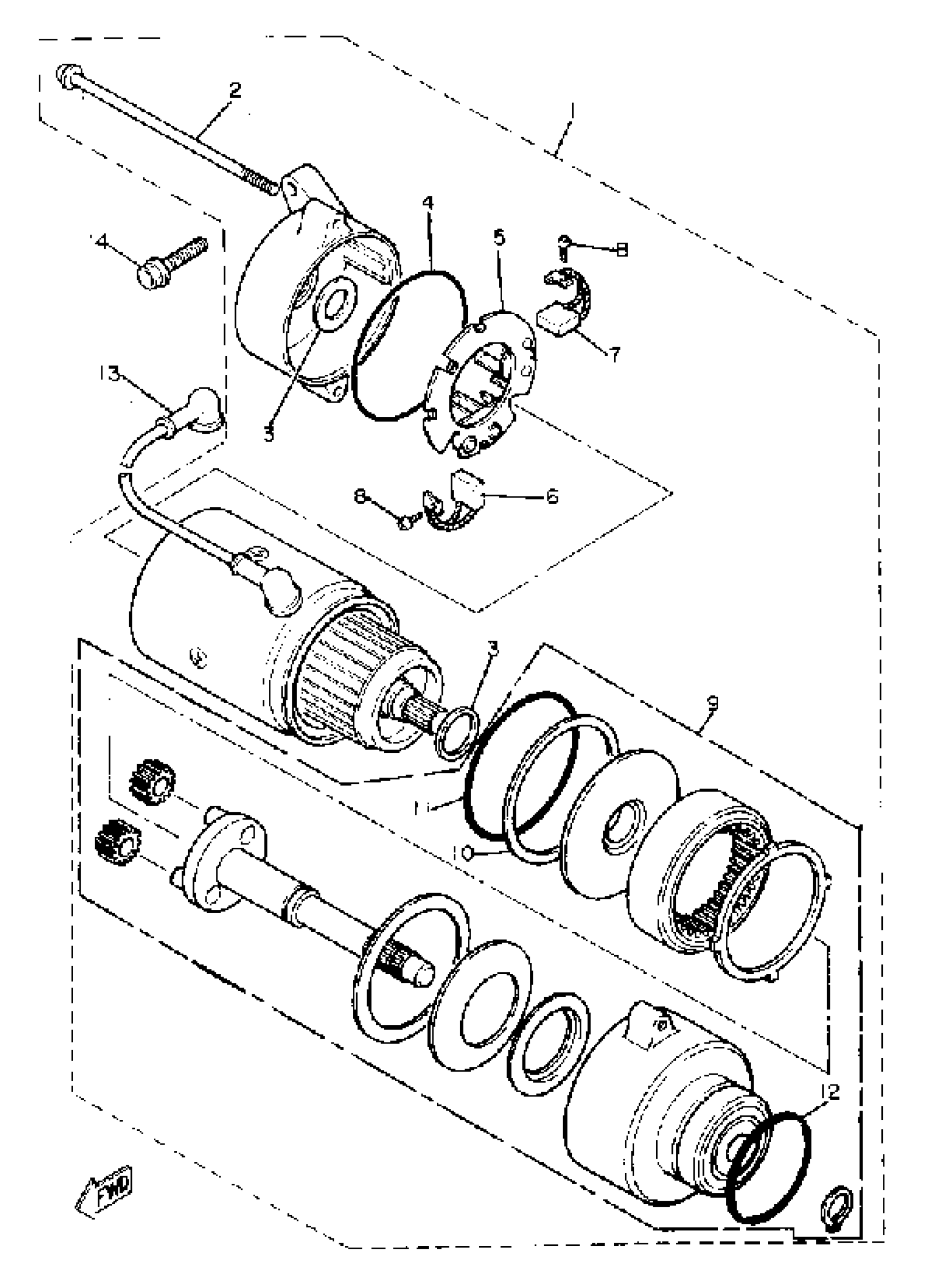

Yamaha XV920RH (XV920RH) 1981 STARTING MOTOR Diagram

#

Description

Price

1

STARTING MOTOR UNIT

42X-81890-00-00

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

371-81826-00-00

Unavailable

3

. WASHER KIT

371-81809-20-00

Unavailable

4

.. O-RING

371-81847-20-00

Unavailable

5

. BRUSH HOLDER ASSEMBLY

1J7-81840-60-00

Unavailable

6

BRUSH 1

371-81811-20-00

Unavailable

7

BRUSH 2

371-81812-20-00

Unavailable

8

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

9

. FRONT BRACKET ASSEMBLY

4X7-81830-60-00

Unavailable

10

.. GASKET

4X7-81844-60-00

Unavailable

11

.. O-RING

371-81847-20-00

Unavailable

12

O-RING

1J7-81847-60-00

$38.99

13

COVER, LEAD WIRE

6G5-82119-10-00

Unavailable

14

BOLT, FLANGE

95817-06025-00

Unavailable
