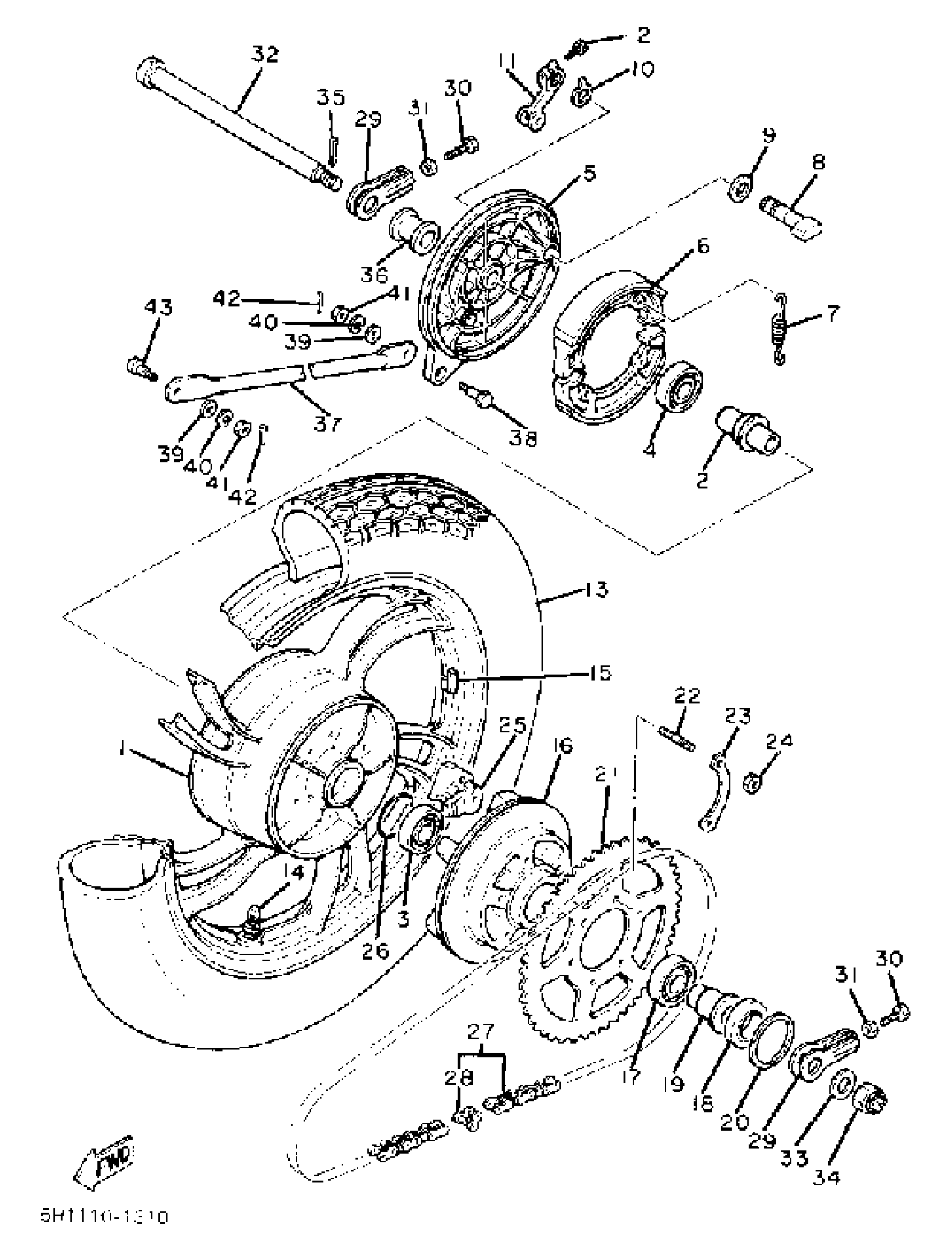

Yamaha XV920RH (XV920RH) 1981 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR (5H1-25338-20-98)

5H1-25338-29-98

Unavailable

2

SPACER

90560-20135-00

Unavailable

3

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

4

BEARING(3BC)

93306-30437-00

$66.99

5

PLATE, BRAKE SHOE

(5A8-25321-00-98)

Unavailable

6

BRAKE SHOE KIT

3DR-W253E-00-00

$42.99

7

SPRING, TENSION 2462533300

90507-20002-00

$8.49

8

CAMSHAFT

4H7-25351-00-00

$44.99

9

WASHER, PLATE (3X3)

90201-15797-00

$9.49

10

PLATE, INDICATOR

4H7-2533A-02-00

$8.99

11

LEVER, CAMSHAFT

1L9-25355-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

120/90-18 S716 TL (120/90-18)

94112-18470-00

Unavailable

14

VALVE, RIM (31A)

93900-00031-00

$16.99

15

BALANCER, WHEEL

5MT-25398-00-00

$17.49

15

BALANCER, WHEEL

5MT-25398-00-00

$17.49

15

BALANCER, WHEEL

5MT-25398-00-00

$17.49

16

CLUTCH, HUB

(5A8-25366-00-00)

Unavailable

17

BEARING

93306-20624-00

Unavailable

18

OIL SEAL, S-TYPE

93101-38100-00

Unavailable

19

COLLAR

90387-203E4-00

Unavailable

20

CIRCLIP(MF1)

99009-62500-00

Unavailable

21

SPROCKET, DRIVN 35T (35T)

5A8-25435-20-00

Unavailable

22

BOLT, STUD (537 HUB)

90116-10221-00

Unavailable

23

WASHER, LOCK

256-25412-00-00

Unavailable

24

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

25

DAMPER

2GH-25364-00-00

Unavailable

26

O-RING(2HJ)

93210-65752-00

Unavailable

27

CHAIN 630DS-90L (DID630DS-90L)

94580-29090-00

Unavailable

28

. JOINT, CHAIN

94680-29031-00

Unavailable

29

PULLER, CHAIN 1

5A8-25388-00-00

Unavailable

30

BOLT

90101-10507-00

Unavailable

31

NUT (682)

95380-10700-00

Unavailable

32

AXLE, WHEEL

(5A8-25381-00-00)

Unavailable

33

WASHER (6E5)

92990-18200-00

Unavailable

34

NUT, CASTLE

90171-18043-00

Unavailable

35

PIN, COTTER

91490-40045-00

Unavailable

36

COLLAR

(90387-203E5-00)

Unavailable

37

BAR, TENSION

4X7-25371-00-00

Unavailable

38

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

39

.. WASHER, PLATE

92990-08600-00

Unavailable

40

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

41

. NUT

95380-08700-00

Unavailable

42

PIN, COTTER

91490-20025-00

Unavailable

43

BOLT (183-25378-00)

90109-08368-00

Unavailable
