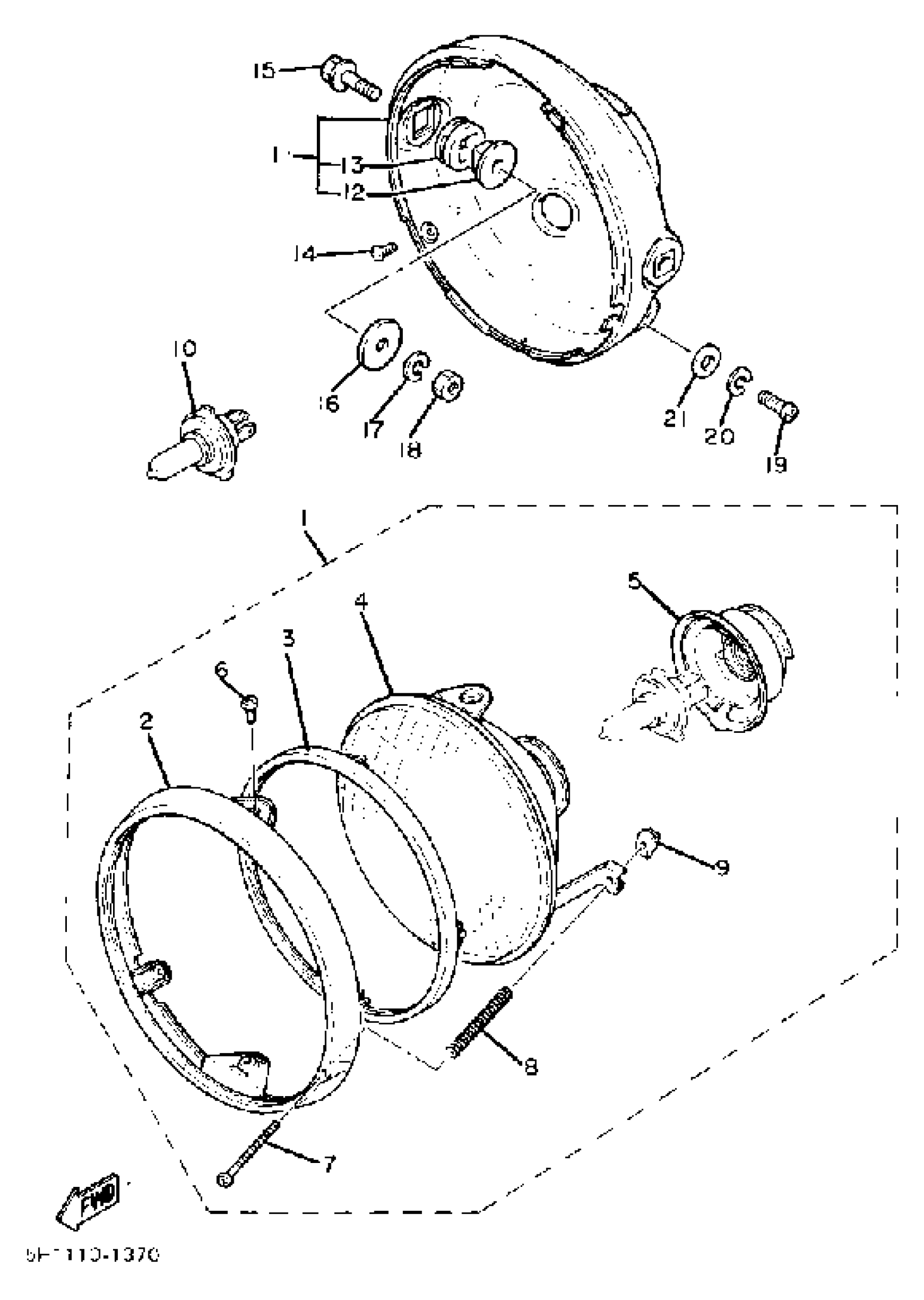

Yamaha XV920RH (XV920RH) 1981 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY (5H1-84303-A0)

5H1-84303-A1-00

Unavailable

2

. RIM, HEADLIGHT

5A8-84315-00-00

Unavailable

3

. RING, RETAINING

4E2-84395-00-00

Unavailable

4

. LENS, HEADLIGHT (5H1-84321-A0)

5H1-84321-A1-00

Unavailable

5

. COVER, SOCKET

4E2-84397-00-00

Unavailable

6

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

7

. SCREW, RIM ADJUSTING

447-84331-61-00

Unavailable

8

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

9

NUT, ADJUST

198-84334-60-00

$7.99

10

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

11

BODY ASSEMBLY

5A8-84330-00-33

Unavailable

12

COLLAR 2

584-84338-60-00

$21.99

13

DAMPER, HEAD LAMP

584-84345-60-00

$9.99

14

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

15

BOLT

90109-08448-00

Unavailable

16

WASHER

90209-08008-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

NUT(6L2)

95333-08600-00

Unavailable

19

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

WASHER, PLATE 8221447500

90201-06057-00

Unavailable
