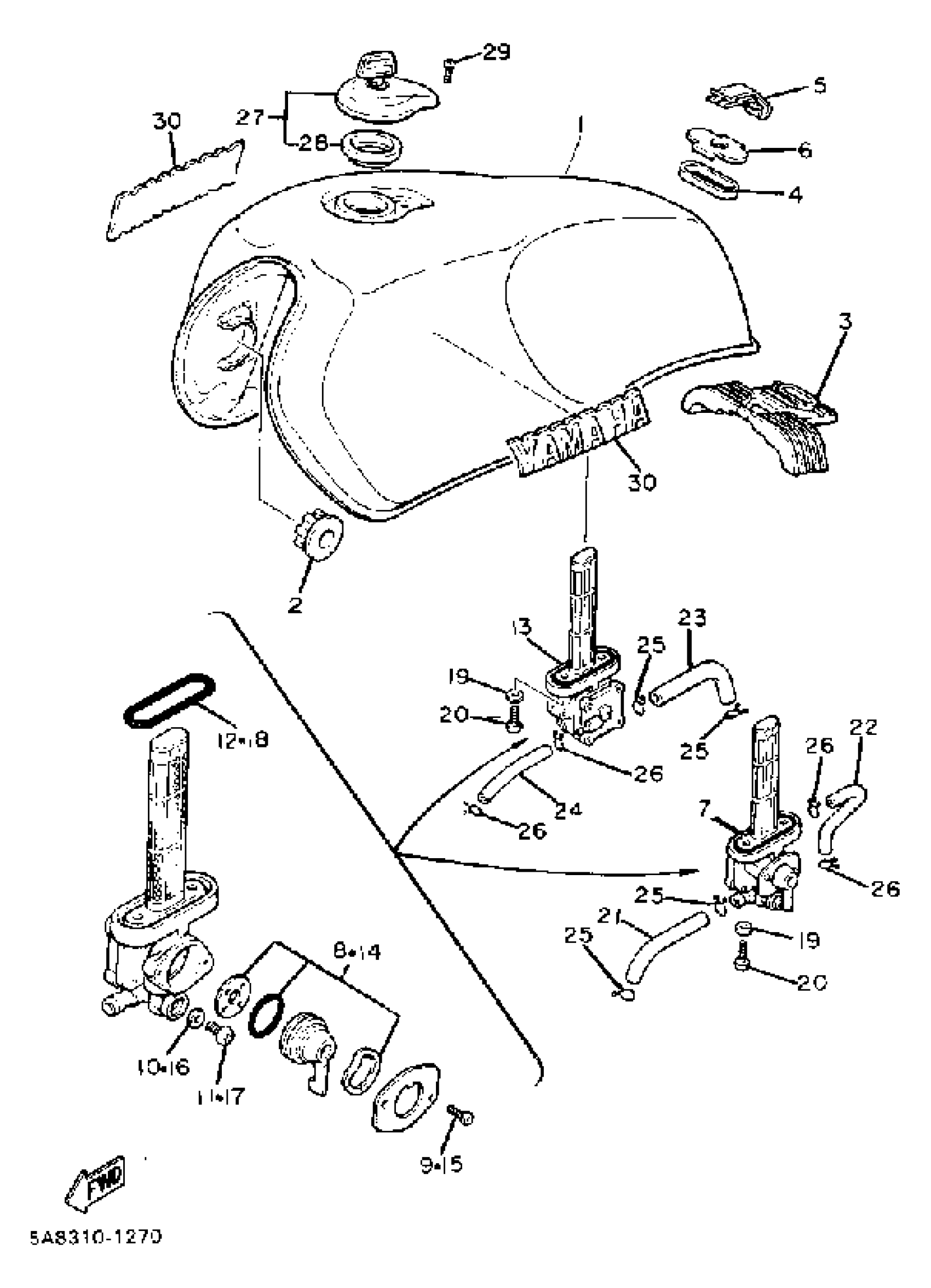

Yamaha XV920RH (XV920RH) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

5A8-24110-00-63

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

DAMPER, LOCATING 2

5A8-24182-00-00

Unavailable

4

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

5

CLIP

4X7-2411M-00-00

Unavailable

6

WASHER, SPECIAL

4K0-24186-00-00

Unavailable

7

FUEL COCK ASSY 1

10L-24500-09-00

$158.99

8

FUEL COCK VALVE SET

10L-W0092-00-00

$29.99

9

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

10

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

11

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

12

O-RING

2W6-24512-00-00

$7.99

13

FUEL COCK ASSY 1

10L-24500-09-00

$158.99

14

FUEL COCK VALVE SET

10L-W0092-00-00

$29.99

15

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

16

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

17

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

18

O-RING

2W6-24512-00-00

$7.99

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

SCREW 256241430000

90149-06011-00

Unavailable

21

HOSE (L120)

90445-113E8-00

Unavailable

22

HOSE (L770)

90445-090G9-00

Unavailable

23

PIPE, FUEL 1

29L-24311-00-00

Unavailable

24

HOSE (L770)

90445-090G9-00

Unavailable

25

CLIP

90467-100A1-00

Unavailable

26

CLIP 101235600

90467-08003-00

Unavailable

27

CAP ASSY

4X7-24602-10-00

Unavailable

28

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

29

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

30

EMBLEM 1

3X0-24161-01-00

Unavailable
