CARBURETOR

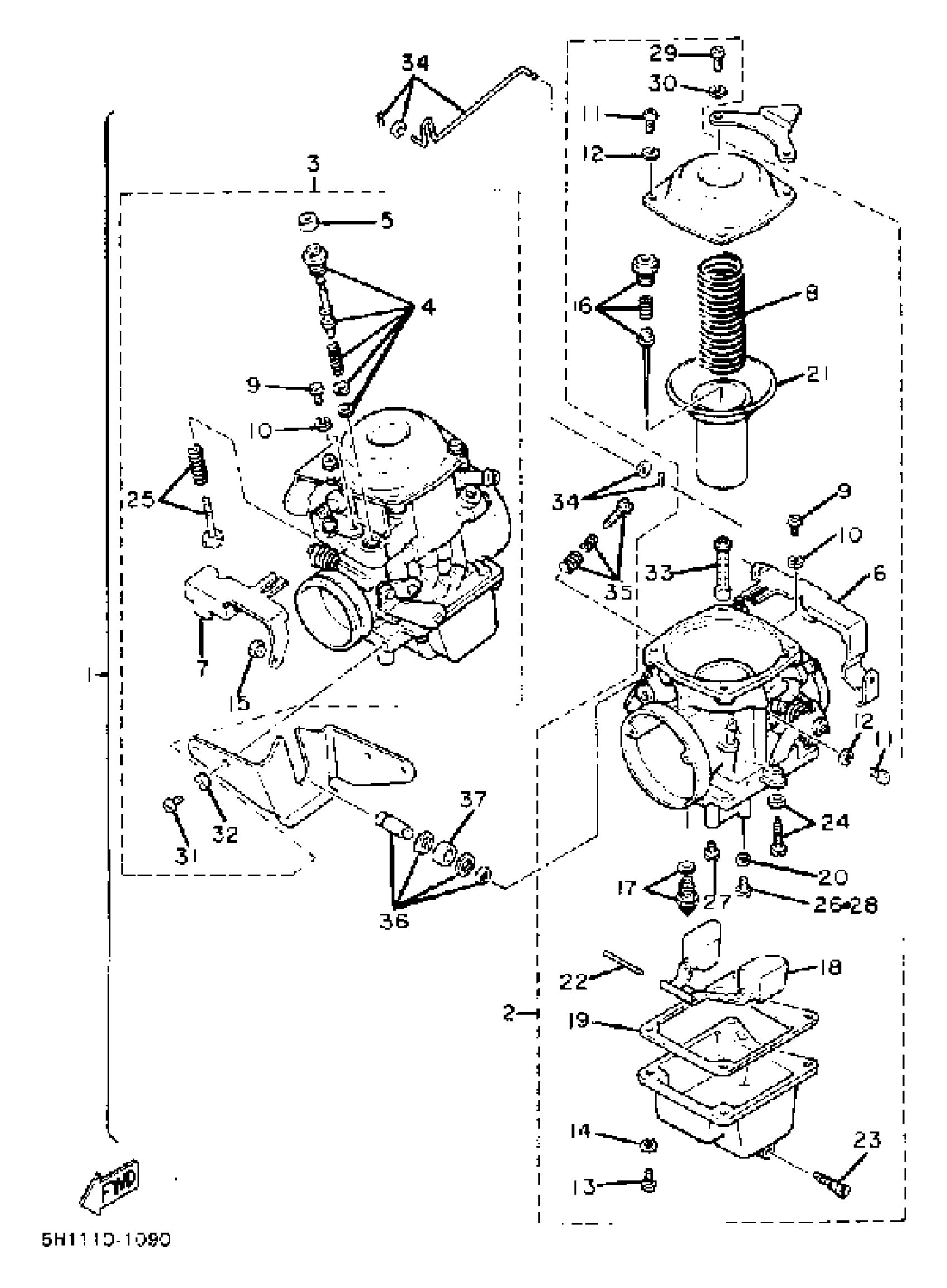

Yamaha XV920RH (XV920RH) 1981 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(5H1-14900-00-00)
Unavailable
2
CARBURETOR ASSEMBLY 1
(5H1-14901-00-00)
Unavailable
3
. CARBURETOR ASSEMBLY 2
5H1-14902-00-00
Unavailable
4
.. PLUNGER, STARTER
4X7-14371-01-00
Unavailable
5
.. COVER, PLUNGER CAP
4H7-14173-00-00
Unavailable
6
LEVER, STARTER 1
(4X7-14975-00-00)
Unavailable
7
.. LEVER, STARTER 2
4X7-14976-00-00
Unavailable
8
.. SPRING, DIAPHRAGM
4X7-14933-10-00
Unavailable
11
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
13
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
15
.. NEEDLE
4X7-14916-22-00
Unavailable
15
BUSH
(4X7-14998-00-00)
Unavailable
17
.. NEEDLE VALVE ASSY
10L-14390-02-00
Unavailable
18
.. FLOAT
10L-14985-01-00
Unavailable
19
.. GASKET, FLOAT CHAMBER
4X7-14984-01-00
Unavailable
20
.. WASHER, MAIN JET
4H7-14945-00-00
Unavailable
21
.. DIAPHRAGM ASSEMBLY
4X7-14940-01-00
Unavailable
22
.. PIN, FLOAT
4H7-14186-00-00
Unavailable
23
.. PLUG, DRAIN
4X7-14191-01-00
Unavailable
24
.. SCREW, THROTTLE
4X7-14321-01-00
Unavailable
25
.. SCREW, THROTTLE STOP SPRING 1
4X7-14121-01-00
Unavailable
26
.. JET, MAIN
4X7-14925-26-00
Unavailable
27
.. JET
4X7-14948-41-00
Unavailable
28
.. JET, MAIN (#124)
4X7-14925-24-00
Unavailable
29
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
31
SCREW, PAN
98507-06014-00
Unavailable
32
SCREW, PAN
98507-06014-00
Unavailable
33
.. NOZZLE, MAIN
4X7-14921-32-00
Unavailable
34
. CONNECTOR
4X7-14188-00-00
Unavailable
35
.. SCREW, ADJUST
4X7-14522-01-00
Unavailable
36
. WASHER
4X7-14962-00-00
Unavailable
37
. ROLLER
4X7-14267-00-00
Unavailable
