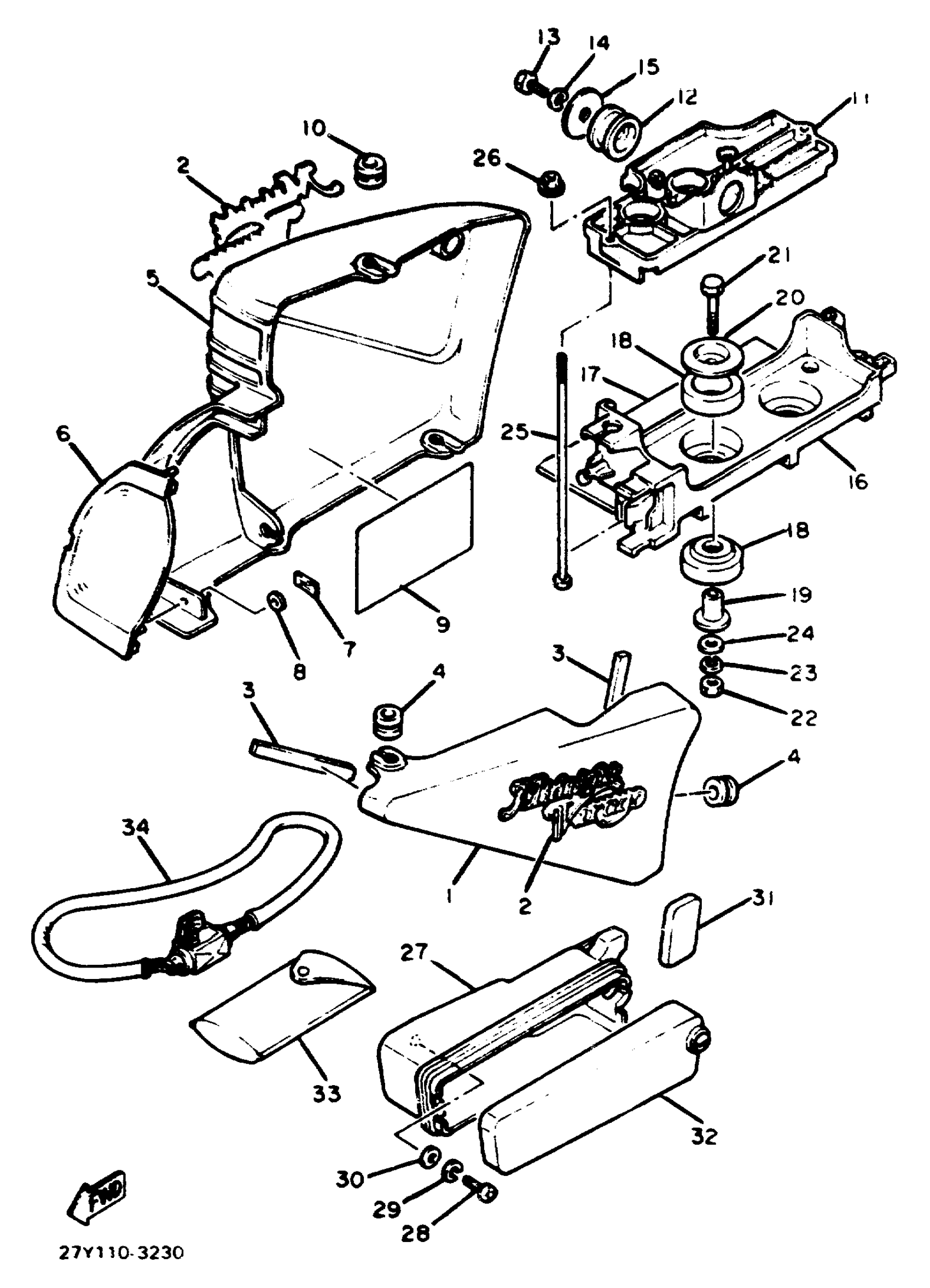

Yamaha XV920MK (XV920MK) 1983 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1 (NEW WHITE)

10L-21711-00-6G

Unavailable

2

EMBLEM 1

20X-21781-00-00

Unavailable

3

DAMPER 2

3FA-21639-00-00

Unavailable

4

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

5

COVER, SIDE 2 (NEW WHITE)

10L-21721-00-6G

Unavailable

6

COVER, SIDE 3

10L-21731-00-00

Unavailable

7

NUT SPRING 116283170100

90183-04005-00

$10.49

8

WASHER PLATE 174283160000

90202-04003-00

$8.49

9

PLATE, SPEC

10L-21683-10-00

Unavailable

10

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

11

BOX, BATTERY

10L-2177G-00-00

Unavailable

12

DAMPER

2H7-21747-00-00

Unavailable

13

BOLT (661)

97013-06012-00

$5.60

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER (23T)

90201-065G8-00

$8.49

16

BOX, TOOL

10L-21171-00-00

Unavailable

17

DAMPER 1

29N-14425-00-00

Unavailable

18

DAMPER

2H7-21746-00-00

Unavailable

19

COLLAR

90387-06166-00

Unavailable

20

WASHER, SPEC''L SHAP

90209-07170-00

Unavailable

21

BOLT (682)

97095-06040-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

BOLT

90101-05496-00

Unavailable

26

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

27

BOX

23W-21248-00-00

Unavailable

28

SCREW, PAN

98507-06014-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

WASHER, PLATE

90201-06M02-00

Unavailable

31

GROMMET

4X7-21719-00-00

Unavailable

32

CAP, TOOL BOX

23W-2179A-00-00

Unavailable

33

TOOL KIT

5A8-W2810-01-00

Unavailable

34

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable
