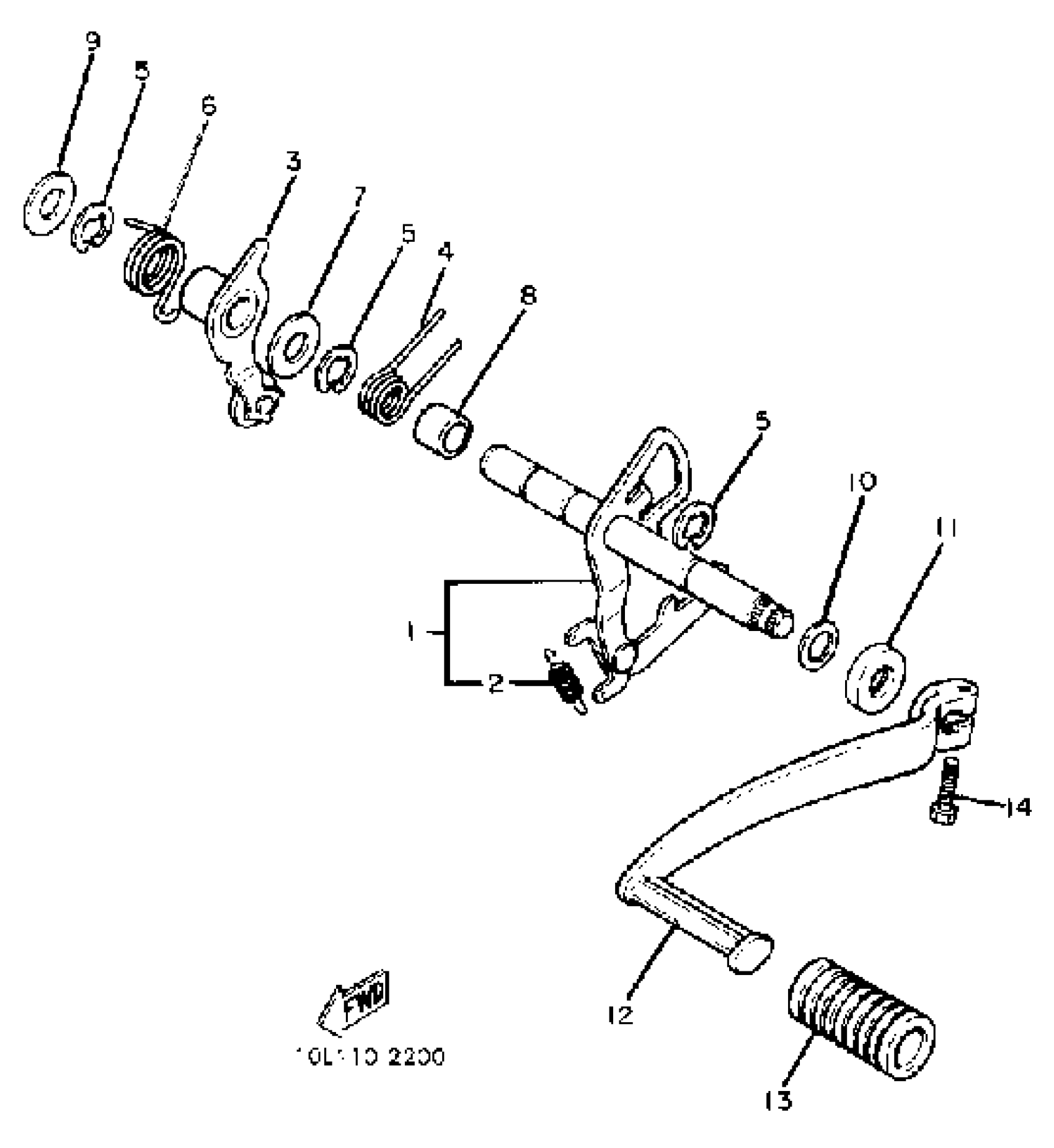

Yamaha XV920MK (XV920MK) 1983 SHIFT SHAFT PEDAL Diagram

#

Description
Price

1

SHIFT LEVER ASSEMBLY

4X7-18120-01-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

STOPPER LEVER ASSY

5EL-18140-00-00

Unavailable

4

SPRING, TORSION (4H7)

90508-32535-00

$10.49

5

CIRCLIP

99006-10600-00

$9.49

6

SPRING, TORSION (4X7)

90508-29531-00

$8.49

7

WASHER

90201-12588-00

$7.49

8

COLLAR

90387-12033-00

$7.49

9

WASHER

90201-12588-00

$7.49

10

WASHER PLATE 164185720000

90201-12166-00

$9.49

11

SEAL, OIL (30X)

93102-12321-00

$12.49

12

PEDAL, SHIFT

4X7-18111-00-00

Unavailable

13

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

14

BOLT, HEXAGON

97017-06020-00

$4.06
