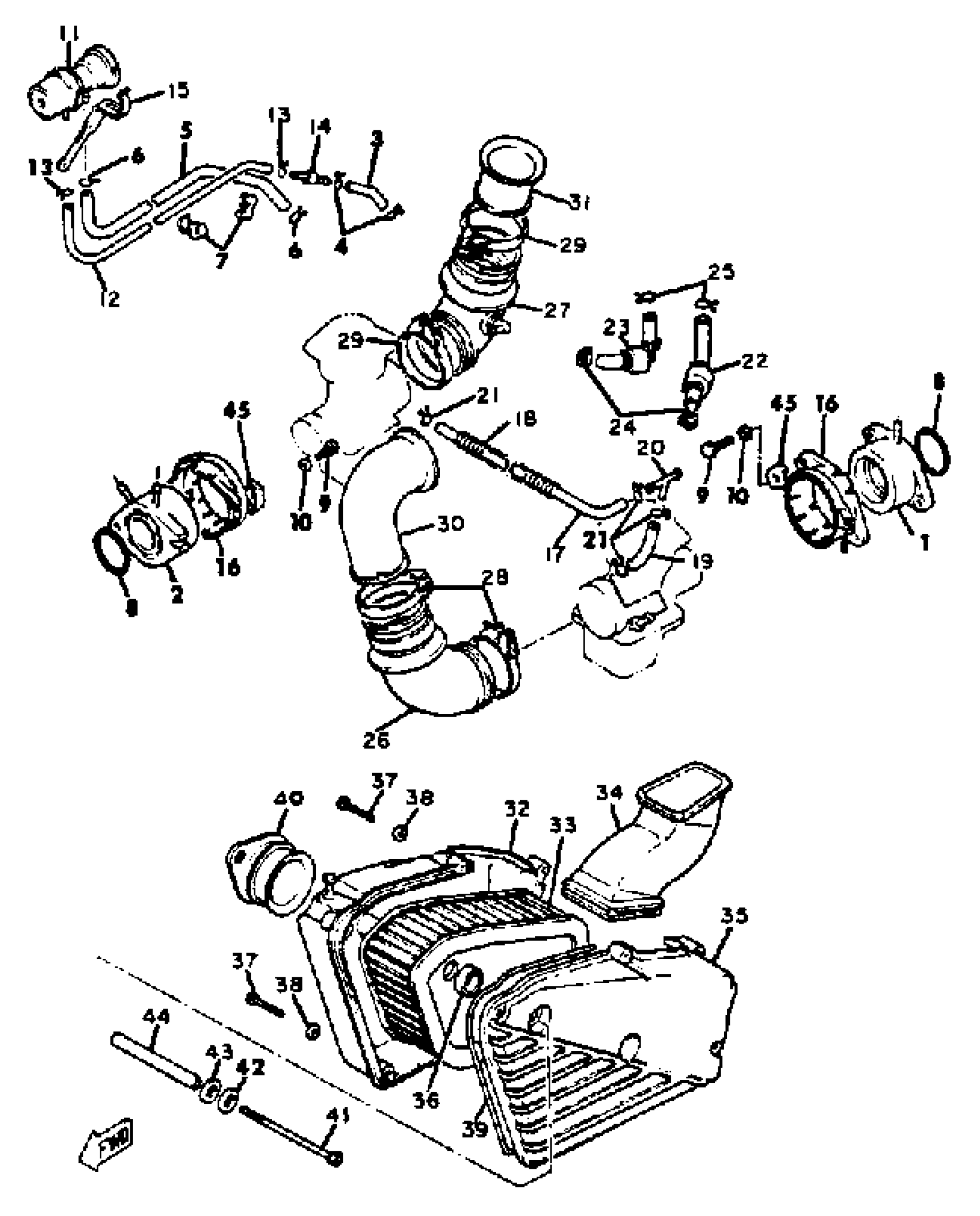

Yamaha XV920MK (XV920MK) 1983 INTAKE Diagram
#
2
JOINT, CARBURETOR 2
24M-13596-01-00
Unavailable
3
. HOSE, VAC SENSING 2
4X7-13544-00-00
Unavailable
5
HOSE, AIR
4X7-13543-01-00
Unavailable
7
CLIP
90468-02111-00
Unavailable
11
VALVE, MIX CONTROL
4X7-13541-00-00
Unavailable
12
HOSE, VAC SENSING 1
4X7-13542-00-00
Unavailable
14
NOZZLE
10L-14489-00-00
Unavailable
15
CLAMP
90462-08092-00
Unavailable
16
COVER, MANIFOLD
42X-13564-01-00
Unavailable
17
HOSE (L400)
90445-116K9-00
Unavailable
18
SPRING, COMPRESSION (27Y)
90501-08728-00
Unavailable
19
HOSE
90445-11734-00
Unavailable
20
WAY 3 (10L)
90413-07007-00
Unavailable
22
PIPE, AIRVENT
4X7-14197-02-00
Unavailable
23
HOSE
4X7-14987-02-00
Unavailable
24
CLIP (5K4)
90467-14057-00
Unavailable
25
CLIP (371)
90467-14015-00
Unavailable
26
JOINT, AIR CLNR 1
4X7-14453-10-00
Unavailable
27
JOINT, AIR CLNR 1
4X7-14453-20-00
Unavailable
28
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
29
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
30
FUNNEL, AIR
4X7-14469-00-00
Unavailable
31
FUNNEL
4X7-14479-00-00
Unavailable
32
AIR CLNR CASE ASSEMBLY
10L-14401-00-00
Unavailable
33
ELEMENT, AIR CLNR
10L-14451-00-00
Unavailable
34
DUCT
10L-14437-00-00
Unavailable
35
CAP, CLEANER CASE 2
10L-14422-00-00
Unavailable
36
SEAL
4X7-14457-00-00
Unavailable
37
SCREW, PAN
98507-05035-00
Unavailable
38
WASHER(1RW)
92907-05600-00
Unavailable
39
SEAL
1VJ-14462-00-00
Unavailable
40
PIPE, SILENCER
4X7-1441J-00-00
Unavailable
41
BOLT,SOCKET HEAD
91311-06100-00
Unavailable
42
WASHER, PLATE
90201-06M02-00
Unavailable
43
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
44
SPACER
90560-06203-00
Unavailable
45
WASHER
42X-13578-00-00
Unavailable
