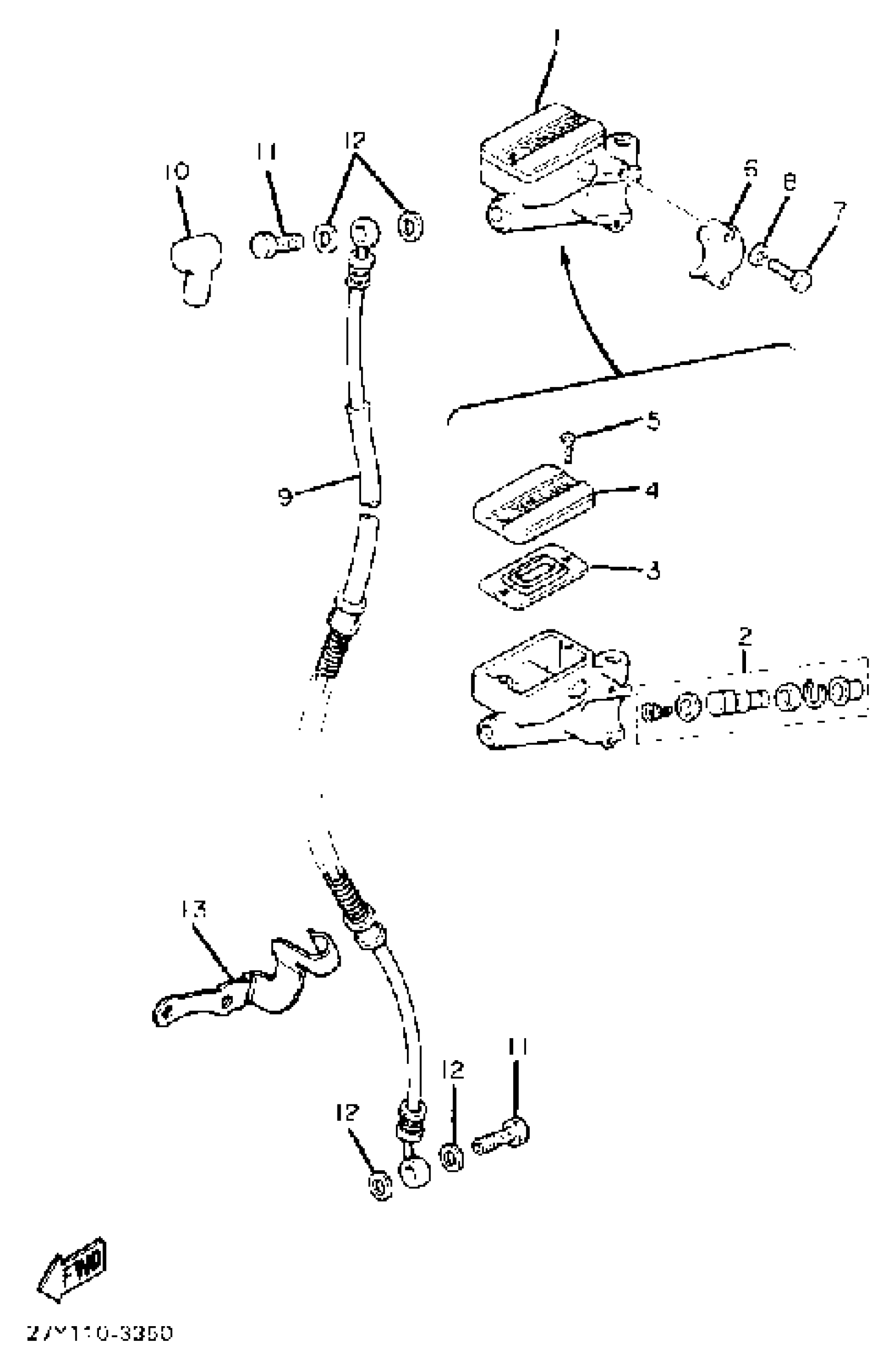

Yamaha XV920MK (XV920MK) 1983 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSEMBLY

4H7-25850-02-00

Unavailable

2

CYLINDER KIT, MASTER

4H7-W0041-00-00

$71.87

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

4H7-25852-00-00

$33.30

5

SCREW, FLAT

98707-04010-00

$5.76

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER, SPRING

92907-06100-00

$0.98

9

HOSE, BRAKE 1

4X7-25872-00-00

Unavailable

10

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

11

BOLT, UNION(3GM)

90401-10159-00

$8.26

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

HOLDER, BRKE HOSE 1

(24M-25875-00-00)

Unavailable
