FRONT FORK

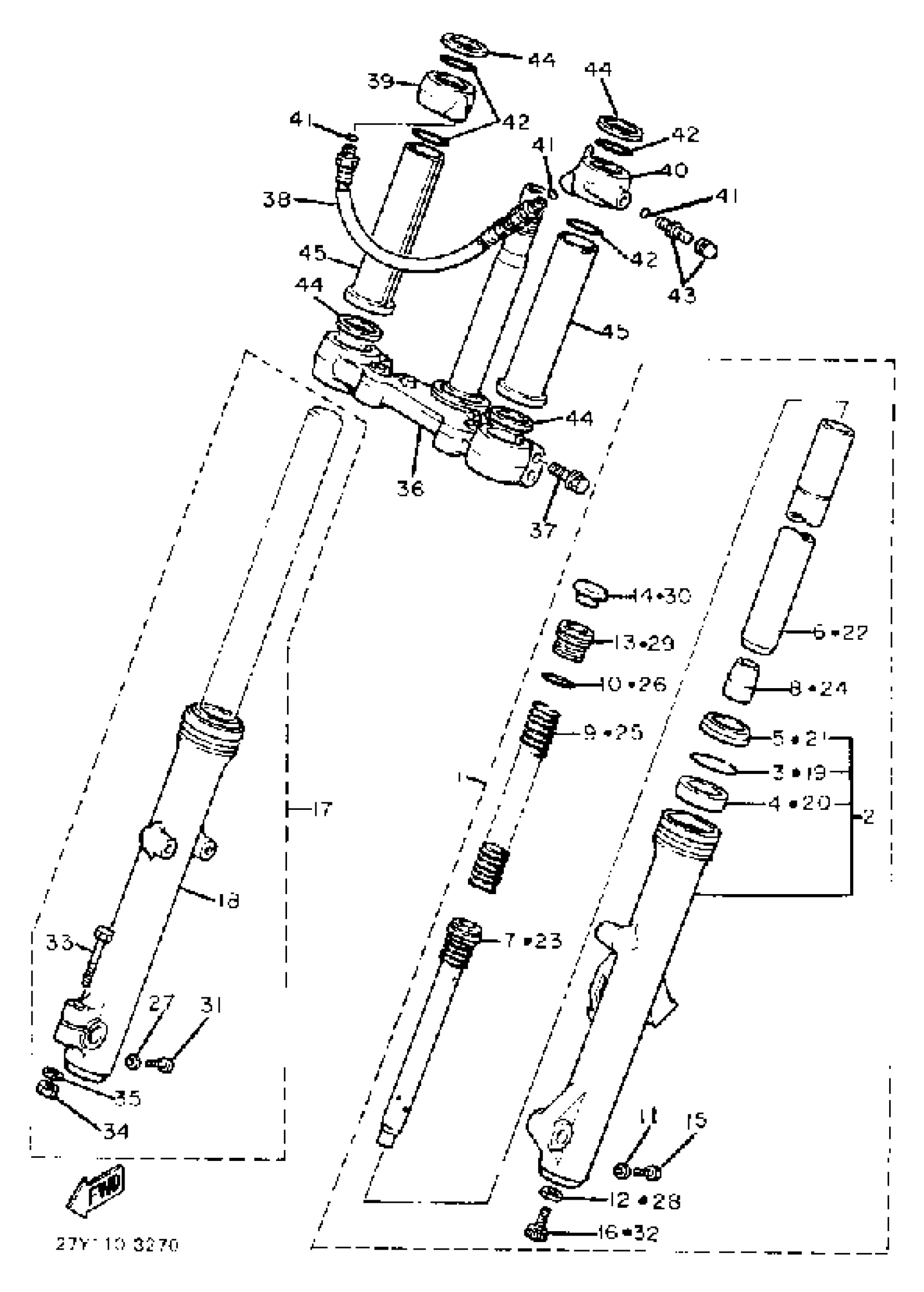

Yamaha XV920MK (XV920MK) 1983 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(27Y-23102-00-00)
Unavailable
2
TUBE, OUTER 1
(4W5-23126-00-6G)
Unavailable
6
. INNER TUBE 1
24M-23110-01-00
Unavailable
7
. CYLINDER, FRTFRK
4K0-23170-00-00
Unavailable
9
. SPRING, FRONT FORK
20X-23141-00-00
Unavailable
13
. BOLT, CAP
11H-23111-00-00
Unavailable
15
PLUG, DRAIN
(4W5-23119-00-00)
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
17
FRONT FORK ASSEMBLY R
(27Y-23103-00-00)
Unavailable
18
. TUBE, OUTER 2 (4H7-23136-00-6G)
4W5-23136-00-6G
Unavailable
22
. INNER TUBE 1
24M-23110-01-00
Unavailable
23
. CYLINDER, FRTFRK
4K0-23170-00-00
Unavailable
25
. SPRING, FRONT FORK
20X-23141-00-00
Unavailable
29
. BOLT, CAP
11H-23111-00-00
Unavailable
31
PLUG, DRAIN
(4W5-23119-00-00)
Unavailable
32
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
33
BOLT(3HN)
97017-08045-00
Unavailable
34
NUT(6TA)
95337-08600-00
Unavailable
35
WASHER(JN5)
92907-08100-00
Unavailable
36
UNDER BRACKET (24M-23340-01-90)
24M-23340-01-00
Unavailable
37
BOLT, AXLE HOLDER
18G-23128-00-00
Unavailable
38
HOSE, AIR
(24M-2318F-01-00)
Unavailable
39
JOINT, AIR
24M-2319A-01-00
Unavailable
40
JOINT, AIR 1
24M-2318A-01-00
Unavailable
41
O-RING
3J2-23147-00-00
Unavailable
42
O-RING
15R-23188-00-00
Unavailable
43
AIR VALVE COMP.
4V4-23190-L0-00
Unavailable
44
WASHER
2H7-23163-00-00
Unavailable
45
COVER, UPPER 2
(27Y-23131-00-6G)
Unavailable
