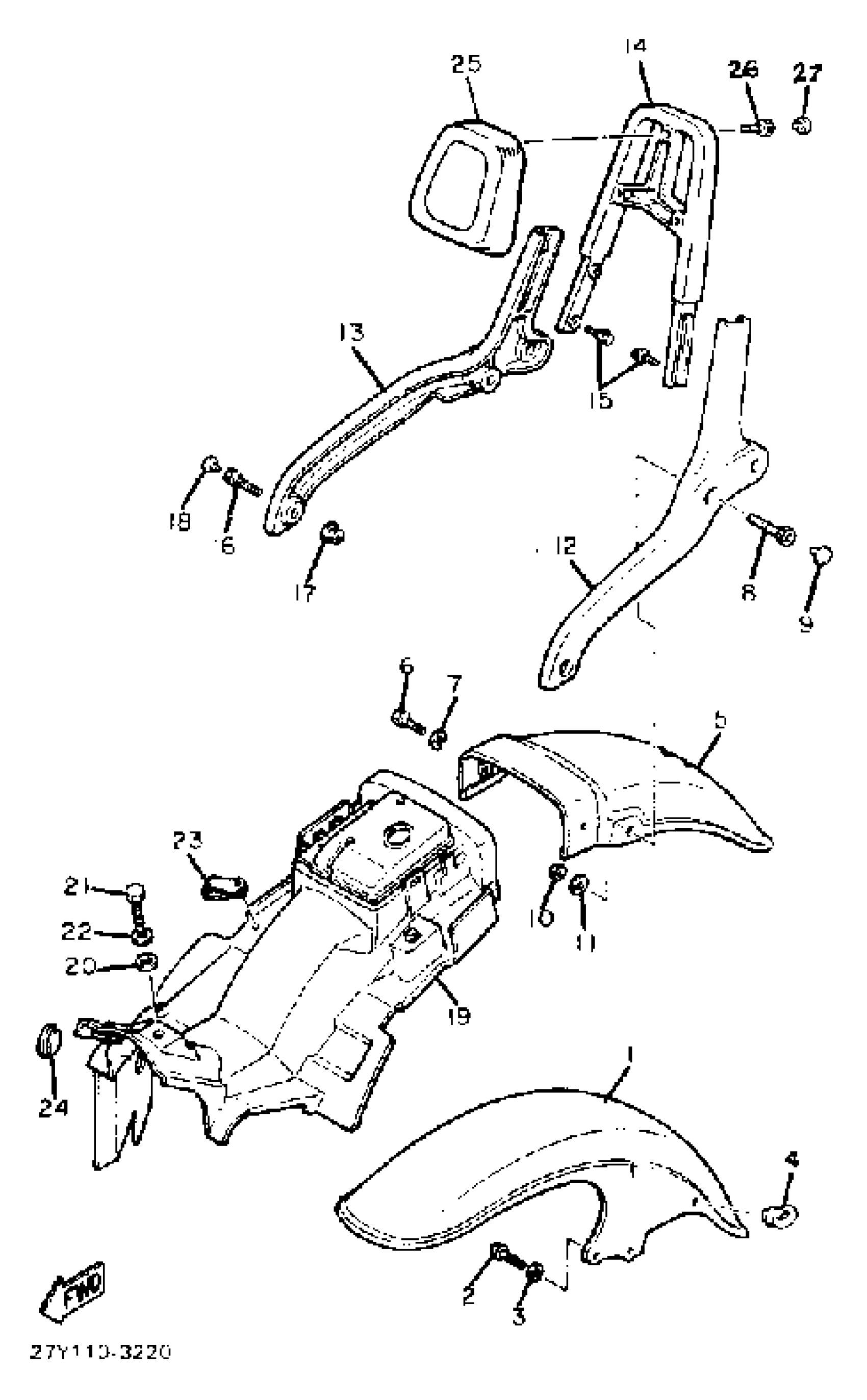

Yamaha XV920MK (XV920MK) 1983 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

24M-21510-00-6G

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

4X7-21610-01-6G

Unavailable

6

BOLT, HEXAGON

97017-06012-00

$3.76

7

WASHER, SPRING

92907-06100-00

$4.25

8

BOLT,SOCKET

91317-10040-00

$7.49

9

CAP, BOLT

4X7-23469-10-00

$5.49

10

NUT(624)

95380-10600-00

$3.50

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

12

STAY 1

(20X-2164F-00-00)

Unavailable

13

STAY 2

20X-2164G-00-00

Unavailable

14

GRIP 1

27Y-2164A-00-00

Unavailable

15

BOLT, FLANGE

95817-06016-00

$2.75

16

BOLT, SOCKET

91317-08060-00

Unavailable

17

NUT(55X)

90179-08491-00

Unavailable

18

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

19

GUARD, MUD

4X7-21620-00-00

Unavailable

20

WASHER, PLATE

90201-06380-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

CLAMP (2H7)

90464-12027-00

Unavailable

24

GROMMET (2A6)

90480-30167-00

Unavailable

25

BACK REST ASSEMBLY

24M-2840F-00-00

Unavailable

26

BOLT,SOCKET

91317-06035-00

Unavailable

27

PLUG

90338-05010-00

Unavailable
