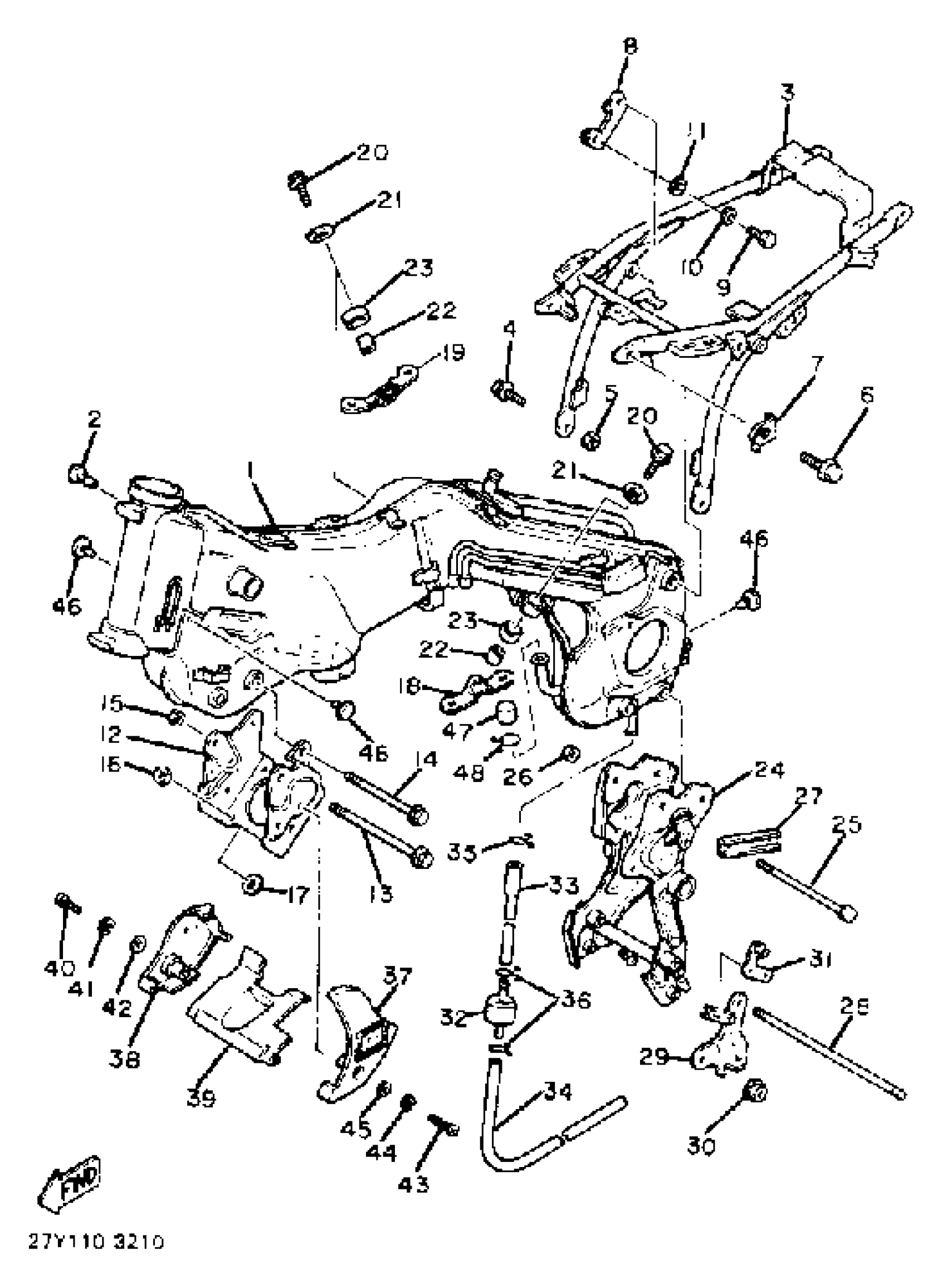

Yamaha XV920MK (XV920MK) 1983 FRAME Diagram
#
1
FRAME
(4X7-21110-00-33)
Unavailable
2
PLUG, SPEC''L SHAPE
(90338-03116-00)
Unavailable
3
FRAME, REAR
10L-21190-00-98
Unavailable
7
WASHER, LOCK
90215-10192-00
Unavailable
8
BRACKET 2
4X7-2138L-00-00
Unavailable
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
STAY, ENGINE 4
4X7-21317-00-00
Unavailable
14
BOLT, ENG MNTNG 3
4H3-21483-00-00
Unavailable
15
NUT
90179-10321-00
Unavailable
16
NUT(3EF)
90179-12657-00
Unavailable
17
WASHER, PLATE (5E3)
90201-125A3-00
Unavailable
18
STAY, ENGINE 2
(4X7-21315-00-00)
Unavailable
19
STAY, ENGINE 3
(4X7-21316-00-00)
Unavailable
20
BOLT (4W3)
90105-10186-00
Unavailable
21
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
22
COLLAR (5E3)
90387-100E2-00
Unavailable
23
DAMPER, RUBBER 1
4X7-21485-00-00
Unavailable
24
BRACKET, REAR ARM
4X7-21430-00-00
Unavailable
25
BOLT
90101-10074-00
Unavailable
26
NUT(4KG)
90179-10658-00
Unavailable
27
WASHER, LOCK
(4X7-21491-00-00)
Unavailable
28
BOLT, STUD
(90116-10398-00)
Unavailable
29
BRACKET, SIDE STAND
(4X7-21458-01-00)
Unavailable
30
NUT
90179-10321-00
Unavailable
31
CLAMP
(90465-06210-00)
Unavailable
32
FILTER ASSY
4X7-2149Y-00-00
Unavailable
33
HOSE
(90445-11545-00)
Unavailable
34
HOSE (L198)
90445-11293-00
Unavailable
35
CLIP(6M6)
90467-13M13-00
Unavailable
36
CLIP(1JH)
90467-11106-00
Unavailable
37
SCOOP, AIR 1
4X7-2137W-00-98
Unavailable
38
SCOOP, AIR 2
4X7-2137X-00-98
Unavailable
39
GUIDE, AIR
4X7-2137Y-00-98
Unavailable
40
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
41
WASHER, SPRING
92907-06100-00
Unavailable
42
WASHER(6TA)
92907-06600-00
Unavailable
43
SCREW, PAN
98507-06040-00
Unavailable
44
WASHER, SPRING
92907-06100-00
Unavailable
45
WASHER(6TA)
92907-06600-00
Unavailable
46
PLUG 288833190000
90338-07043-00
Unavailable
47
CAP, TOOL BOX
5A8-21399-00-00
Unavailable
48
CLIP (371)
90467-14015-00
Unavailable
