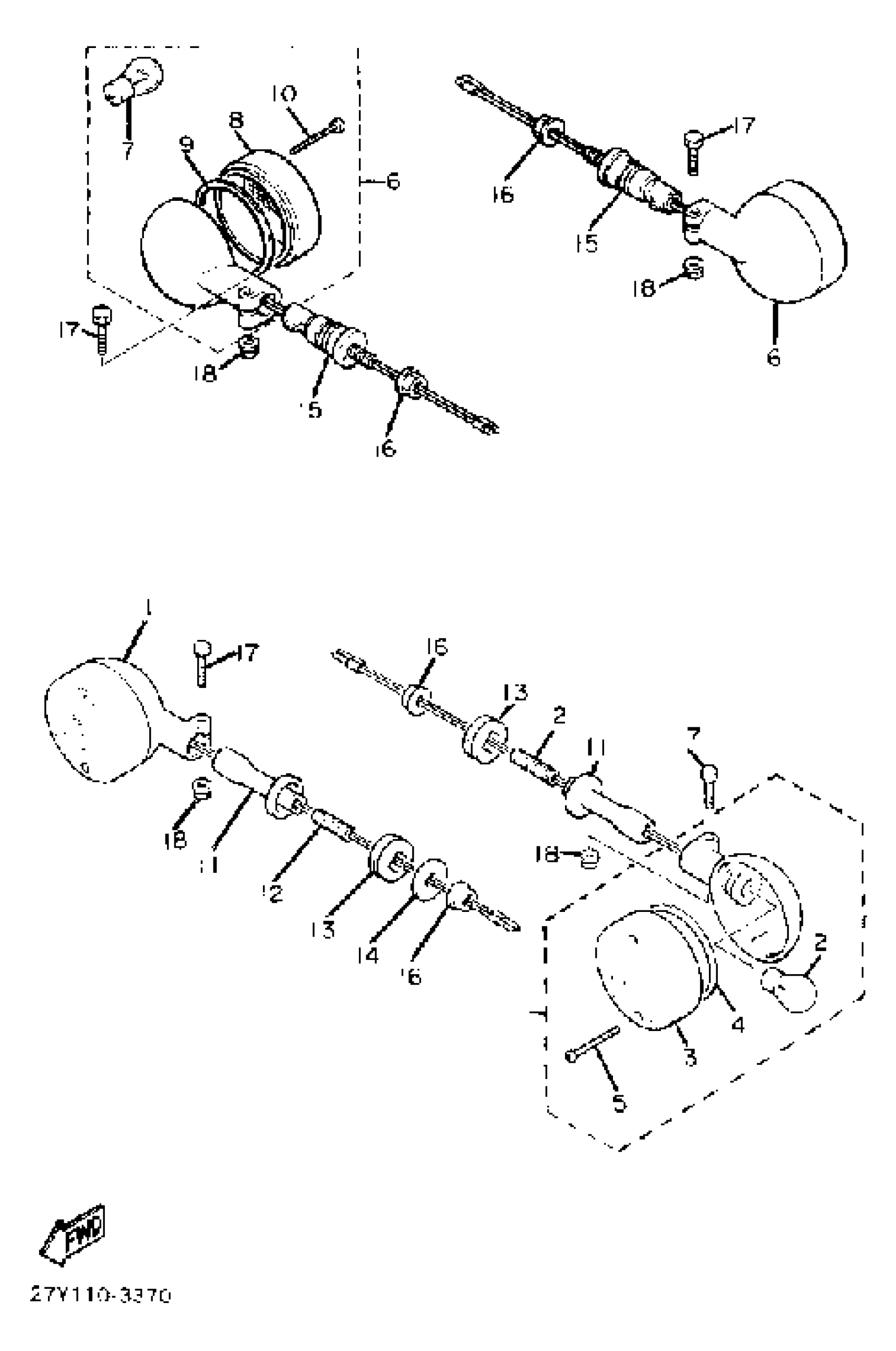

Yamaha XV920MK (XV920MK) 1983 FLASHER LIGHT Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

27Y-83320-K0-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

LENS, FLASHER

4H7-83312-00-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

SCREW, PAN HEAD

98502-03530-00

$4.29

6

R FLSHR LITE ASSEMBLY

20X-83330-K0-00

Unavailable

7

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

8

LENS, FLASHER

4H7-83312-00-00

Unavailable

9

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

10

SCREW, PAN HEAD

98502-03530-00

$4.29

11

STAY, FLASHER 2

20X-83328-00-00

Unavailable

12

BLT, FLSHR STY FTNG

4X7-83325-00-00

Unavailable

13

DAMPER, FLASHER (371)

341-83321-01-00

$7.99

14

WASHER

90201-12588-00

$7.49

15

STAY, FLASHER 2

1AA-83328-00-00

$60.99

16

NUT(3GG)

90179-12588-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

Unavailable
