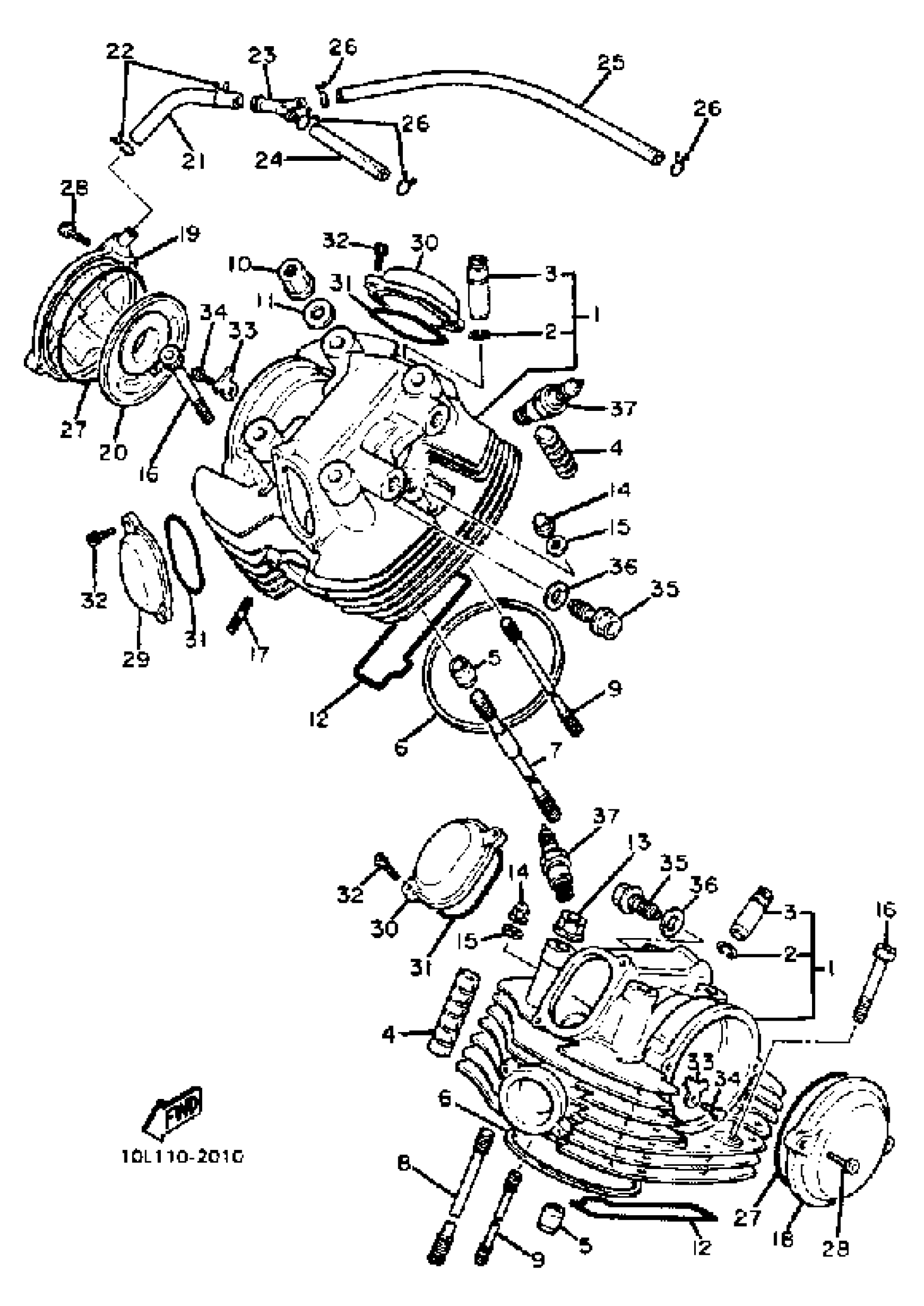

Yamaha XV920MK (XV920MK) 1983 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(5A8-11110-02-00)

Unavailable

2

CIRCLIP (4X7)

93440-14086-00

$9.49

3

GUIDE, INTAKE VALVE (1ST O/S)

4X7-11133-10-00

$69.99

4

ABSORBER 1

4X7-11161-00-00

Unavailable

5

PIN, DOWEL(3EF)

91817-30011-00

$12.49

6

GASKET, CYLINDER HEAD 1

5H1-11181-00-00

Unavailable

7

BOLT, CYLINDER HOLDING 3

4X7-11363-01-00

Unavailable

8

BOLT,STUD

90116-12350-00

Unavailable

9

BOLT, STUD (4X7)

90116-10344-00

$13.99

10

NUT, SPEC''L SHAPE

(90179-12384-00)

Unavailable

11

WASHER, PLATE (5E3)

90201-125A3-00

$2.17

12

SEAL, CYLINDER 1

4X7-11355-00-00

Unavailable

13

NUT, SPEC''L SHAPE

(90179-12383-00)

Unavailable

14

NUT, CROWN (5A8)

90176-10033-00

$9.49

15

WASHER, PLATE (26H)

90201-102G9-00

$9.49

16

BOLT, SOCKET

91317-08050-00

Unavailable

17

BOLT, STUD 3

95617-08625-00

Unavailable

18

CVR, CYLINDER HD SIDE 1

20X-11185-00-00

Unavailable

19

COVER, CYLINDER.HEAD 4

20X-1111H-00-00

Unavailable

20

PLATE, BREATHER

42X-11165-00-00

Unavailable

21

HOSE (L60)

90445-16641-00

Unavailable

22

CLIP (371)

90467-14015-00

Unavailable

23

JOINT 1

10L-1131H-00-00

Unavailable

24

HOSE

90445-10365-00

Unavailable

25

HOSE (L450)

90445-10144-00

Unavailable

26

CLIP, DRAIN CLEANER

(4W5-14438-00-00)

Unavailable

27

O-RING (4X7)

93210-92448-00

Unavailable

28

BOLT,SOCKET

91317-06025-00

Unavailable

29

COVER, CYLINDER.HEAD 2

(20X-11186-00-00)

Unavailable

30

COVER, CYLINDER.HEAD 3

20X-11187-00-00

Unavailable

31

O-RING (4X7)

93210-62446-00

Unavailable

32

BOLT,SOCKET

91317-06016-00

Unavailable

33

PLATE

4X7-1111F-00-00

Unavailable

34

BOLT, HEXAGON

97013-08020-00

Unavailable

35

BOLT, UNION(4TR)

90401-16166-00

Unavailable

36

GASKET (4X7)

90430-17168-00

Unavailable

37

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable
