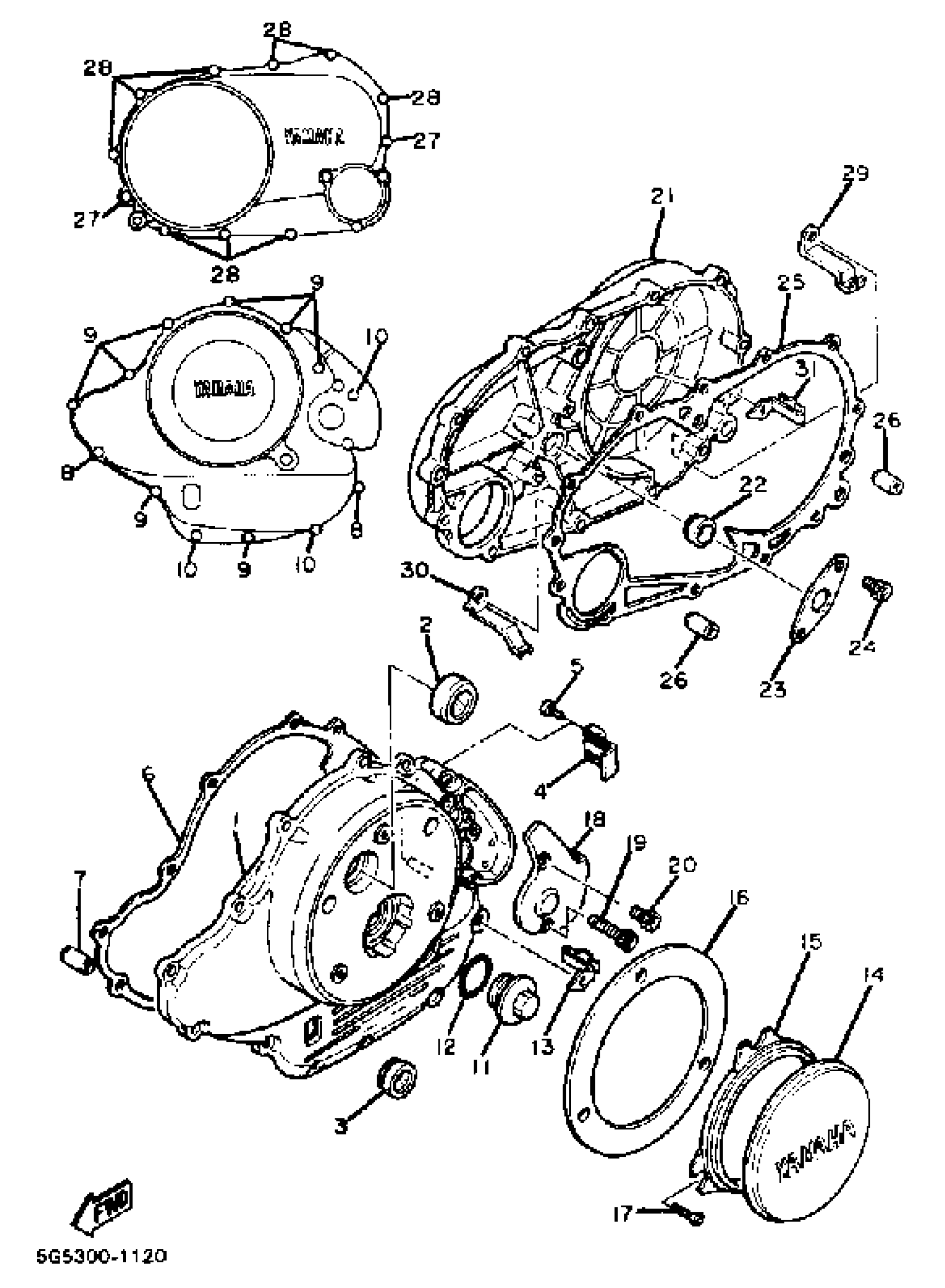

Yamaha XV920MK (XV920MK) 1983 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

20X-15411-01-00

Unavailable

2

GAUGE, LEVEL

4X7-15361-00-00

Unavailable

3

GAUGE, LEVEL

2H7-15361-00-00

$97.99

4

CLAMP

90462-08073-00

Unavailable

5

SCREW PAN HEAD

98580-06010-00

$8.49

6

GASKET, CRANKCASE COVER 1

3EG-15451-00-00

$64.99

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT,SOCKET

91317-06040-00

$3.76

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

$31.99

12

O-RING (341)

93210-32172-00

$7.49

13

CLAMP

90462-08076-00

Unavailable

14

COVER, GENERATOR

20X-15415-00-00

Unavailable

15

GASKET 1

4X7-15455-00-00

Unavailable

16

COVER, GENERATOR R

20X-15425-00-00

Unavailable

17

SCREW, FLAT

98707-06018-00

Unavailable

18

COVER, CAP

(20X-15417-00-00)

Unavailable

19

BOLT,SOCKET

91317-06055-00

Unavailable

20

BOLT,SOCKET

91317-06016-00

Unavailable

21

COVER, CRANKCASE R

20X-15421-00-00

Unavailable

22

OIL SEAL (4X7)

93101-14102-00

Unavailable

23

PLATE, BEARING COVER

4X7-15388-00-00

Unavailable

24

BOLT,SOCKET

91317-06016-00

Unavailable

25

GASKET, CRANKCASE COVER 3

3EG-15462-00-00

Unavailable

26

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

27

BOLT,SOCKET

91317-06040-00

$3.76

28

BOLT,SOCKET

91317-06025-00

Unavailable

29

CLAMP

90462-08075-00

Unavailable

30

CLAMP

90462-10003-00

Unavailable

31

CLAMP

90462-08076-00

Unavailable
