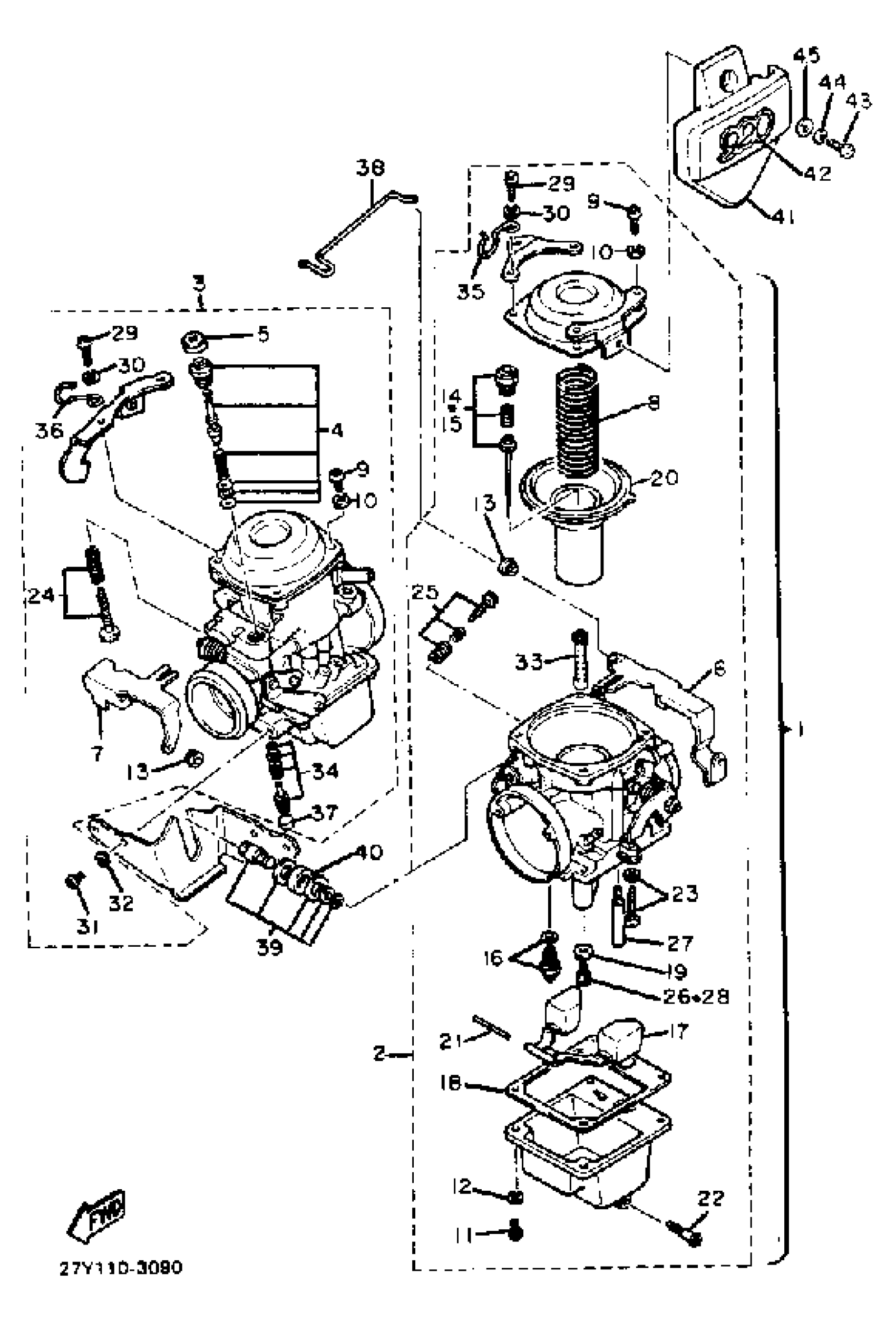

Yamaha XV920MK (XV920MK) 1983 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY

(27Y-14900-00-00)

Unavailable

2

CARBURETOR ASSEMBLY 1

(27Y-14901-00-00)

Unavailable

3

CARBURETOR ASSEMBLY 2

(27Y-14902-00-00)

Unavailable

4

.. PLUNGER, STARTER

4X7-14371-01-00

Unavailable

5

.. COVER, PLUNGER CAP

4H7-14173-00-00

Unavailable

6

LEVER, STARTER 2

(27Y-14976-00-00)

Unavailable

7

LEVER, STARTER 2

(27Y-14976-10-00)

Unavailable

8

.. SPRING, DIAPHRAGM

4X7-14933-10-00

Unavailable

9

SCREW, PAN

98517-05012-00

$4.73

10

WASHER(3SX)

92907-05100-00

$8.49

11

SCREW, PAN HEAD

90157-05M19-00

Unavailable

12

WASHER(3SX)

92907-05100-00

$8.49

13

.. BUSH

4X7-14998-01-00

Unavailable

14

.. NEEDLE Y-31

4X7-14916-31-00

Unavailable

15

.. NEEDLE Y-31

4X7-14916-31-00

Unavailable

16

.. NEEDLE VALVE ASSY

10L-14390-02-00

Unavailable

17

.. FLOAT

10L-14985-01-00

Unavailable

18

.. GASKET, FLOAT CHMBR

10L-14984-02-00

Unavailable

19

.. WASHER, MAIN JET

4H7-14945-00-00

Unavailable

20

.. DIAPHRAGM ASSEMBLY

4X7-14940-01-00

Unavailable

21

.. PIN, FLOAT

4H7-14186-00-00

Unavailable

22

.. PLUG, DRAIN

4X7-14191-01-00

Unavailable

23

SCREW, THROTTLE

(27Y-14321-00-00)

Unavailable

24

.. SCREW, THRTL STOP

27Y-14121-00-00

Unavailable

25

.. SCREW, ADJUST

4X7-14522-01-00

Unavailable

26

.. JET, MAIN

4X7-14925-28-00

Unavailable

27

JET

(10L-14948-41-00)

Unavailable

28

.. JET, MAIN

4X7-14925-26-00

Unavailable

29

SCREW, PAN HEAD

90157-05M19-00

Unavailable

30

WASHER(3SX)

92907-05100-00

$8.49

31

SCREW, PAN

98507-06014-00

Unavailable

32

WASHER, SPRING

92907-06100-00

Unavailable

33

.. NOZZLE, MAIN

10L-14921-32-00

Unavailable

34

.. SCREW, PILOT

10L-14923-01-00

Unavailable

35

CLIP

(27Y-14919-00-00)

Unavailable

36

CLIP

(27Y-14937-00-00)

Unavailable

37

.. CAP (10L-14118-01)

10L-14118-11-00

Unavailable

38

ROD, STARTER LEVER

(4X7-14177-01-00)

Unavailable

39

. WASHER

4X7-14962-00-00

Unavailable

40

. ROLLER

4X7-14267-00-00

Unavailable

41

COVER, CARBURETOR

20X-14283-00-00

Unavailable

42

EMBLEM

27Y-1441K-00-00

Unavailable

43

SCREW, PAN

98517-06012-00

Unavailable

44

WASHER, SPRING

92907-06100-00

Unavailable

45

WASHER(6TA)

92907-06600-00

Unavailable
