Description

Price

1

FRT FLSHR LITE ASSEMBLYLIGHT ASSEMBLY 1

10M-83310-K0-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

LENS, FLASHER

4H7-83312-00-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

SCREW, PAN HEAD

98502-03530-00

$4.29

6

REAR FLASHER LIGHT ASSY

5K5-83330-K0-00

Unavailable

7

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

8

LENS, FLASHER

4H7-83312-00-00

Unavailable

9

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

10

SCREW, PAN HEAD

98502-03530-00

$4.29

11

STAY, FLASHER 2

4X7-83328-00-00

Unavailable

12

BLT, FLSHR STY FTNG

4X7-83325-00-00

Unavailable

13

DAMPER, FLASHER (371)

341-83321-01-00

$7.99

14

WASHER

90201-12588-00

$7.49

15

STAY, FLASHER 2

1AA-83328-00-00

$60.99

16

NUT(3GG)

90179-12588-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

Unavailable

18

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

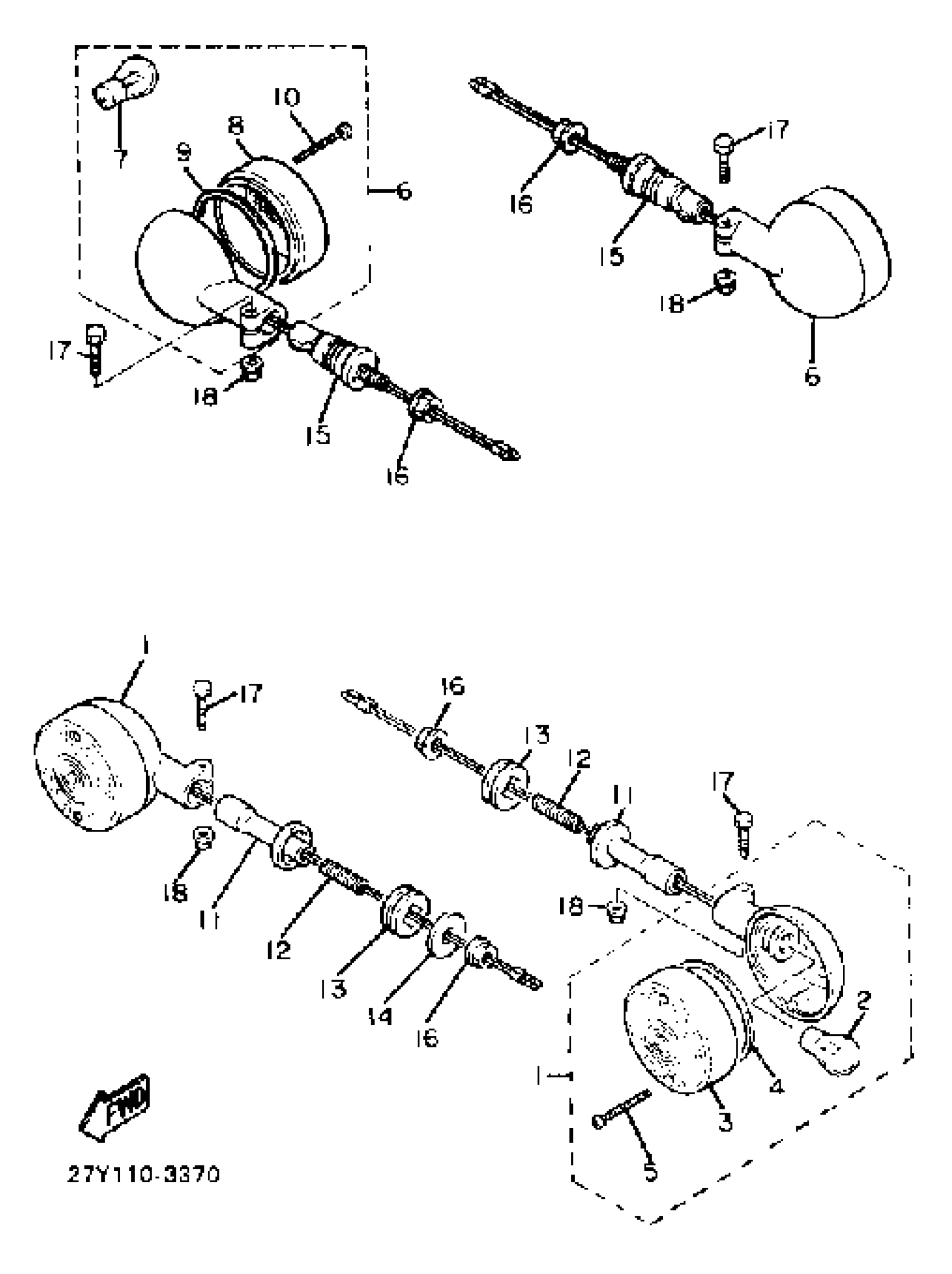

Yamaha XV920K (XV920K) 1983 TURNSIGNAL Diagram

FRT FLSHR LITE ASSEMBLYLIGHT ASSEMBLY 1

. BULB (12V-32CP)

LENS, FLASHER

GASKET, FLASHER LENS

SCREW, PAN HEAD

REAR FLASHER LIGHT ASSY

. BULB (12V-32CP)

LENS, FLASHER

GASKET, FLASHER LENS

SCREW, PAN HEAD

STAY, FLASHER 2

BLT, FLSHR STY FTNG

DAMPER, FLASHER (371)

WASHER

STAY, FLASHER 2

NUT(3GG)

BOLT, HEXAGON

NUT, FLANGE(7NB)
