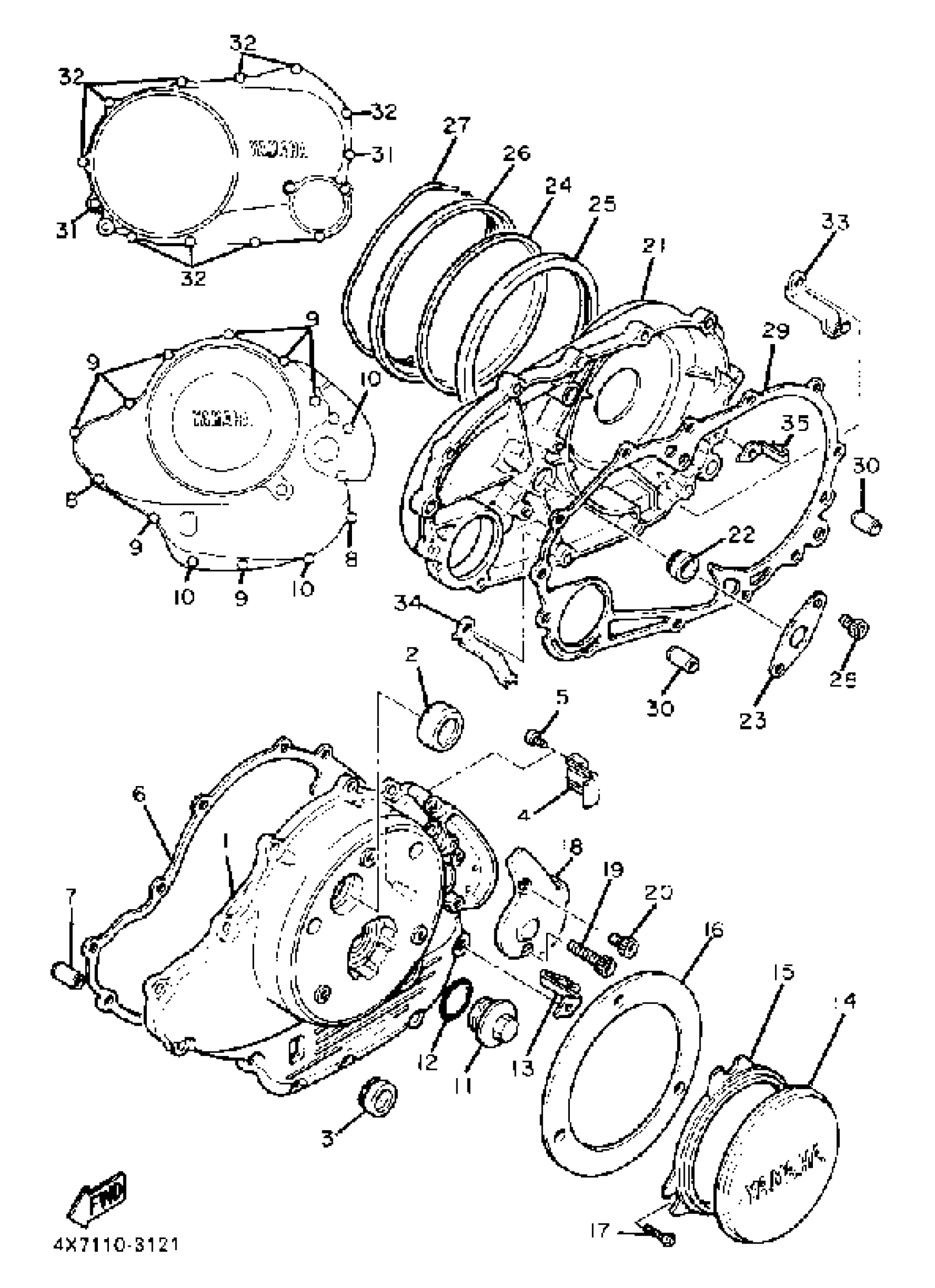

Yamaha XV920K (XV920K) 1983 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L (4X7-15411-00)

4X7-15411-02-00

Unavailable

2

GAUGE, LEVEL

4X7-15361-00-00

Unavailable

3

GAUGE, LEVEL

2H7-15361-00-00

$97.99

4

CLAMP

90462-08073-00

Unavailable

5

SCREW PAN HEAD

98580-06010-00

$8.49

6

GASKET, CRANKCASE COVER 1

3EG-15451-00-00

$64.99

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, SOCKET

91314-06040-00

$8.49

9

BOLT, SOCKET

91314-06030-00

$8.49

10

BOLT,SOCKET HEAD

91314-06020-00

$1.49

11

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

$31.99

12

O-RING (341)

93210-32172-00

$7.49

13

CLAMP

90462-08076-00

Unavailable

14

COVER, GENERATOR

42X-15415-01-00

Unavailable

15

GASKET 1

4X7-15455-00-00

Unavailable

16

COVER, GENERATOR R (4X7-15425-00)

42X-15425-01-00

Unavailable

17

SCREW, FLAT HEAD

98780-06016-00

Unavailable

18

COVER, CAP

4X7-15417-00-00

Unavailable

19

BOLT,SOCKET

91314-06055-00

Unavailable

20

BOLT, SOCKET

91314-06016-00

Unavailable

21

COVER,CRANKCASE R

42X-W1542-00-00

Unavailable

22

OIL SEAL (4X7)

93101-14102-00

Unavailable

23

PLATE, BEARING COVER

4X7-15388-00-00

Unavailable

24

COVER, CAP 2 (24M-15427-00)

24M-15427-01-00

Unavailable

25

RING, RUBBER

5E5-15449-00-00

Unavailable

26

COVER

5E5-15492-00-00

Unavailable

27

CLIP

90468-20116-00

Unavailable

28

BOLT,SOCKET

91317-06016-00

Unavailable

29

GASKET, CRANKCASE COVER 3

3EG-15462-00-00

Unavailable

30

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

31

BOLT, SOCKET

91314-06040-00

$8.49

32

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

33

CLAMP

90462-08075-00

Unavailable

34

CLAMP

90462-10003-00

Unavailable

35

CLAMP

90462-08076-00

Unavailable
