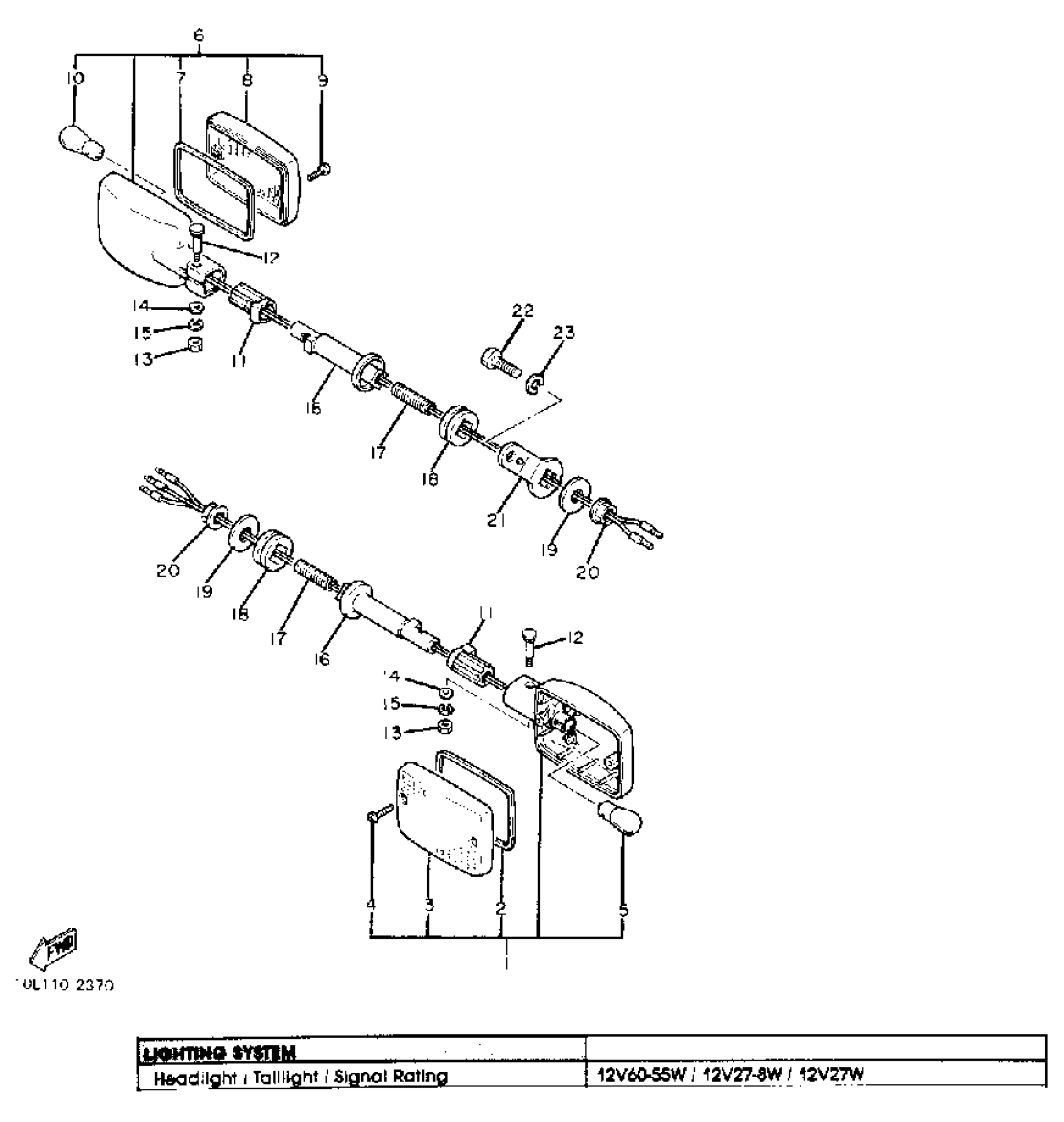

Yamaha XV920J (XV920J) 1982 TURNSIGNAL Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

10L-83310-70-00

Unavailable

2

. GASKET, FLASHER LENS

4G0-83313-00-00

Unavailable

3

. LENS, FLASHER

4G0-83312-00-00

Unavailable

4

SCREW,TAPPING

97701-40618-00

Unavailable

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

6

FRT FLSHR LITE ASSEMBLY (10L-83330-70)

15R-83310-70-00

Unavailable

7

. GASKET, FLASHER LENS

4G0-83313-00-00

Unavailable

8

. LENS, FLASHER

4G0-83312-00-00

Unavailable

9

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

DAMPER, FLASHER 1

10L-83321-00-00

Unavailable

12

. BOLT, FLASHER 1

4G0-83317-00-00

Unavailable

13

NUT, HEXAGON SMALL

95317-05700-00

$8.49

14

WASHER, PLAIN (646)

92990-05600-00

$0.80

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

STAY, FLASHER 1

10L-83318-00-00

Unavailable

17

BLT, FLSHR STY FTNG

4X7-83325-00-00

Unavailable

18

DAMPER, FLASHER (371)

341-83321-01-00

Unavailable

19

WASHER

90201-12588-00

Unavailable

20

NUT(3GG)

90179-12588-00

Unavailable

21

STAY, FLASHER 2

10L-83328-00-00

Unavailable

22

BOLT, HEXAGON

97017-08016-00

Unavailable

23

WASHER(JN5)

92907-08100-00

Unavailable
