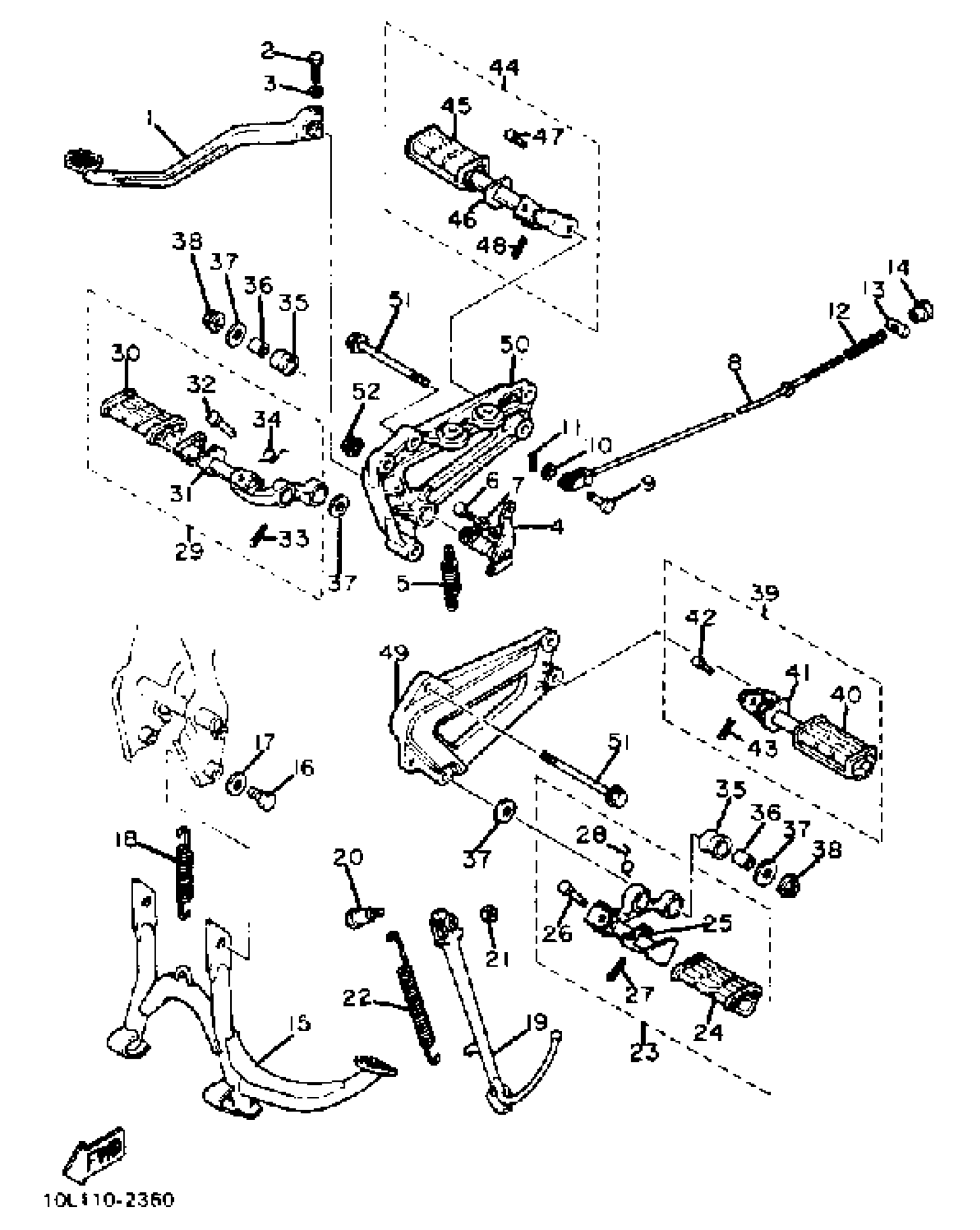

Yamaha XV920J (XV920J) 1982 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

4X7-27211-00-93

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

4X7-27212-00-00

Unavailable

5

SPRING, TENSION

90506-23204-00

Unavailable

6

SCREW 341272170000

90153-06008-00

$7.49

7

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

8

ROD, BRAKE

(10L-27231-00-00)

Unavailable

9

PIN, CLEVIS (24X)

90240-06103-00

$7.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

PIN, COTTER

91490-20025-00

$1.99

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

STAND, MAIN

4X7-27111-00-R4

Unavailable

16

BOLT,HEXAGON

97017-10016-00

Unavailable

17

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

18

SPRING, TENSION (1T5)

90506-35149-00

Unavailable

19

STAND, SIDE

4X7-27311-00-R4

Unavailable

20

BOLT

90109-10473-00

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

SPRING (460)

90507-29009-00

Unavailable

23

FRT FOOTREST ASSEMBLY L

4X7-27410-00-93

Unavailable

24

COVER, FOOTREST

4X7-27413-00-00

Unavailable

25

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

26

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

29

FRT FOOTREST ASSEMBLY R

4X7-27420-00-93

Unavailable

30

COVER, FOOTREST

4X7-27413-00-00

Unavailable

31

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

32

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

33

PIN COTTER

91490-30025-00

Unavailable

34

SPRING TORSION 371274560000

90508-20155-00

Unavailable

35

DAMPER, FOOTREST

4X7-27414-00-00

Unavailable

36

COLLAR

90387-107A7-00

Unavailable

37

WASHER, PLATE (4X7)

90201-105A2-00

Unavailable

38

NUT(4KG)

90179-10658-00

Unavailable

39

RR FOOTREST ASSEMBLY 1

4X7-27430-00-00

Unavailable

40

. COVER, REAR FOOTREST

3H5-27433-00-00

Unavailable

41

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

42

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

43

PIN, COTTER

91490-16020-00

Unavailable

44

RR FOOTREST ASSEMBLY 2

4X7-27440-00-00

Unavailable

45

. COVER, REAR FOOTREST

3H5-27444-00-00

Unavailable

46

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

47

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

48

PIN, COTTER

91490-16020-00

Unavailable

49

BRACKET 2

10L-27442-00-00

Unavailable

50

BRACKET 3

10L-27443-00-00

Unavailable

51

BOLT, WASHER BASED

90105-10184-00

Unavailable

52

NUT(4KG)

90179-10658-00

Unavailable
