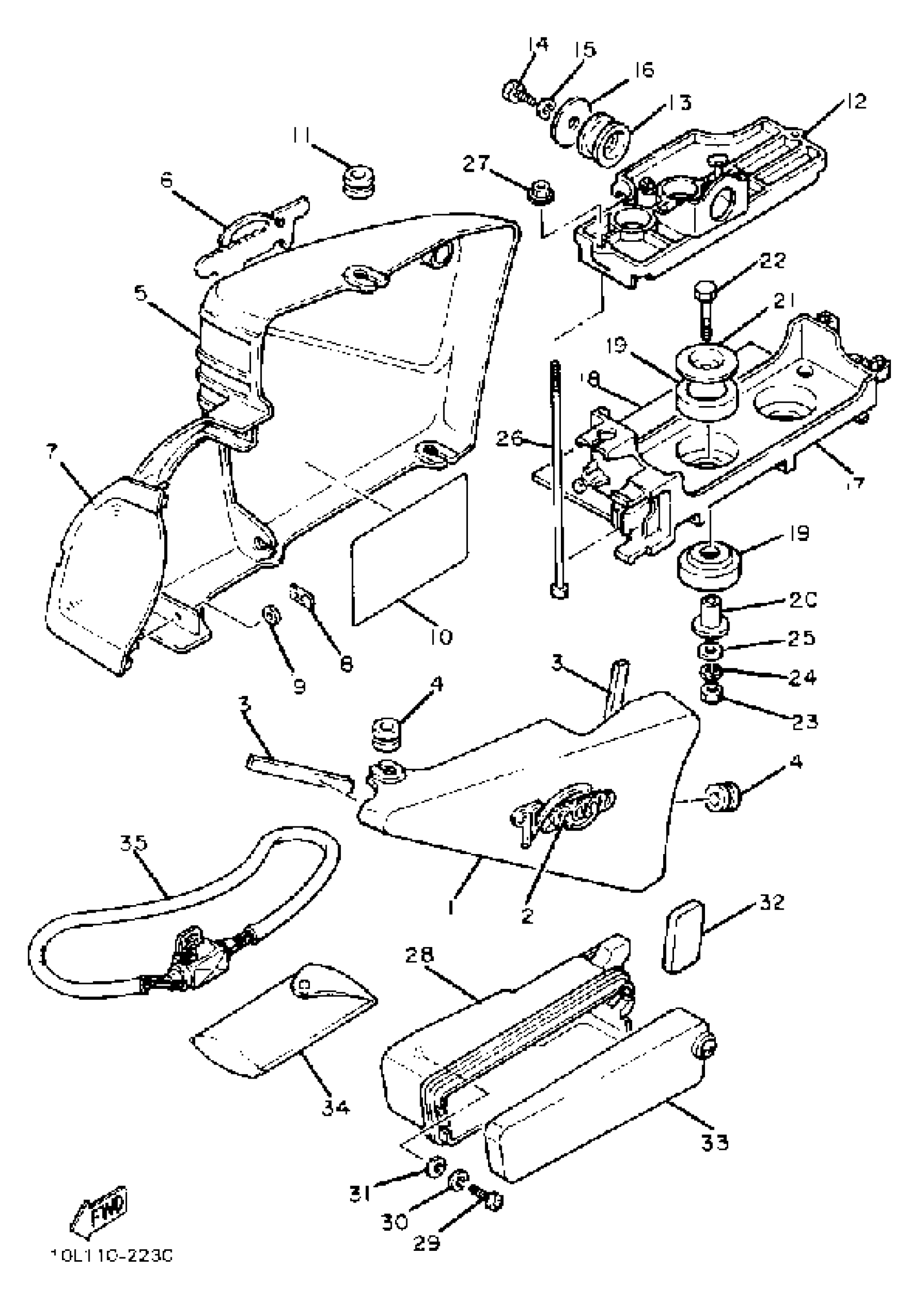

Yamaha XV920J (XV920J) 1982 SIDE COVER TOOL Diagram

#

Description

Price

1

COVER, SIDE 1 (NEW WHITE)

10L-21711-00-6G

Unavailable

1

COVER, SIDE 1

10L-21711-00-7J

Unavailable

2

EMBLEM 1

4X7-21781-01-00

Unavailable

3

DAMPER 2

3FA-21639-00-00

Unavailable

4

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

5

COVER, SIDE 2 (NEW WHITE)

10L-21721-00-6G

Unavailable

5

COVER, SIDE 2

10L-21721-00-7J

Unavailable

6

EMBLEM 2

4X7-21782-01-00

Unavailable

7

COVER, SIDE 3

10L-21731-00-00

Unavailable

8

NUT SPRING 116283170100

90183-04005-00

$10.49

9

WASHER PLATE 174283160000

90202-04003-00

$8.49

10

PLATE, SPEC

(10L-21683-00-00)

Unavailable

11

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

12

BOX, BATTERY

10L-2177G-00-00

Unavailable

13

DAMPER

2H7-21747-00-00

Unavailable

14

BOLT (661)

97013-06012-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER (23T)

90201-065G8-00

Unavailable

17

BOX, TOOL

10L-21171-00-00

Unavailable

18

DAMPER 1

29N-14425-00-00

Unavailable

19

DAMPER

2H7-21746-00-00

Unavailable

20

COLLAR

90387-06166-00

Unavailable

21

WASHER, SPEC''L SHAP

90209-07170-00

Unavailable

22

BOLT (682)

97095-06040-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

BOLT

90101-05496-00

Unavailable

27

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

28

BOX

10L-21248-00-00

Unavailable

29

SCREW, PAN

98507-06014-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

WASHER, PLATE

90201-06M02-00

Unavailable

32

GROMMET

4X7-21719-00-00

Unavailable

33

CAP, TOOL BOX

10L-2179A-00-00

Unavailable

34

TOOL KIT

5A8-W2810-01-00

Unavailable

35

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable
