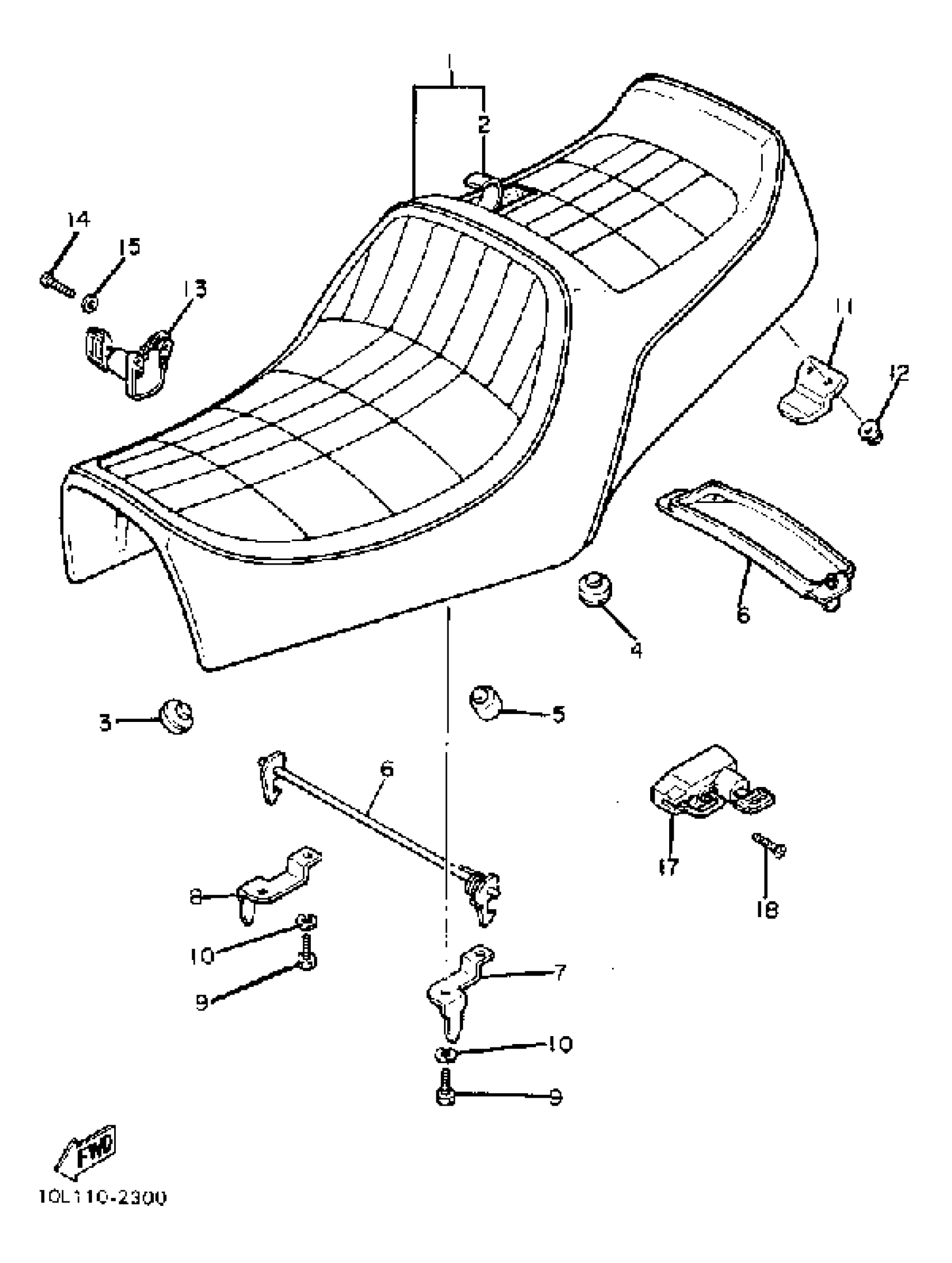

Yamaha XV920J (XV920J) 1982 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

(10L-W2472-00-00)

Unavailable

2

. COVER, DOUBLE SEAT

10L-24731-00-00

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

PAD, SEAT

1T4-24741-00-00

Unavailable

5

STOPPER, MAIN STAND

371-27114-00-00

$7.99

6

LEVER, SEAT

4X7-24776-01-00

Unavailable

7

BRACKET, SEAT

4X7-24728-00-00

Unavailable

8

BRACKET, SEAT

4X7-24738-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BRACKET, SEAT

4X7-24748-00-00

Unavailable

12

NUT, FLANGE(7NB)

95780-06500-00

$2.60

13

SEAT LOCK ASSEMBLY (10L-24705-00)

23W-24705-00-00

Unavailable

14

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

15

WASHER(6TA)

92907-06600-00

$2.72

16

LID 1

4X7-2473T-02-00

Unavailable

17

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

18

SCREW (3H1)

90149-06150-00

Unavailable
