1982 Yamaha XV920J (XV920J) Meter Diagram

← All diagrams

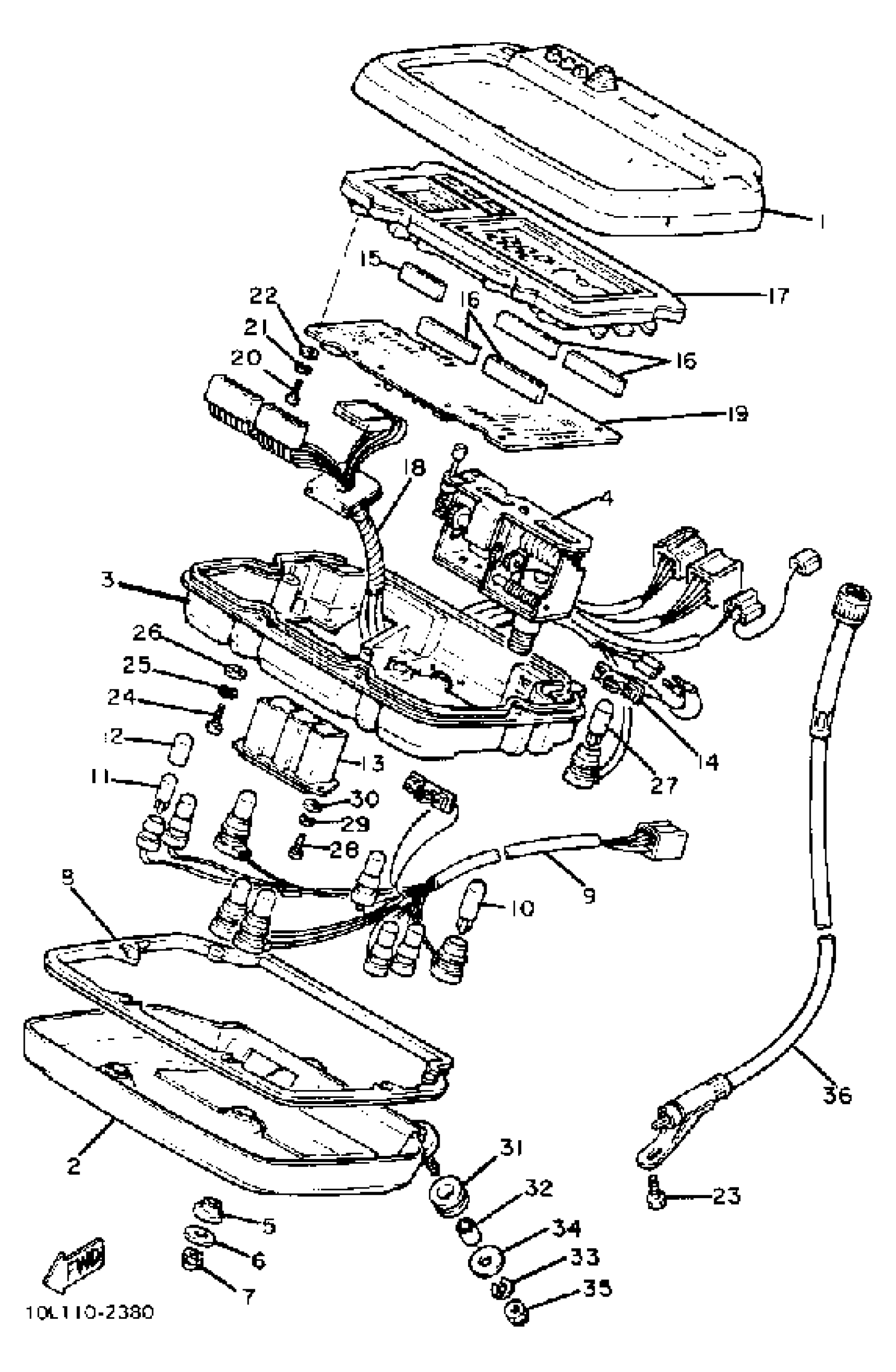

Find the part on the Meter diagram for your 1982 Yamaha XV920J (XV920J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XV920J (XV920J) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER COVER ASSEMBLY

10L-W8354-00-00

1
Out of stock

2

BRACKET METER

10L-8355A-00-00

1
Out of stock

3

CASE, INNER

10L-8353H-00-00

1
Out of stock

4

COUNTER ASSEMBLY

10L-8355R-A0-00

1
Out of stock

5

DAMPER

10L-83523-00-00

1
Out of stock

6

WASHER (676)

90201-05660-00

1
Out of stock

7

NUT, CAP

95307-05800-00

1

$5.62

In stock

8

DAMPER

10L-83513-00-00

1
Out of stock

9

WIRE, LEAD

(10L-83553-00-00)

1
Out of stock

10

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

11

BULB

4YR-83517-10-00

1
Out of stock

12

TUBE

10L-83535-00-00

1
Out of stock

13

BOX PILOT

10L-8356X-00-00

1
Out of stock

14

SENDER

10L-83556-00-00

1
Out of stock

15

CONNECTOR LCD 1

(10L-8358T-00-00)

1
Out of stock

16

CONNECTOR LCD 2

10L-8357V-00-00

1
Out of stock

17

LCD UNIT SET

10L-W8351-00-00

—

$320.86

In stock

18

WIRE HARNESS

(10L-8358Y-00-00)

1
Out of stock

19

PRINT BOARD ASSEMBLY

10L-8359J-A0-00

1
Out of stock

20

SCREW, PAN HEAD

98507-03016-00

—
Out of stock

21

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

22

WASHER(3SX)

92907-03600-00

—

$6.69

In stock

23

SCREW, HEXAGON

90153-06004-00

1
Out of stock

24

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

25

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

26

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

27

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

28

SCREW, PAN HEAD

(98502-03012-00)

1
Out of stock

29

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

30

WASHER(3SX)

92907-03600-00

—

$6.69

In stock

31

GROMMET

90480-14335-00

1
Out of stock

32

SPACER

90560-07007-00

—
Out of stock

33

WASHER, SPRING

92907-06100-00

—
Out of stock

34

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

35

NUT(6TA)

95317-06600-00

—

$2.69

In stock

36

SPEEDOMETER CABLE

20X-83550-00-00

1
Out of stock
