1982 Yamaha XV920J (XV920J) Generator Diagram

← All diagrams

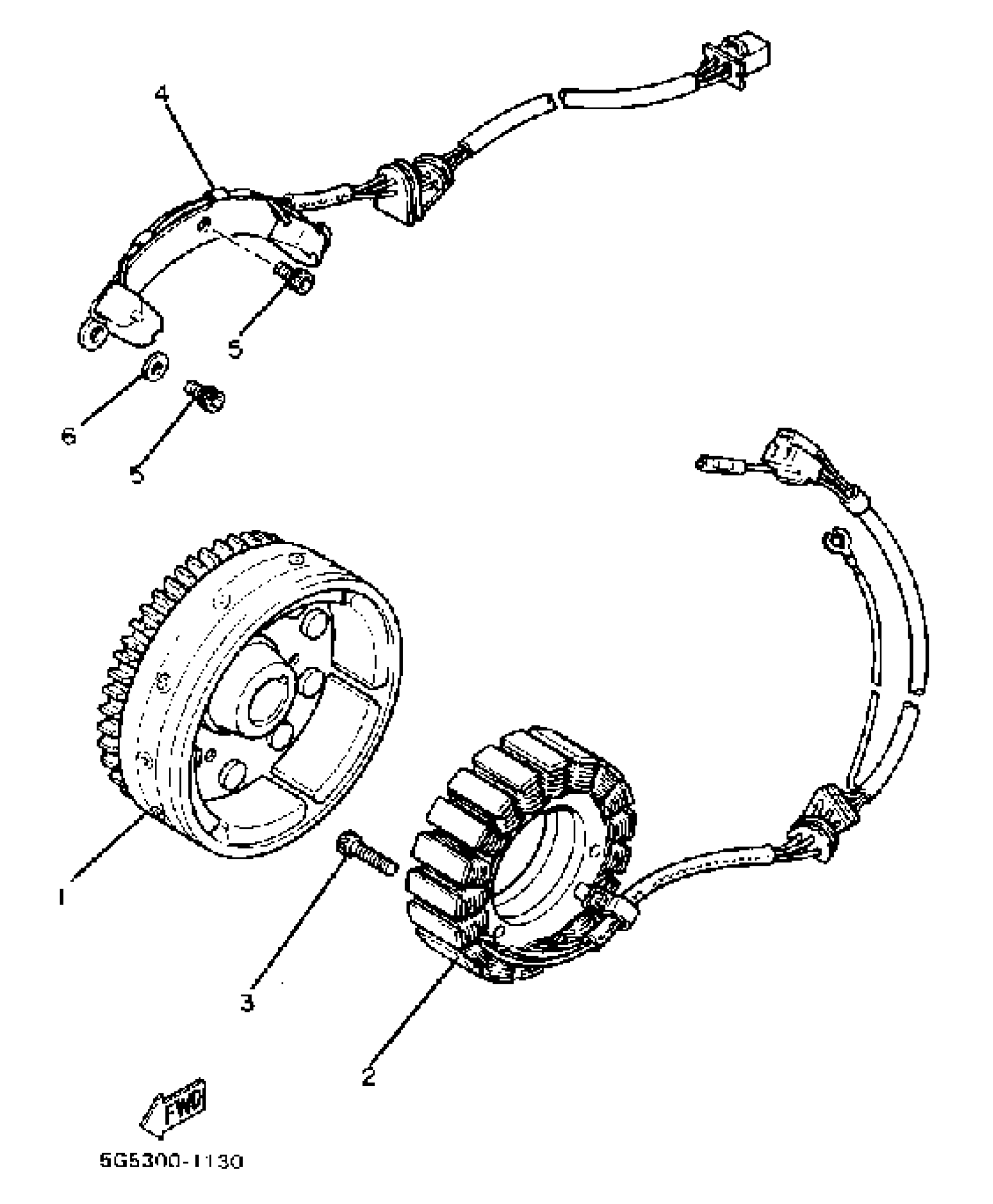

Find the part on the Generator diagram for your 1982 Yamaha XV920J (XV920J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XV920J (XV920J) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

4X7-81450-21-00

1
Out of stock

2

STATOR ASSEMBLY

4X7-81410-20-00

1
Out of stock

3

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

4

PICK-UP ASSEMBLY

4X7-81670-20-00

1
Out of stock

5

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

6

WASHER, PLATE

90201-06045-00

1

$6.18

In stock
