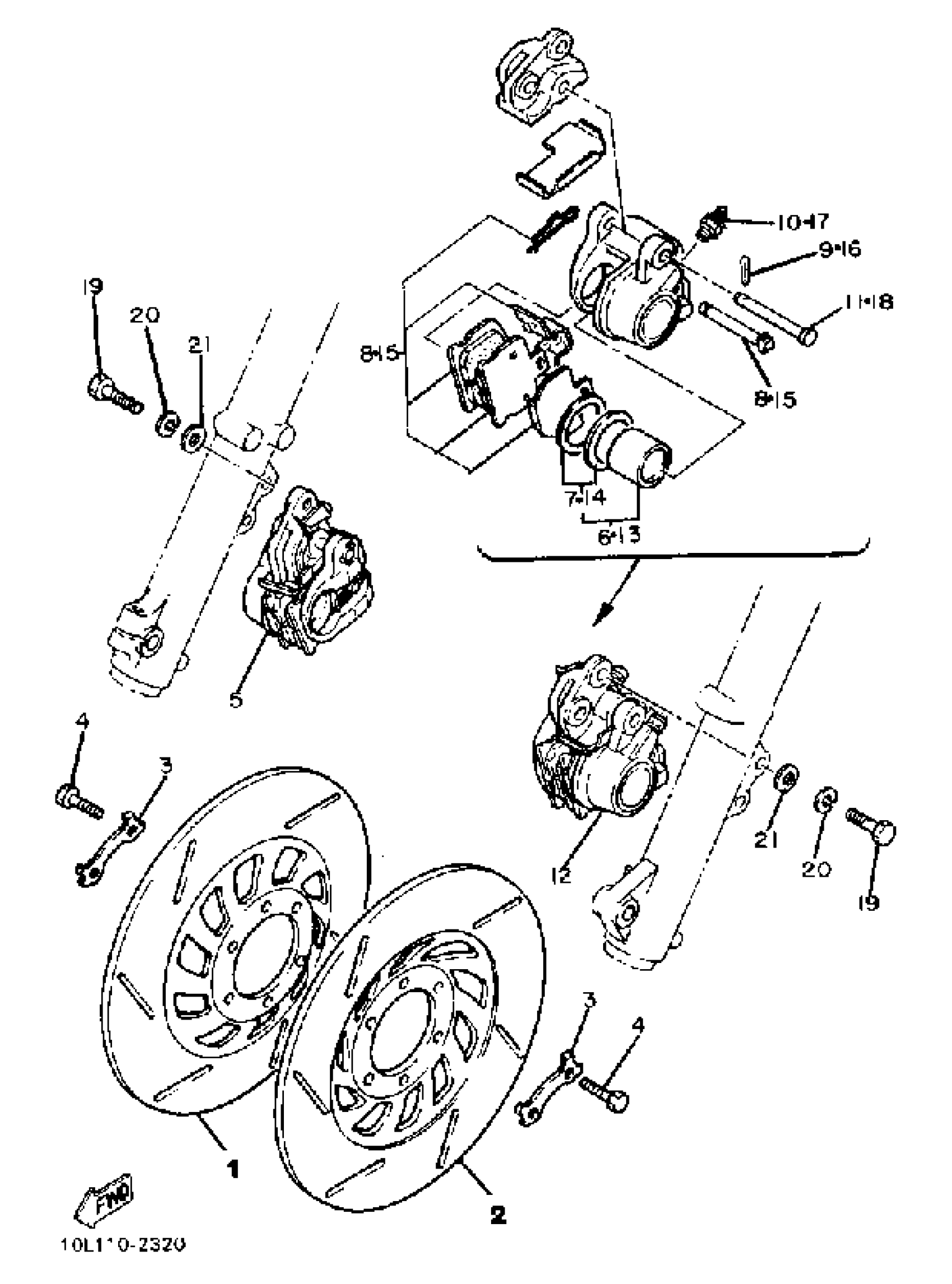

Yamaha XV920J (XV920J) 1982 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

5G9-25831-00-00

Unavailable

2

DISC, BRAKE

5G9-25831-10-00

Unavailable

3

WASHER, LOCK

3H5-25834-00-00

Unavailable

4

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

5

CALIPER ASSY RIGHT

23W-25810-02-00

Unavailable

6

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

7

SEAL KIT

4L0-W0047-01-00

$44.99

8

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

11

. PIN, SLIDE

4W1-25914-00-00

Unavailable

12

CALIPER ASY.

23W-25810-12-00

Unavailable

13

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

14

SEAL KIT

4L0-W0047-01-00

$44.99

15

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

16

PIN, COTTER (648)

91490-20015-00

$2.20

17

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

18

. PIN, SLIDE

4W1-25914-00-00

Unavailable

19

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable
