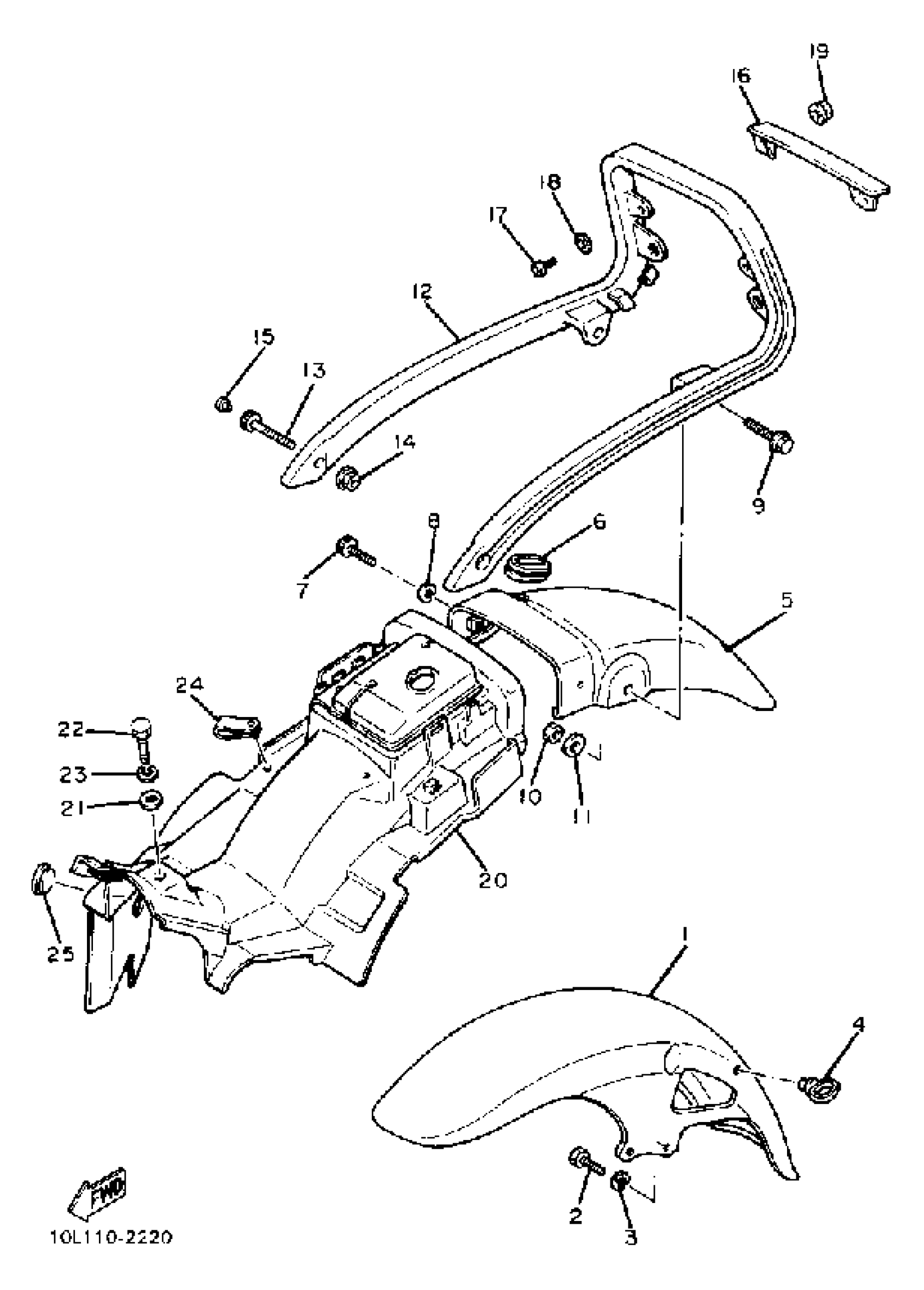

Yamaha XV920J (XV920J) 1982 FENDER CARRIER Diagram

#

Description
Price

1

FENDER, FRONT

10L-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

10L-21610-00-93

Unavailable

6

GROMMET (438)

90480-15061-00

$8.49

7

BOLT (661)

97013-06012-00

$5.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT, FLANGE

95817-10030-00

$8.49

10

NUT(624)

95380-10600-00

$3.50

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

12

STAY, REAR

10L-21645-00-00

Unavailable

13

BOLT, SOCKET

91317-08060-00

$7.49

14

NUT(55X)

90179-08491-00

$8.49

15

CAP, BOLT (371,447)

341-23469-00-00

$9.99

16

BRACKET, REAR STAY

10L-21688-01-00

Unavailable

17

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

18

WASHER, PLAIN (646)

92990-05600-00

Unavailable

19

NUT (CROWN)

95303-05800-00

Unavailable

20

GUARD, MUD

4X7-21620-00-00

Unavailable

21

WASHER, PLATE

90201-06M08-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

CLAMP (2H7)

90464-12027-00

Unavailable

25

GROMMET (2A6)

90480-30167-00

Unavailable
