- XV920J (XV920J) 1982
ELECTRICAL 1

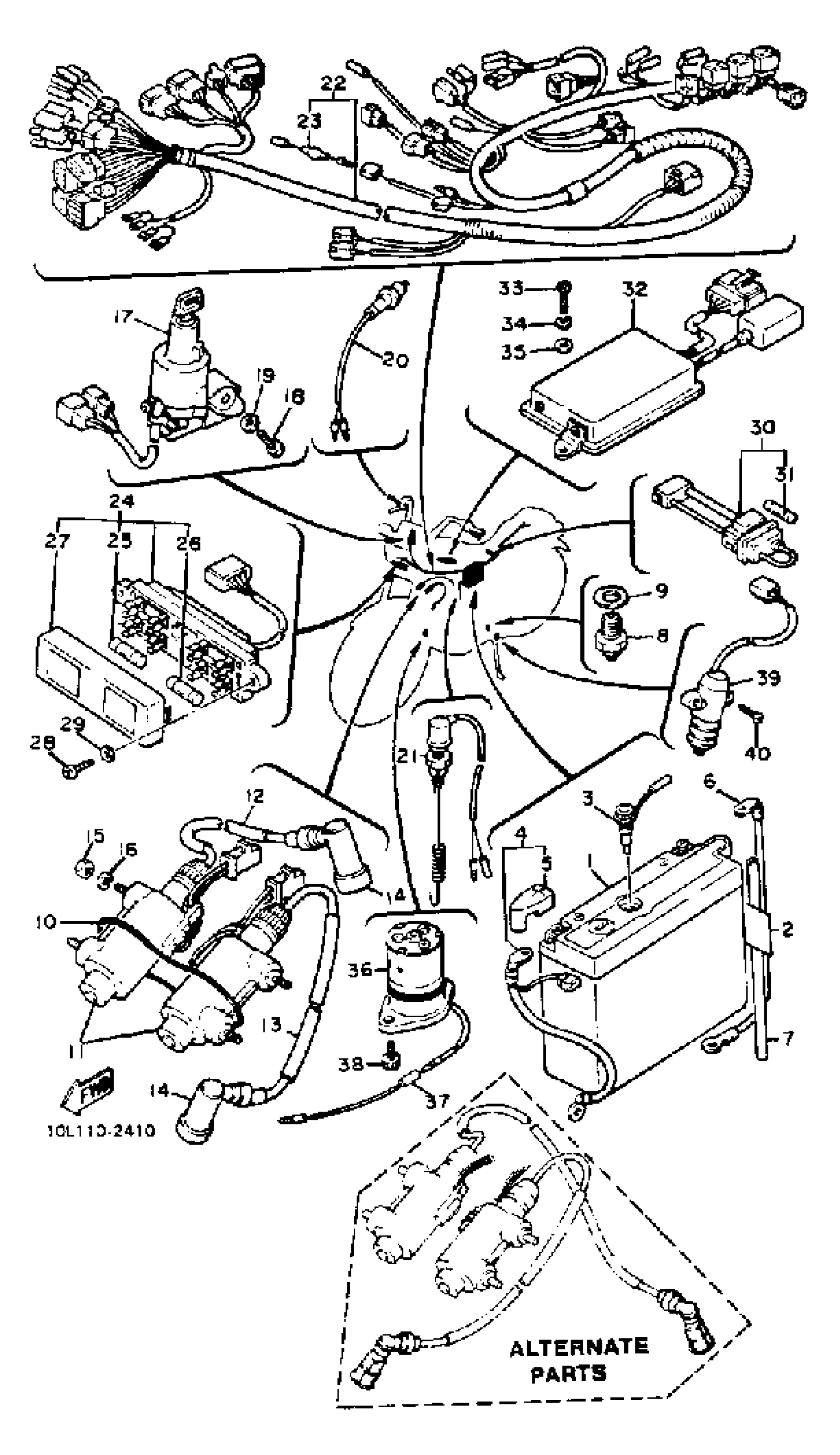

Yamaha XV920J (XV920J) 1982 ELECTRICAL 1 Diagram
#
1
SY50N18LAT YUASA BATTERY
SY5-0N18L-A0-00
Unavailable
2
LABEL, BATTERY
40A-82141-G0-00
Unavailable
3
SENDER, BATTERY
5G2-82120-00-00
Unavailable
4
WIRE, PLUS LEAD
4X7-82115-00-00
Unavailable
5
. COVER, LEAD WIRE
4X7-82119-00-00
Unavailable
6
WIRE, MINUS LEAD
4X7-82116-01-00
Unavailable
11
IGNITION COIL ASSEMBLY
4X7-82310-70-00
Unavailable
14
PLUG CAP ASSY
1J7-82370-00-00
Unavailable
14
PLUG CAP ASSY
1J7-82370-00-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
MAIN SWITCH ASSEMBLY
10L-82508-50-00
Unavailable
18
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
19
WASHER, PLAIN (646)
92990-06600-00
Unavailable
20
FRONT STOP SWITCH ASSY
26H-83980-00-00
Unavailable
21
STOP SWITCH ASSEMBLY
4X7-82530-02-00
Unavailable
22
WIRE HARNESS ASSEMBLY
10L-82590-50-00
Unavailable
23
RECTIFIER 2
3H5-81980-00-00
Unavailable
24
FUSE BOX ASSEMBLY
(10L-82170-00-00)
Unavailable
25
FUSE
1A0-82151-00-00
Unavailable
26
FUSE (12V-15A)
4X7-82151-00-00
Unavailable
27
COVER, FUSE BOX
(10L-82172-00-00)
Unavailable
28
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
29
. WASHER, PLAIN
92990-05200-00
Unavailable
30
FUSE HOLDER ASSEMBLY
3H5-82150-00-00
Unavailable
31
FUSE (12V 30A)
2H7-82151-00-00
Unavailable
32
IGNITOR UNIT ASSEMBLY 1 (4X7-82305-20)
4X7-82305-21-00
Unavailable
33
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
Unavailable
36
OIL LVL GAUGE ASSEMBLY
1NL-85720-00-00
Unavailable
37
WIRE, LEAD
4X7-85721-00-00
Unavailable
38
BOLT, SOCKET
91314-06016-00
Unavailable
39
SWITCH,SIDE STAND
10M-82566-00-00
Unavailable
40
SCREW, FLAT
98707-05016-00
Unavailable
