CARBURETOR

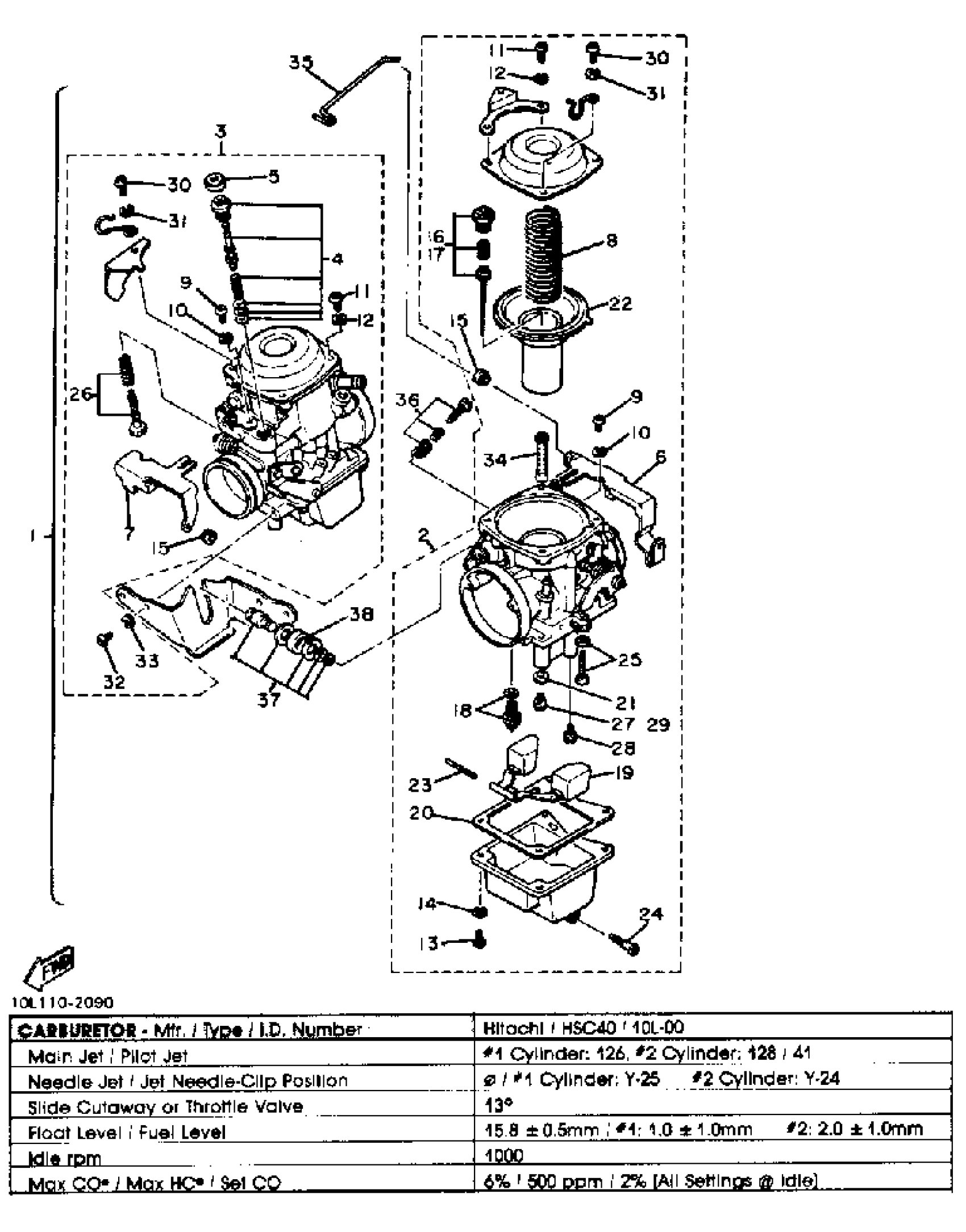

Yamaha XV920J (XV920J) 1982 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
[10-L1490-00-00
Unavailable
2
. CARBURETOR ASSEMBLY 1
10L-14901-00-00
Unavailable
3
. CARBURETOR ASSEMBLY 2
10L-14902-00-00
Unavailable
4
.. PLUNGER, STARTER
4X7-14371-01-00
Unavailable
5
.. COVER, PLUNGER CAP
4H7-14173-00-00
Unavailable
6
LEVER, STARTER 1
(4X7-14975-00-00)
Unavailable
7
.. LEVER, STARTER 2
4X7-14976-00-00
Unavailable
8
.. SPRING, DIAPHRAGM
4X7-14933-10-00
Unavailable
13
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
15
BUSH
(4X7-14998-00-00)
Unavailable
16
.. NEEDLE
4X7-14916-24-00
Unavailable
17
.. NEEDLE
4X7-14916-25-00
Unavailable
18
.. NEEDLE VALVE ASSY
10L-14390-02-00
Unavailable
19
.. FLOAT
10L-14985-01-00
Unavailable
20
.. GASKET, FLOAT CHAMBER
4X7-14984-01-00
Unavailable
21
.. WASHER, MAIN JET
4H7-14945-00-00
Unavailable
22
.. DIAPHRAGM ASSEMBLY
4X7-14940-01-00
Unavailable
23
.. PIN, FLOAT
4H7-14186-00-00
Unavailable
24
.. PLUG, DRAIN
4X7-14191-01-00
Unavailable
25
.. SCREW, THROTTLE
4X7-14321-01-00
Unavailable
26
.. SCREW, THROTTLE STOP SPRING 1
4X7-14121-01-00
Unavailable
27
.. JET, MAIN
4X7-14925-28-00
Unavailable
28
.. JET
4X7-14948-41-00
Unavailable
29
.. JET, MAIN
4X7-14925-26-00
Unavailable
30
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
32
SCREW, PAN
98507-06014-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
.. NOZZLE, MAIN
4X7-14921-32-00
Unavailable
35
ROD, STARTER LEVER
(4X7-14177-01-00)
Unavailable
36
.. SCREW, ADJUST
4X7-14522-01-00
Unavailable
37
. WASHER
4X7-14962-00-00
Unavailable
38
. ROLLER
4X7-14267-00-00
Unavailable
