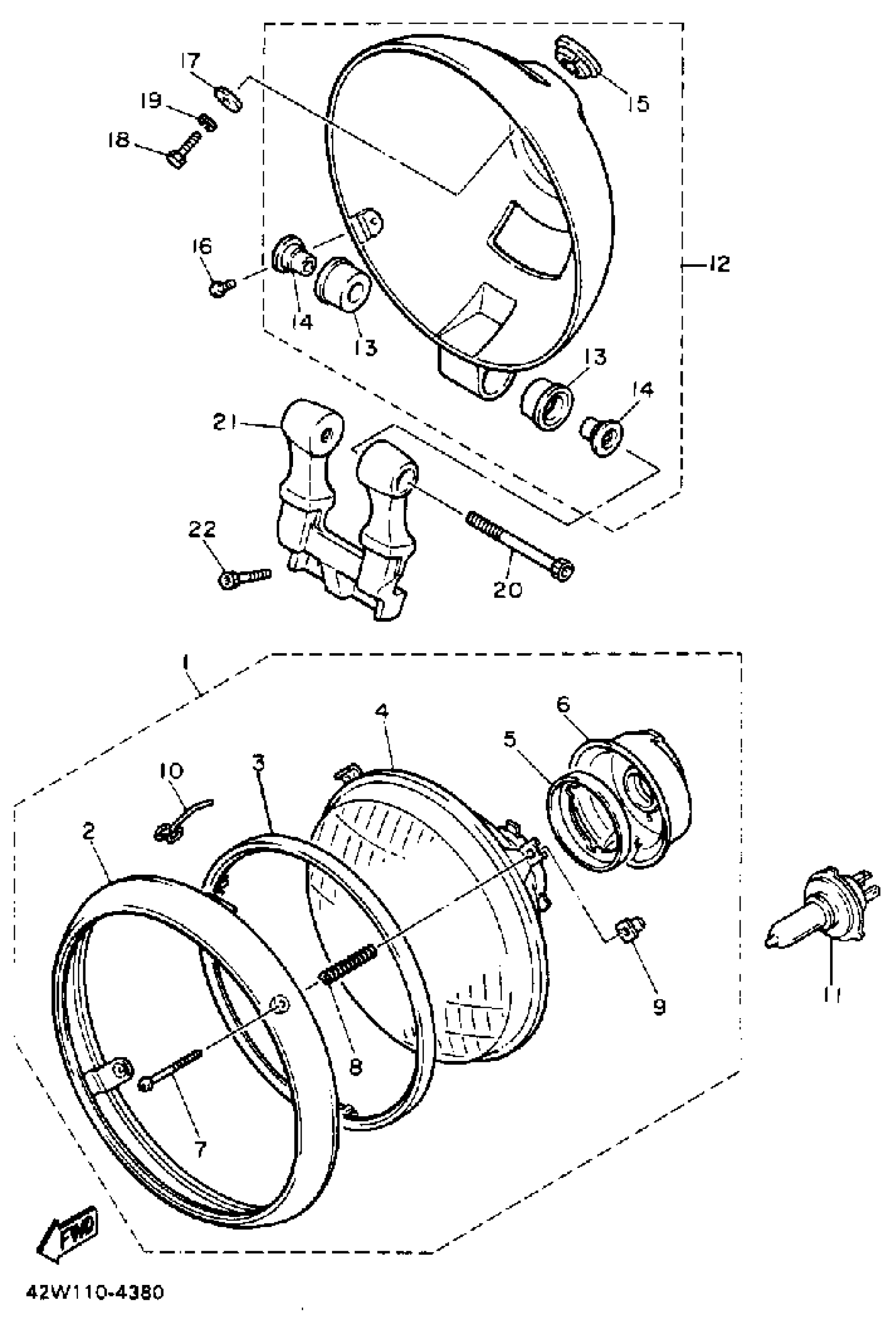

Yamaha XV750WC (VIRAGO 750 CA) 1989 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

42X-84303-A1-00

Unavailable

2

RIM, HEADLIGHT

42X-84315-01-00

$122.99

3

RING, RETAINING

5Y3-84395-00-00

Unavailable

4

LENS, HEADLIGHT

42X-84321-A0-00

$121.99

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$30.99

7

SCREW 214841316100

90157-04001-00

$8.49

8

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

9

NUT, ADJUST

198-84334-60-00

$7.99

10

SPRING, SET

42X-84124-60-00

$6.99

11

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

12

BODY ASSY

42X-84330-01-00

$216.99

13

DAMPER, HEADLIGHT

42X-84345-00-00

$5.49

14

. COLLAR BODY FITTING

42X-84338-00-00

Unavailable

15

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

16

SCREW, PAN HEAD(1AA)

90157-05084-00

Unavailable

17

WASHER, PLATE

90201-06086-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

BOLT, SOCKET

91317-08055-00

Unavailable

21

STAY,HEADLIGHT 1

99999-03057-00

Unavailable

22

BOLT,SOCKET

91317-06025-00

Unavailable
