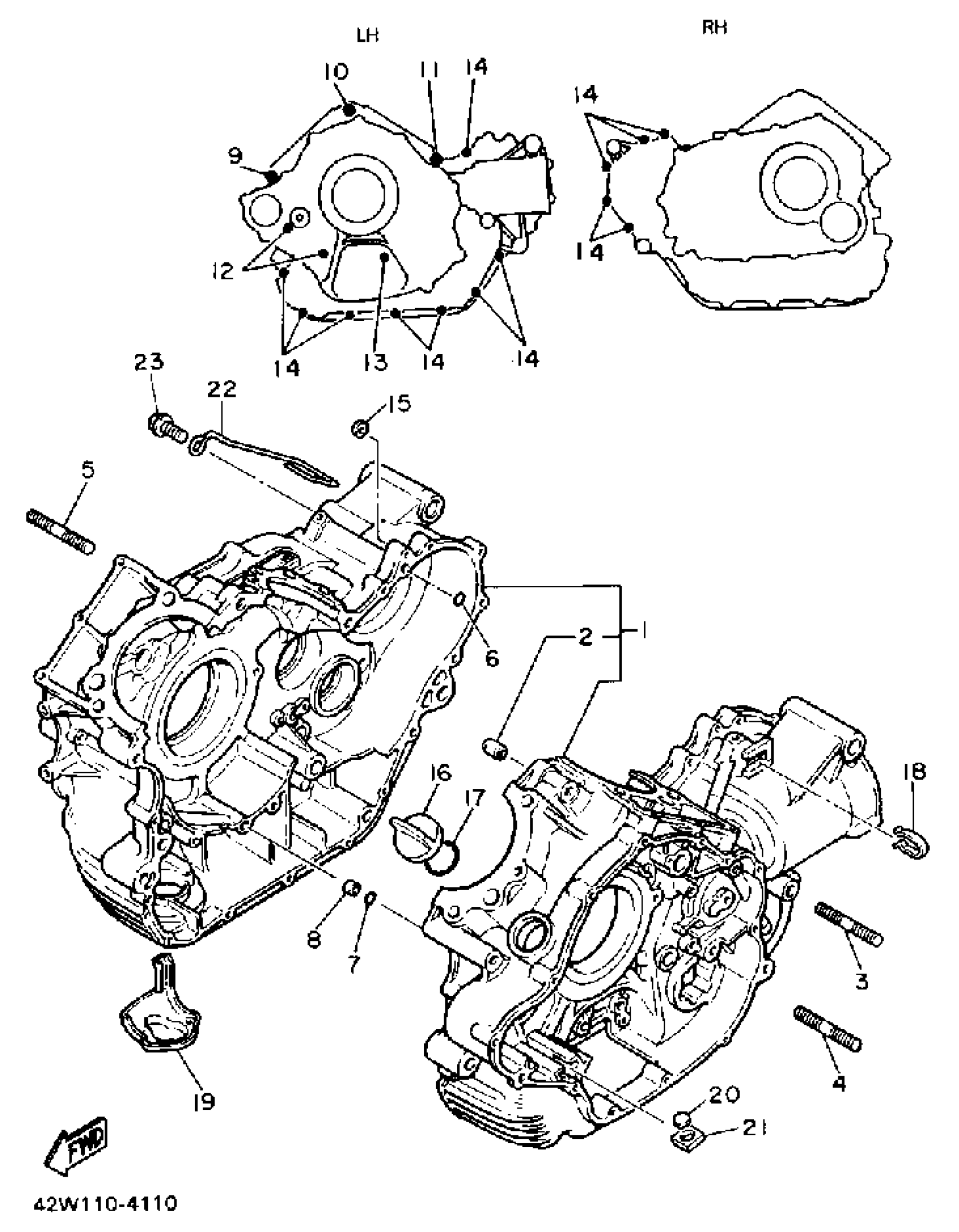

Yamaha XV750WC (VIRAGO 750 CA) 1989 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASY

4X7-15100-05-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BOLT, STUD 3

95617-10620-00

Unavailable

4

BOLT, STUD 3

95617-10620-00

Unavailable

5

BOLT,STUD 3

95617-10670-00

Unavailable

6

O-RING

93210-07438-00

$8.49

7

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

8

COLLAR

90387-06704-00

Unavailable

9

BOLT, SOCKET

91317-10100-00

$8.49

10

BOLT,SOCKET

91317-10070-00

Unavailable

11

BOLT,SOCKET

91314-10060-00

Unavailable

12

BOLT, SOCKET

91314-06080-00

$3.88

13

BOLT,SOCKET

91314-06055-00

$8.49

14

BOLT, SOCKET

91314-06030-00

$8.49

15

GASKET 256113960000

90430-06014-00

Unavailable

16

PLUG, OIL

57A-15363-11-00

Unavailable

17

O-RING (371)

93210-29198-00

Unavailable

18

CLAMP

90465-10168-00

Unavailable

19

PROTECTOR

4X7-15491-00-00

Unavailable

20

PLUG

4X7-13419-00-00

Unavailable

21

GROMMET

90480-20302-00

Unavailable

22

HOLDER, CABLE

42X-21164-00-00

Unavailable

23

BOLT, WASHER BASED

90105-10275-00

Unavailable
