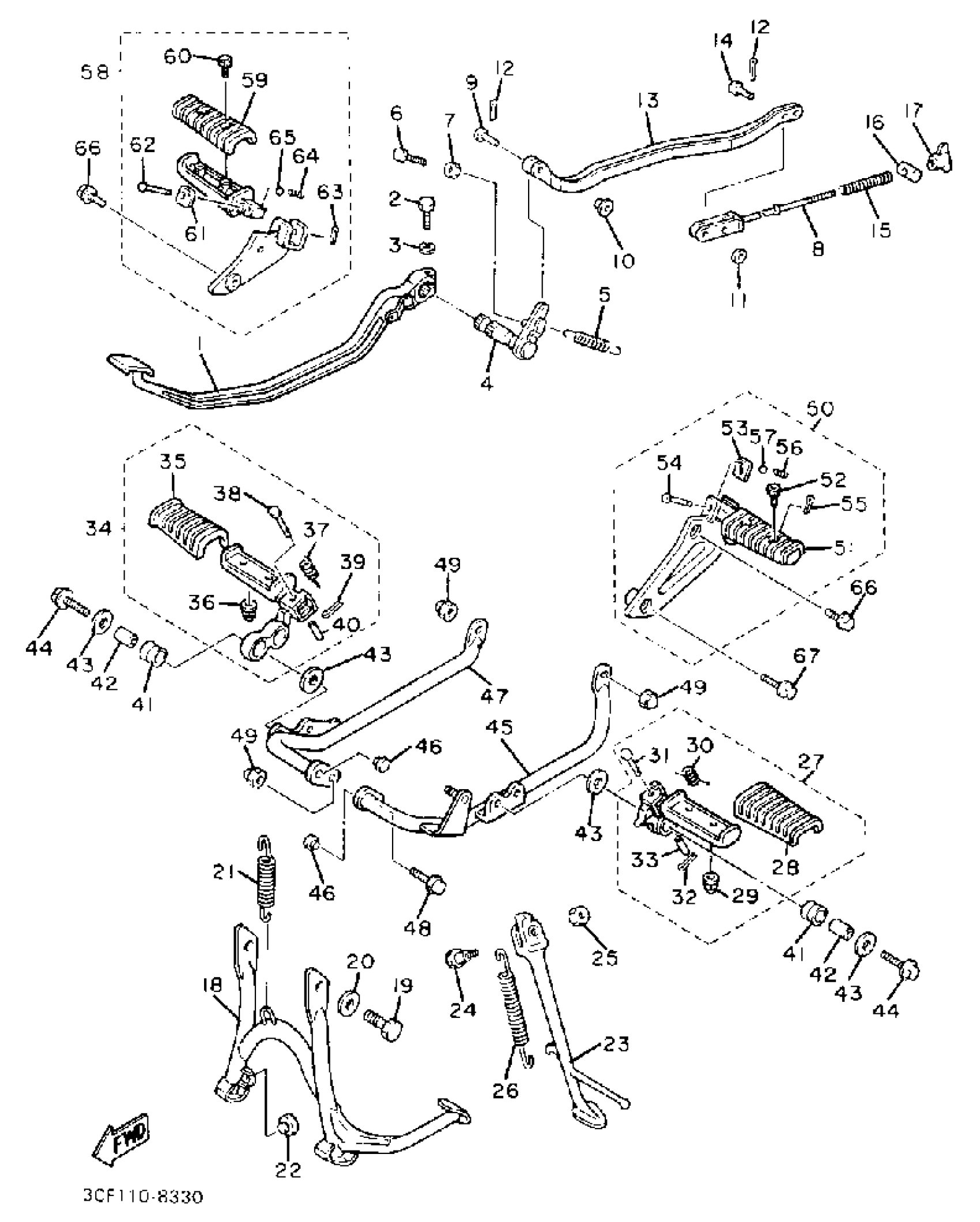

Yamaha XV750UC (VIRAGO 750 CA) 1988 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

3CF-27211-00-93

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

42X-27212-01-00

Unavailable

5

SPRING, TENSION (2X4)

90506-20192-00

$7.49

6

BOLT (3Y2)

90101-06478-00

$4.15

7

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

8

ROD, BRAKE

3CF-27231-01-00

Unavailable

9

PIN, CLEVIS

90240-06057-00

Unavailable

10

SPACER (4F2)

90560-06201-00

$13.99

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

PIN, COTTER

91490-20025-00

$1.99

13

ROD, JOINT

3CF-27241-00-00

Unavailable

14

PIN, CLEVIS (24X)

90240-06103-00

$7.49

15

SPRING, (180-27236-00)

90501-10245-00

$8.49

16

PIN 1562723700

90249-12008-00

Unavailable

17

NUT, WING (1K5)

90175-06013-00

Unavailable

18

STAND, MAIN

42X-27111-00-R4

Unavailable

19

BOLT (97002-10016-00)

97003-10016-00

Unavailable

20

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

21

SPRING, TENSION (1T5)

90506-35149-00

Unavailable

22

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

23

STAND, SIDE

42X-27311-00-93

Unavailable

24

BOLT

90109-10473-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

SPRING (460)

90507-29009-00

Unavailable

27

FRONT FOOTREST ASSEMBLY (LEFT)

3CF-27410-00-93

Unavailable

28

COVER, FOOTREST

1NH-27413-00-00

Unavailable

29

NUT, SELF-LOCKING

95617-06100-00

Unavailable

30

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

31

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

32

PIN, COTTER

91490-25020-00

Unavailable

33

COLLAR(1HX)

90387-087K5-00

Unavailable

34

FRONT FOOTREST ASSY (RIGHT)

1RM-27420-00-93

Unavailable

35

COVER, FOOTREST

1NH-27413-00-00

Unavailable

36

NUT (J17)

95380-06800-00

Unavailable

37

SPRING, TORSION(1MY)

90508-18696-00

Unavailable

38

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

39

PIN, COTTER

91490-25020-00

Unavailable

40

COLLAR(1HX)

90387-087K5-00

Unavailable

41

DAMPER, FOOTREST

4X7-27414-00-00

Unavailable

42

COLLAR

90387-107A7-00

Unavailable

43

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

44

BOLT(3BM)

90109-100G0-00

Unavailable

45

BAR, FOOTREST 1

3CF-27471-02-00

Unavailable

46

PLUG (341-26329-00)

90338-09012-00

Unavailable

47

BAR,FOOTREST 2

3CF-27472-02-00

Unavailable

48

BOLT, WASHER BASED (2H7)

90105-10105-00

Unavailable

49

NUT, CROWN(2GG)

90176-10075-00

Unavailable

50

REAR FOOTREST ASY1

1RM-27430-02-00

Unavailable

51

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

52

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

53

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

54

PIN, CLEVIS

91702-06038-00

Unavailable

55

PIN, COTTER

91490-16020-00

Unavailable

56

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

57

BALL

93501-04011-00

Unavailable

58

REAR FOOTREST ASSY 2

1RM-27440-01-00

Unavailable

59

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

60

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

61

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

62

PIN, CLEVIS

91702-06038-00

Unavailable

63

PIN, COTTER

91490-16020-00

Unavailable

64

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

65

BALL

93501-04011-00

Unavailable

66

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

67

BOLT, FLANGE (3JPE)

95024-08045-00

Unavailable
