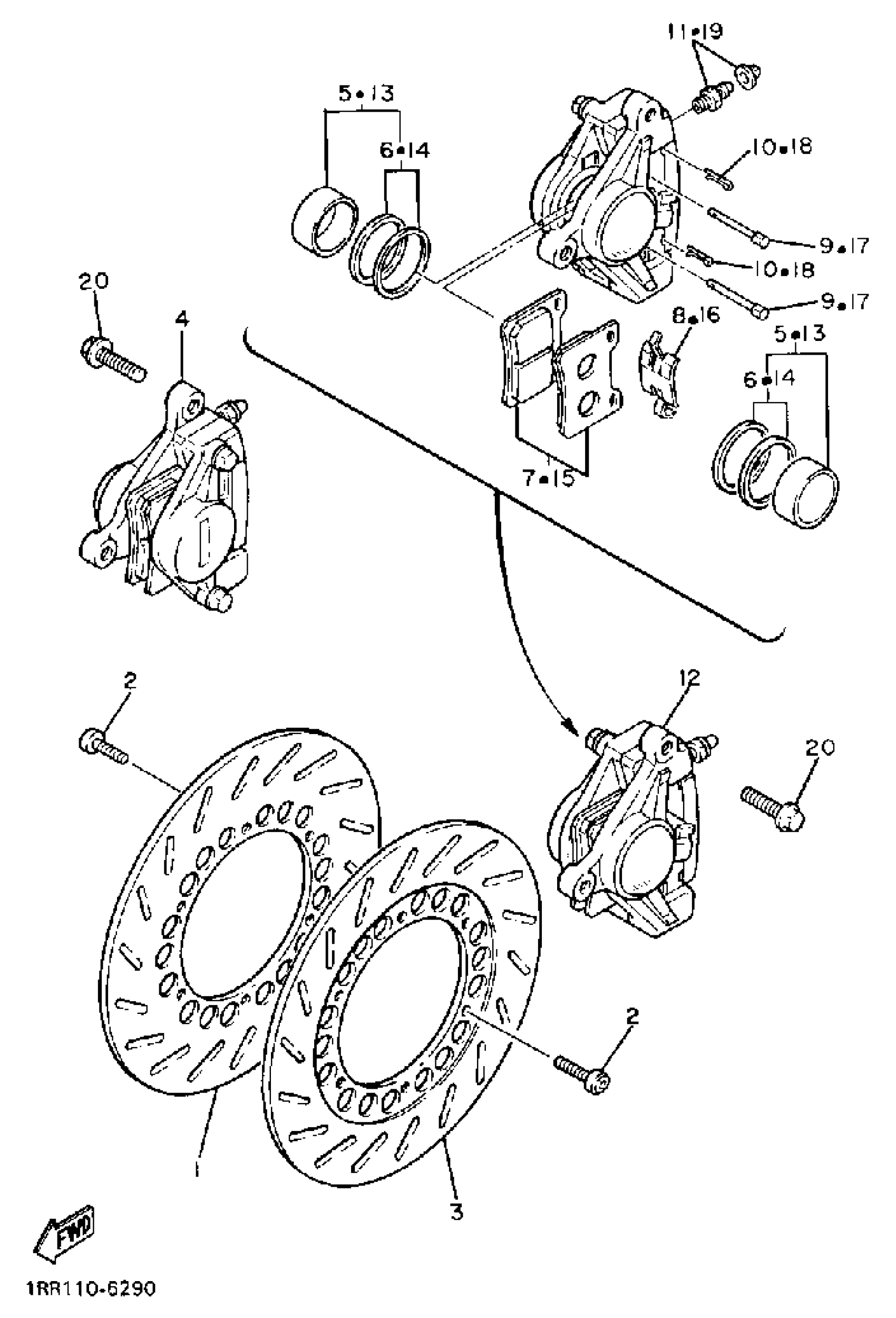

Yamaha XV750UC (VIRAGO 750 CA) 1988 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RT)

29L-25831-20-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

DISC, BRAKE

29L-25831-10-00

Unavailable

4

CALIPER ASSY(RIGHT

42H-2580U-00-00

Unavailable

5

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

6

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

7

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

8

SUPPORT, PAD

1WG-25919-00-00

$10.99

9

PIN, PAD

3HE-25924-00-00

Unavailable

10

CLIP, PAD PIN

3GM-25925-00-00

$11.99

11

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

12

CALIPER ASSY(LEFT)

42H-2580T-00-00

Unavailable

13

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

14

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

15

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

16

SUPPORT, PAD

1WG-25919-00-00

$10.99

17

PIN, PAD

3HE-25924-00-00

Unavailable

18

CLIP, PAD PIN

3GM-25925-00-00

$11.99

19

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

20

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
