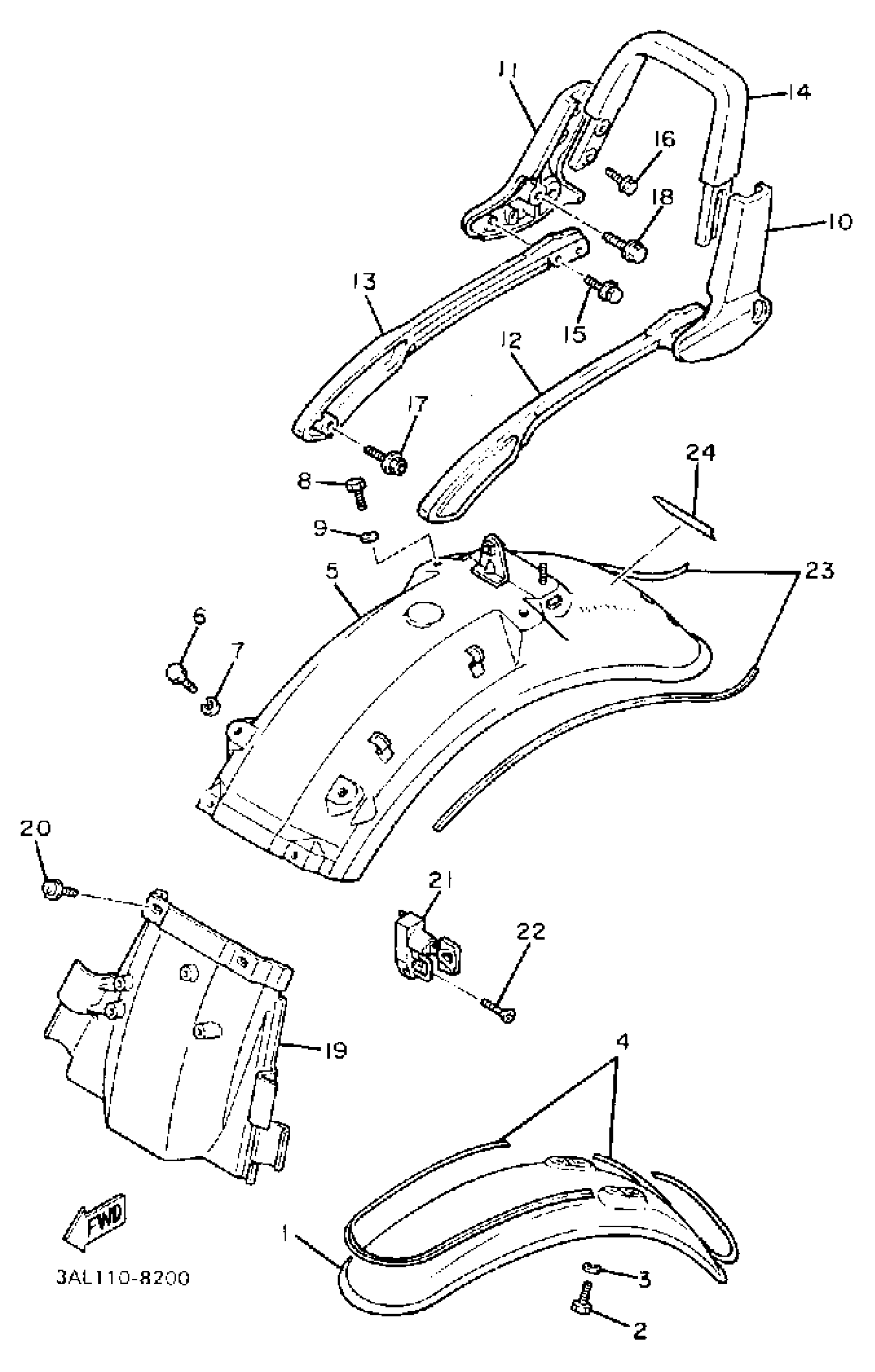

Yamaha XV750UC (VIRAGO 750 CA) 1988 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP
1MY-21510-00-R0
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
4
GRPHC SET, FRT FNDR
3AL-21570-00-00
Unavailable
5
REAR FENDER COMP
1RM-21610-01-R0
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
10
STAY 1
1RM-2164F-00-00
Unavailable
11
STAY 2
1RM-2164G-00-00
Unavailable
12
STAY 3
1RM-2164H-00-00
Unavailable
13
STAY 4
1RM-2164J-00-00
Unavailable
14
GRIP 1
55R-2164A-02-00
Unavailable
17
SCREW
90149-08225-00
Unavailable
18
BOLT, FLANGE
90105-10153-00
Unavailable
19
GUARD, MUD
42X-21629-00-00
Unavailable
20
SCREW, WITH WASHER
90159-06128-00
Unavailable
21
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
22
SCREW, FLAT
98707-06030-00
Unavailable
23
GRAPHIC SET, RR FEN
3AL-2165A-00-00
Unavailable
24
EMBLEM, YAMAHA
99245-00080-00
Unavailable
