Description

Price

1

SOLENOID

5A8-86110-50-00

Unavailable

2

RELAY ASSY

25G-81950-02-00

$47.99

3

CORD, STARTER MOTOR

3JK-81815-00-00

Unavailable

4

NUT(650)

95380-06700-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

RELAY ASSY

4U8-81950-03-00

Unavailable

7

. NUT

95380-08700-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

RECTIFIER & REGULATOR ASSY

42X-81960-A1-00

$336.99

10

SCREW, PAN

98507-06014-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

CLAMP

90465-10264-00

Unavailable

14

RECTIFIER 2

4U8-81980-M0-00

Unavailable

15

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

16

HORN

1RM-83371-00-00

Unavailable

17

HORN

4NK-83371-00-00

Unavailable

18

BOLT,SOCKET

91317-06012-00

Unavailable

19

REFLECTOR ASSEMBLY

42X-85110-00-00

Unavailable

20

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

21

SENDER UNIT ASSEMBLY, FUEL METER

42X-85752-01-00

Unavailable

22

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

23

SCREW 256241430000

90149-06011-00

Unavailable

24

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

25

REAR REFLECTOR ASY

2EN-85130-00-00

Unavailable

26

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

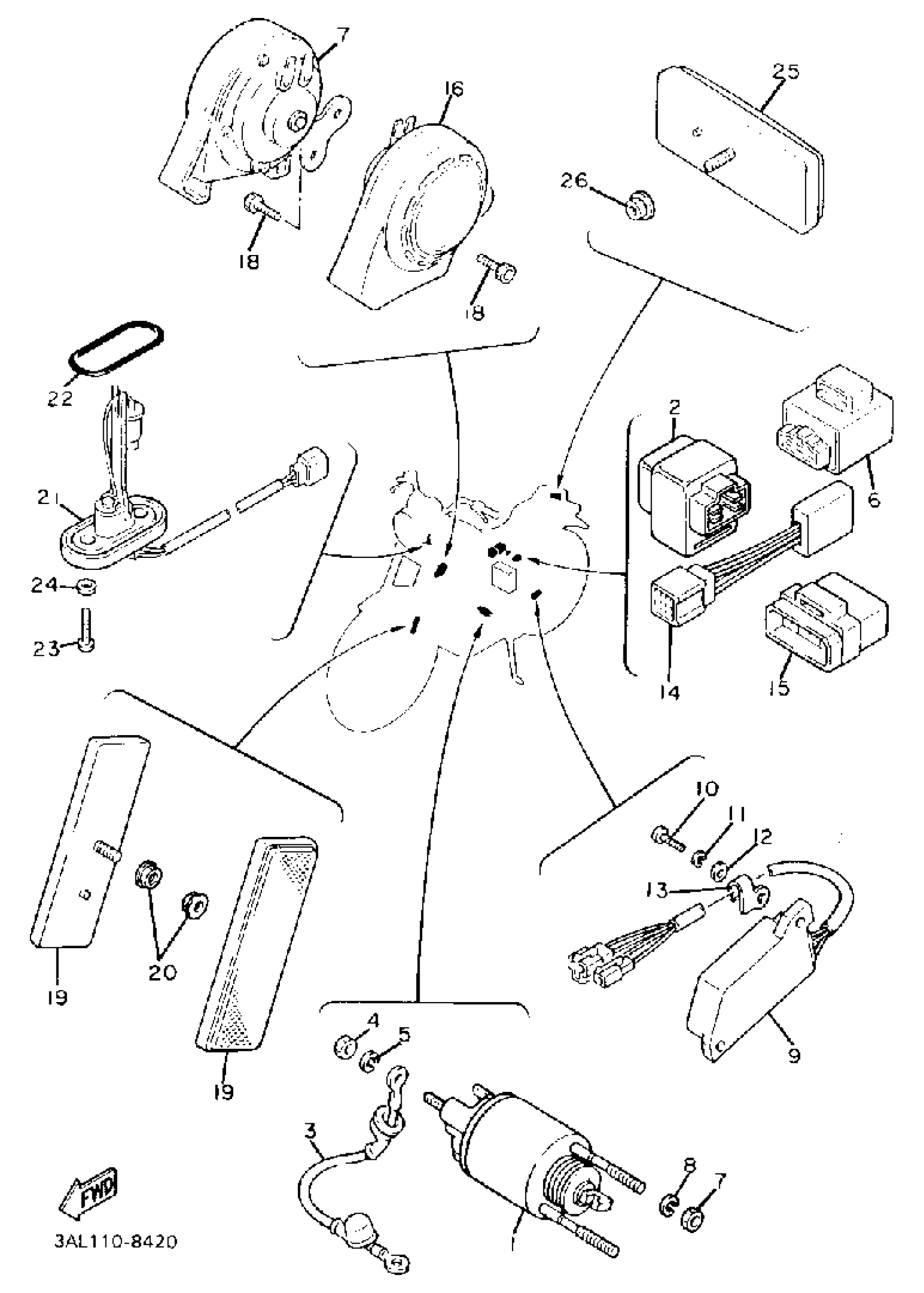

Yamaha XV750UC (VIRAGO 750 CA) 1988 ELECTRICAL 2 Diagram

SOLENOID

RELAY ASSY

CORD, STARTER MOTOR

NUT(650)

WASHER, SPRING

RELAY ASSY

. NUT

YBS67-8 WASHER, SPRING

RECTIFIER & REGULATOR ASSY

SCREW, PAN

WASHER, SPRING

WASHER, PLAIN (646)

CLAMP

RECTIFIER 2

FLASHER RELAY ASSY

HORN

HORN

BOLT,SOCKET

REFLECTOR ASSEMBLY

NUT, FLANGE(3GM)

SENDER UNIT ASSEMBLY, FUEL METER

GASKET, SENDER UNIT

SCREW 256241430000

WASHER, PLATE(3MB)

REAR REFLECTOR ASY

NUT, FLANGE(3GM)
