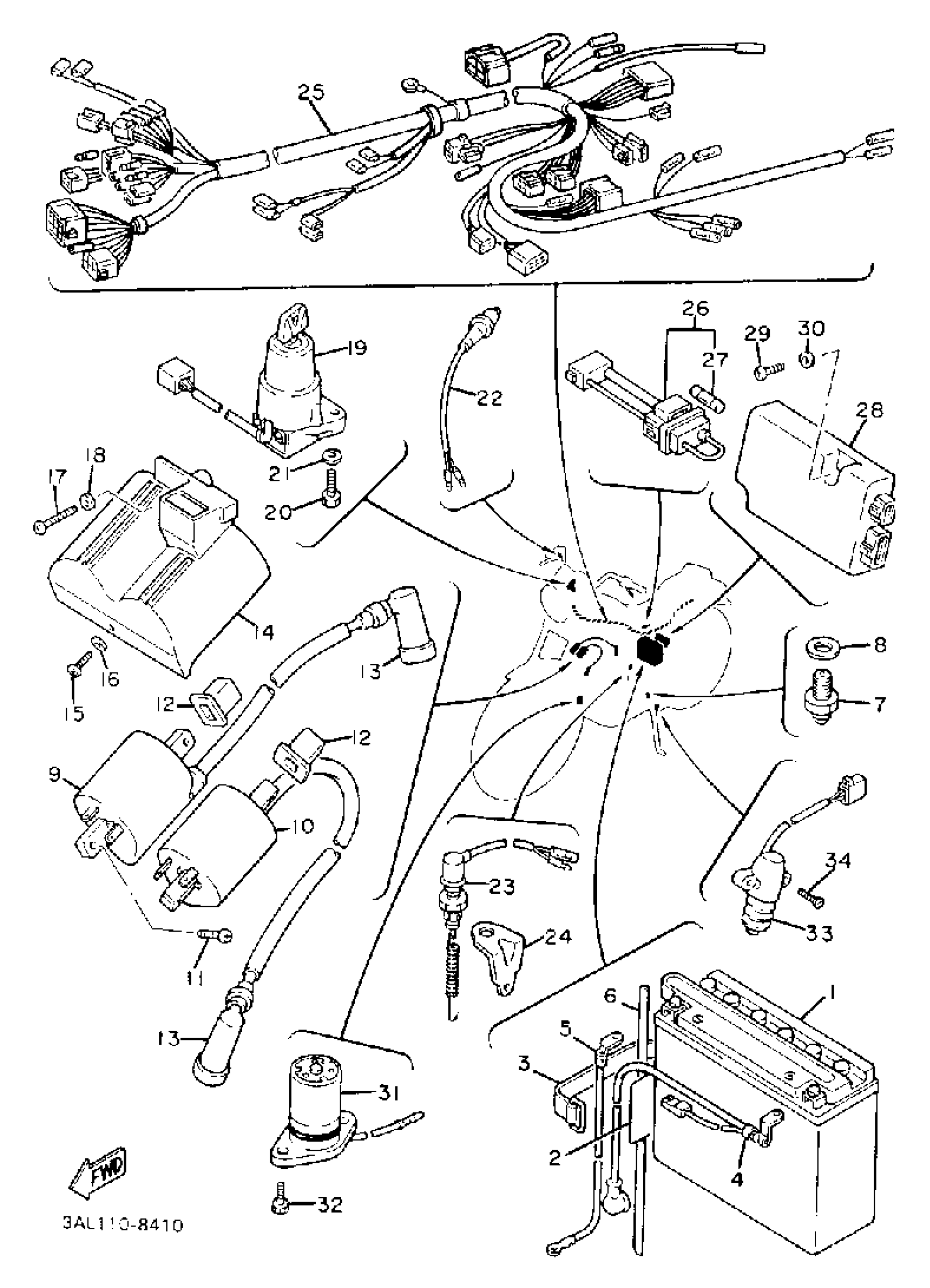

Yamaha XV750UC (VIRAGO 750 CA) 1988 ELECTRICAL 1 Diagram

#

Description
Price

1

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

BAND, BATTERY

1E6-82131-00-00

$27.99

4

WIRE, PLUS LEAD

42H-82115-01-00

Unavailable

5

WIRE, MINUS LEAD

42X-82116-00-00

Unavailable

6

HOSE (L1500)

90445-084J0-00

$18.99

7

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

8

GASKET (5R6)

90430-10171-00

$3.18

9

IGNITION COIL ASSEMBLY

42X-82310-70-00

Unavailable

10

IGNITION COIL ASSEMBLY

42X-82320-70-00

Unavailable

11

SCREW, PAN HEAD

90157-05M19-00

Unavailable

12

DAMPER, IGNITION COIL

42X-82317-00-00

Unavailable

13

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

14

COVER,IGNITN COIL

42X-82314-01-00

Unavailable

15

SCREW, PAN

98517-06012-00

$3.78

16

WASHER(6TA)

92907-06600-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable

19

MAIN SWITCH STEERING LOCK

42X-82501-50-00

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

23

STOP SWITCH ASSY

42X-82530-02-00

Unavailable

24

STAY, STOP SWITCH

1FK-82539-00-00

Unavailable

25

WIRE HARNESS ASS''Y

1RM-82590-00-00

Unavailable

26

. FUSE HOLDER ASSEMBLY

4X7-82150-00-00

Unavailable

27

FUSE

1A0-82161-00-00

Unavailable

28

IGNITOR UNIT ASSEMBLY 1

42X-82305-20-00

Unavailable

29

SCREW, TAPPING(JA3)

97707-60520-00

Unavailable

30

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

31

OIL LEVEL GAUGE ASSEMBLY

3JK-85720-00-00

Unavailable

32

BOLT, SOCKET

91314-06016-00

Unavailable

33

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

34

SCREW, FLAT

98707-05016-00

Unavailable
