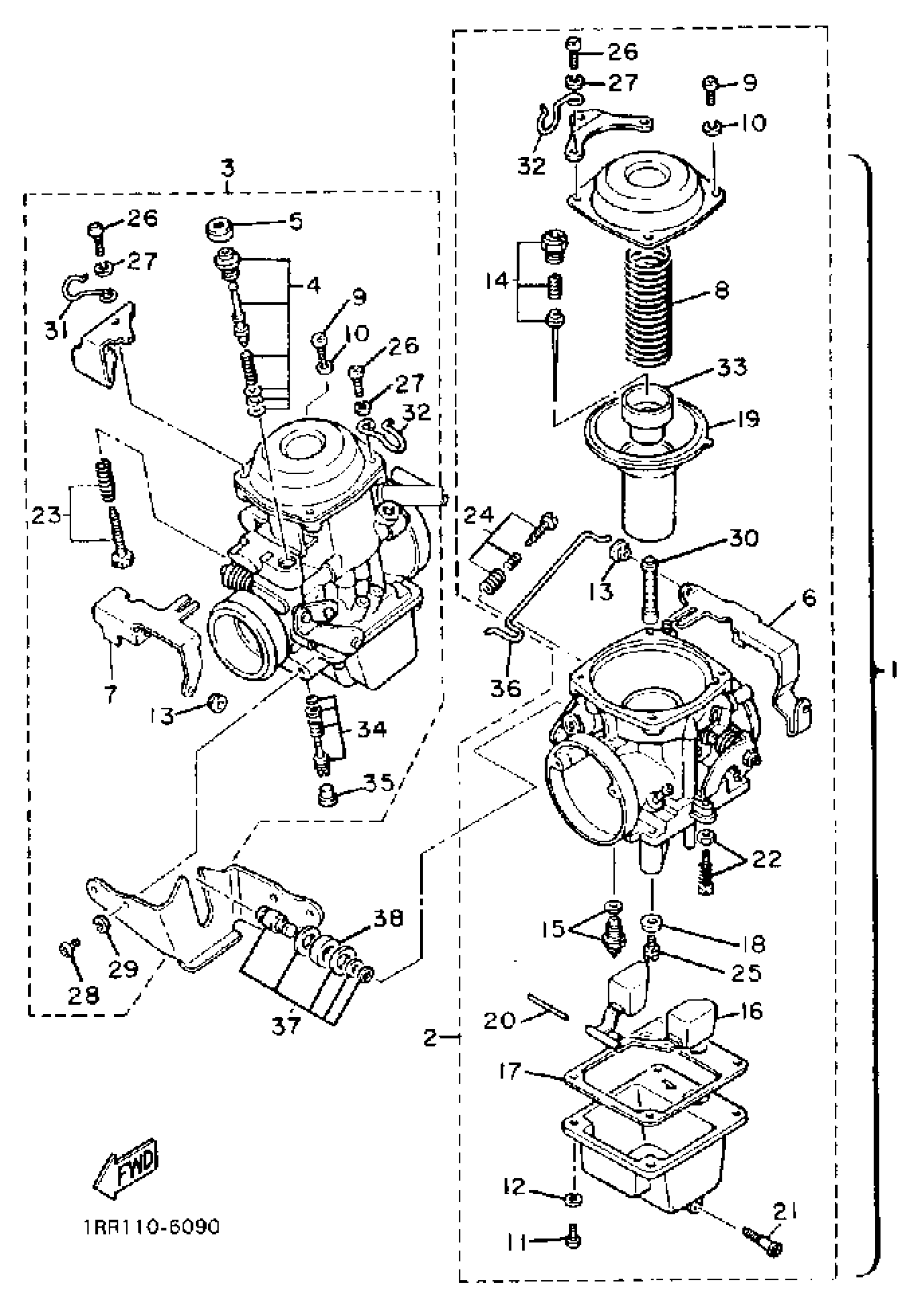

Yamaha XV750UC (VIRAGO 750 CA) 1988 CARBURETOR CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY

[3C-M1490-00-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

3CM-14901-01-00

Unavailable

3

CARBURETOR ASY 2

3CM-14902-01-00

Unavailable

4

.. PLUNGER, STARTER

4X7-14371-01-00

Unavailable

5

.. COVER, PLUNGER CAP

4H7-14173-00-00

Unavailable

6

.. LEVER, STARTER 2

10L-14976-01-00

Unavailable

7

LEVER, STARTER 2

(10L-14976-11-00)

Unavailable

8

SPRING, DIAPHRAGM

(42X-14933-00-00)

Unavailable

9

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

.. BUSH

4X7-14998-01-00

Unavailable

14

. NEEDLE Y-29

4X7-14916-29-00

Unavailable

14

.. NEEDLE Y-32

4X7-14916-32-00

Unavailable

15

.. NEEDLE VALVE ASSY

10L-14390-02-00

Unavailable

16

.. FLOAT

10L-14985-01-00

Unavailable

17

.. GASKET, FLOAT CHMBR

10L-14984-02-00

Unavailable

18

.. WASHER, MAIN JET

4H7-14945-00-00

Unavailable

19

.. DIAPHRAGM ASSEMBLY

42X-14940-00-00

Unavailable

20

.. PIN, FLOAT

4H7-14186-00-00

Unavailable

21

.. PLUG, DRAIN

4X7-14191-01-00

Unavailable

22

.. SCREW, THROTTLE

4X7-14321-02-00

Unavailable

23

.. SCREW, THRTL STOP

4X7-14121-02-00

Unavailable

24

.. SCREW, ADJUST

4X7-14522-01-00

Unavailable

25

.. JET, MAIN (#124)

4X7-14925-24-00

Unavailable

25

.. JET, MAIN

4X7-14925-28-00

Unavailable

26

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

28

SCREW, PAN

98507-06014-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

.. NOZZLE, MAIN

42X-14921-32-00

Unavailable

31

CLIP, PIPE

(22N-14139-00-00)

Unavailable

32

CLIP

(10L-14937-00-00)

Unavailable

33

.. RECEIVER, SPRING

42X-1491E-00-00

Unavailable

34

.. SCREW, PILOT

10L-14923-01-00

Unavailable

35

.. CAP (10L-14118-01)

10L-14118-11-00

Unavailable

36

ROD, STARTER LEVER

(4X7-14177-01-00)

Unavailable

37

. WASHER

4X7-14962-00-00

Unavailable

38

. ROLLER

4X7-14267-00-00

Unavailable
