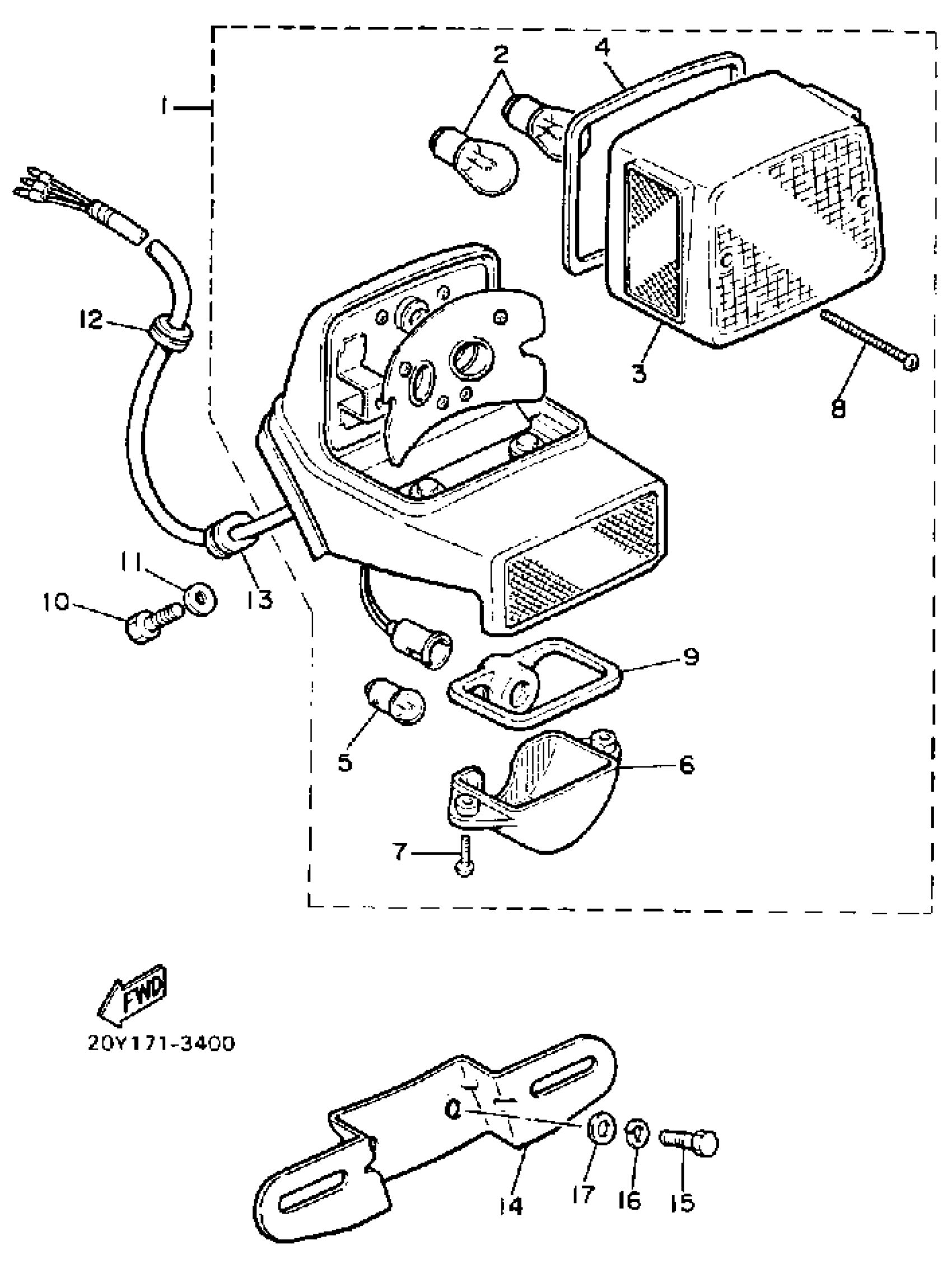

Yamaha XV750MK (MIDNIGHT VIRAGO 750) 1983 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSEMBLY

33N-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS, TAILLIGHT

5K5-84721-60-00

Unavailable

4

SEAL

3TJ-14457-00-00

Unavailable

5

BULB (12V 38W)

4H7-84744-00-00

Unavailable

6

LENS, LICENSE LIGHT

4H7-84743-00-00

Unavailable

7

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

8

SCREW,PAN HEAD

98507-04085-00

Unavailable

9

. DAMPER

4H7-84753-60-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

GROMMET(2UJ)

90480-16501-00

$5.60

13

GROMMET (438)

90480-15061-00

$8.49

14

BRACKET, LICENSE

4W5-84751-00-00

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

$2.80
