- XV750MK (MIDNIGHT VIRAGO 750) 1983
STAND FOOTREST

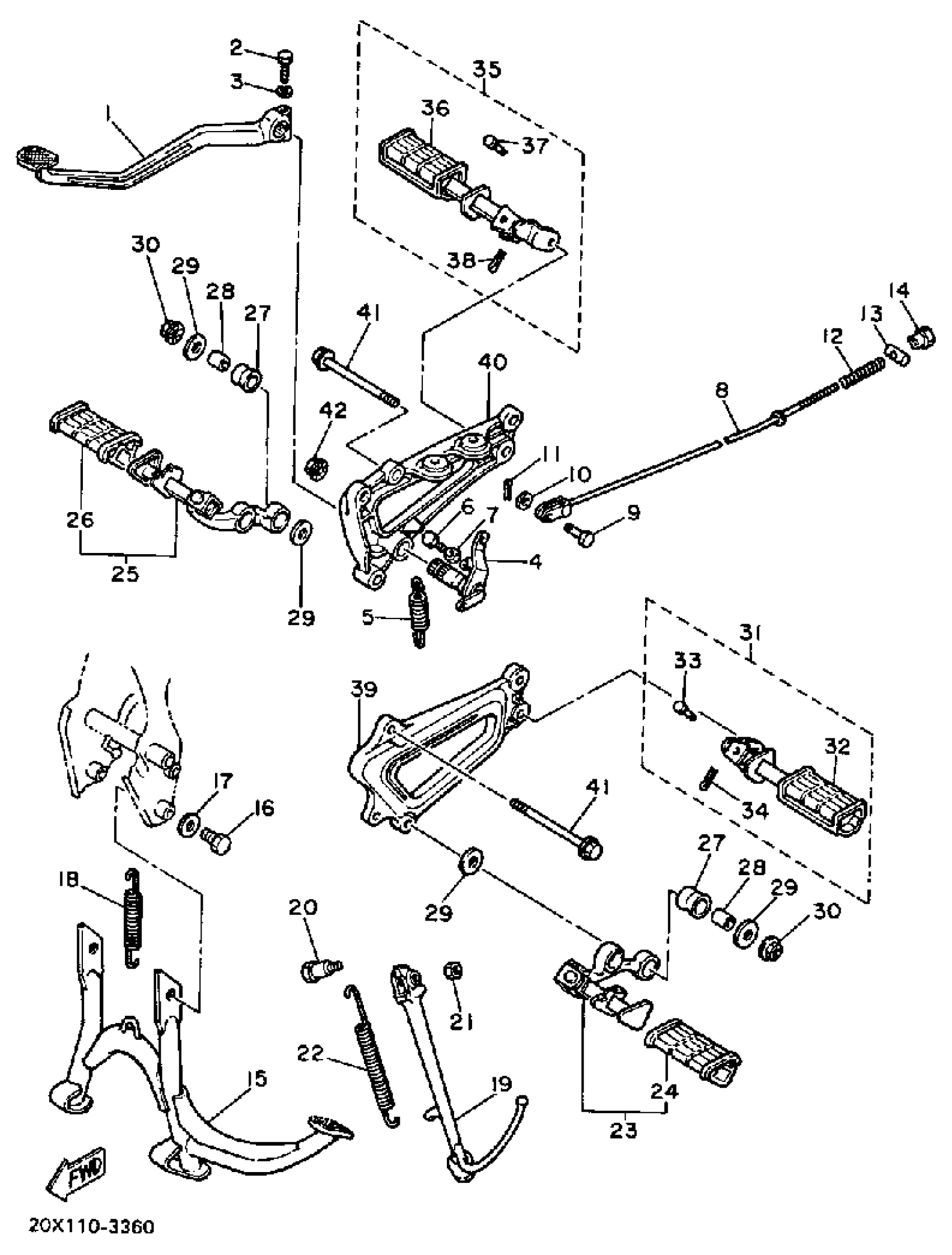

Yamaha XV750MK (MIDNIGHT VIRAGO 750) 1983 STAND FOOTREST Diagram
#
1
PEDAL, BRAKE
4X7-27211-00-93
Unavailable
4
SHAFT, BRAKE PEDAL
4X7-27212-00-00
Unavailable
5
SPRING, TENSION
(90506-26296-00)
Unavailable
8
ROD, BRAKE
20X-27231-00-00
Unavailable
9
PIN, clevis
90240-06079-00
Unavailable
12
SPRING, COMPRESSION
90501-10609-00
Unavailable
13
PIN, SPEC''L SHAPE
90249-12150-00
Unavailable
14
NUT, SPEC''L SHAPE
90179-06324-00
Unavailable
15
STAND, MAIN
4X7-27111-00-R4
Unavailable
16
BOLT, HEXAGON
(97306-10016-00)
Unavailable
17
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
18
SPRING, TENSION
(90506-35297-00)
Unavailable
19
STAND, SIDE
4X7-27311-00-R4
Unavailable
20
BOLT
90109-10473-00
Unavailable
21
NUT (3WP1)
95317-10700-00
Unavailable
22
SPRING (460)
90507-29009-00
Unavailable
23
FRT FOOTREST ASSEMBLY L
20X-27410-00-5R
Unavailable
24
COVER, FOOTREST
4X7-27413-00-00
Unavailable
25
FRT FOOTREST ASSEMBLY R
20X-27420-00-5R
Unavailable
26
COVER, FOOTREST
4X7-27413-00-00
Unavailable
27
DAMPER, FOOTREST
4X7-27414-00-00
Unavailable
28
COLLAR
90387-107A7-00
Unavailable
29
WASHER, PLATE (4X7)
90201-105A2-00
Unavailable
30
NUT
90179-10321-00
Unavailable
31
RR FOOTREST ASSEMBLY 1
4X7-27430-00-00
Unavailable
32
. COVER, REAR FOOTREST
3H5-27433-00-00
Unavailable
33
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
34
PIN, COTTER
91490-16020-00
Unavailable
35
RR FOOTREST ASSEMBLY 2
4X7-27440-00-00
Unavailable
36
. COVER, REAR FOOTREST
3H5-27444-00-00
Unavailable
37
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
38
PIN, COTTER
91490-16020-00
Unavailable
39
BRACKET 2
(20X-27442-00-00)
Unavailable
40
BRACKET 3
(20X-27443-00-00)
Unavailable
41
BOLT, WASHER BASED
90105-10234-00
Unavailable
42
NUT
90179-10321-00
Unavailable
