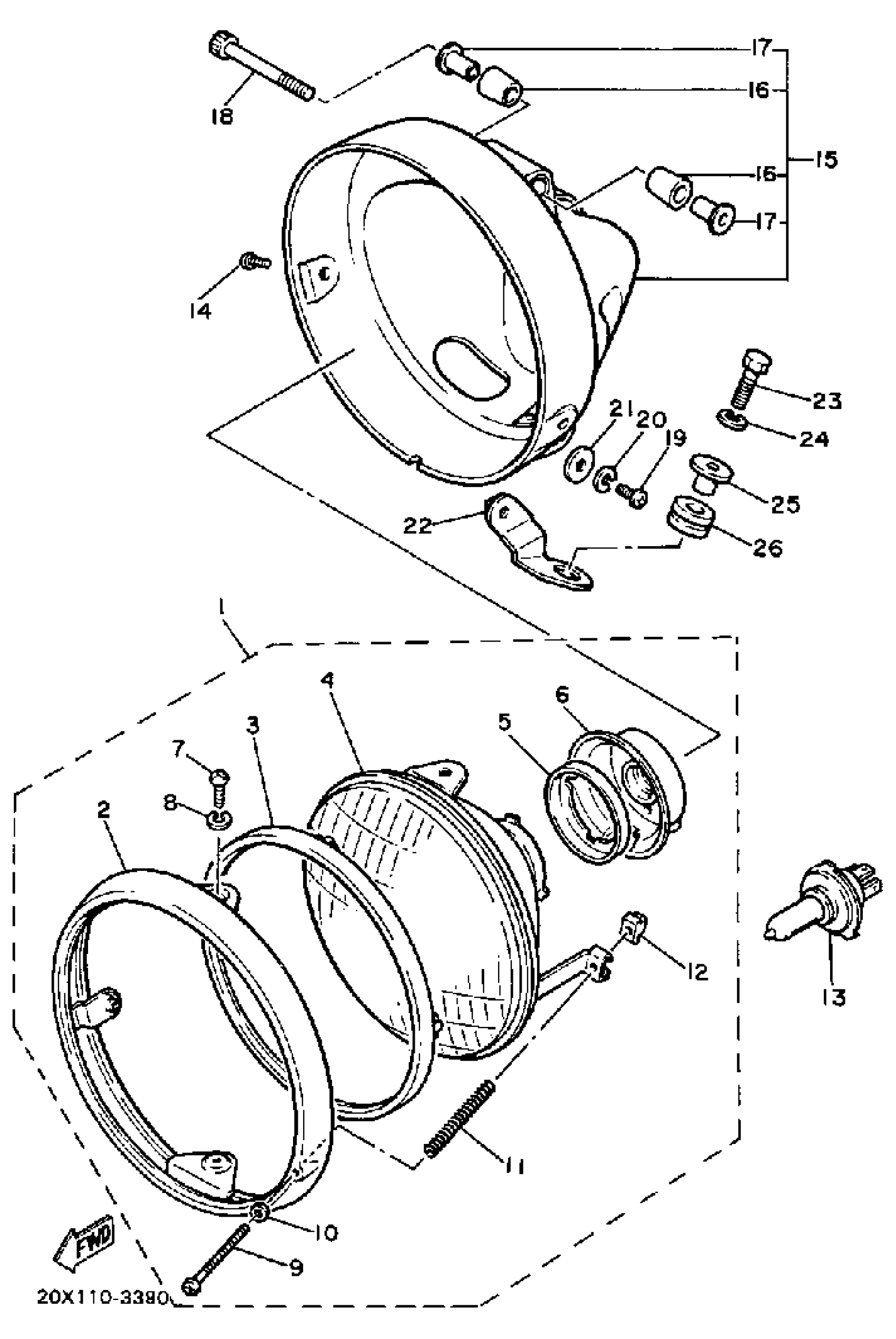

Yamaha XV750MK (MIDNIGHT VIRAGO 750) 1983 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

20X-84303-A0-00

Unavailable

2

. RIM, HEADLIGHT

4X7-84315-00-00

Unavailable

3

. RING, RETAINING

4X7-84395-00-00

Unavailable

4

. LENS, HEADLIGHT

4X7-84321-A0-00

Unavailable

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$30.99

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

10

WASHER,SPECIAL

233-84127-60-00

$3.69

11

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

12

NUT, ADJUST

198-84334-60-00

$7.99

13

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

14

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

15

BODY ASSEMBLY

4X7-84330-00-93

Unavailable

16

DAMPER, HEADLIGHT

(4X7-84345-00-00)

Unavailable

17

. COLLAR

4X7-84307-00-00

Unavailable

18

BOLT, SOCKET

91317-08060-00

Unavailable

19

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

STAY, HEADLIGHT 1

4X7-84318-00-00

Unavailable

23

BOLT, HEXAGON

97017-06020-00

Unavailable

24

WASHER, SPRING

92907-06100-00

Unavailable

25

COLLAR (838-84757-00)

90387-06024-00

Unavailable

26

GROMMET(2GH)

90480-12475-00

Unavailable
