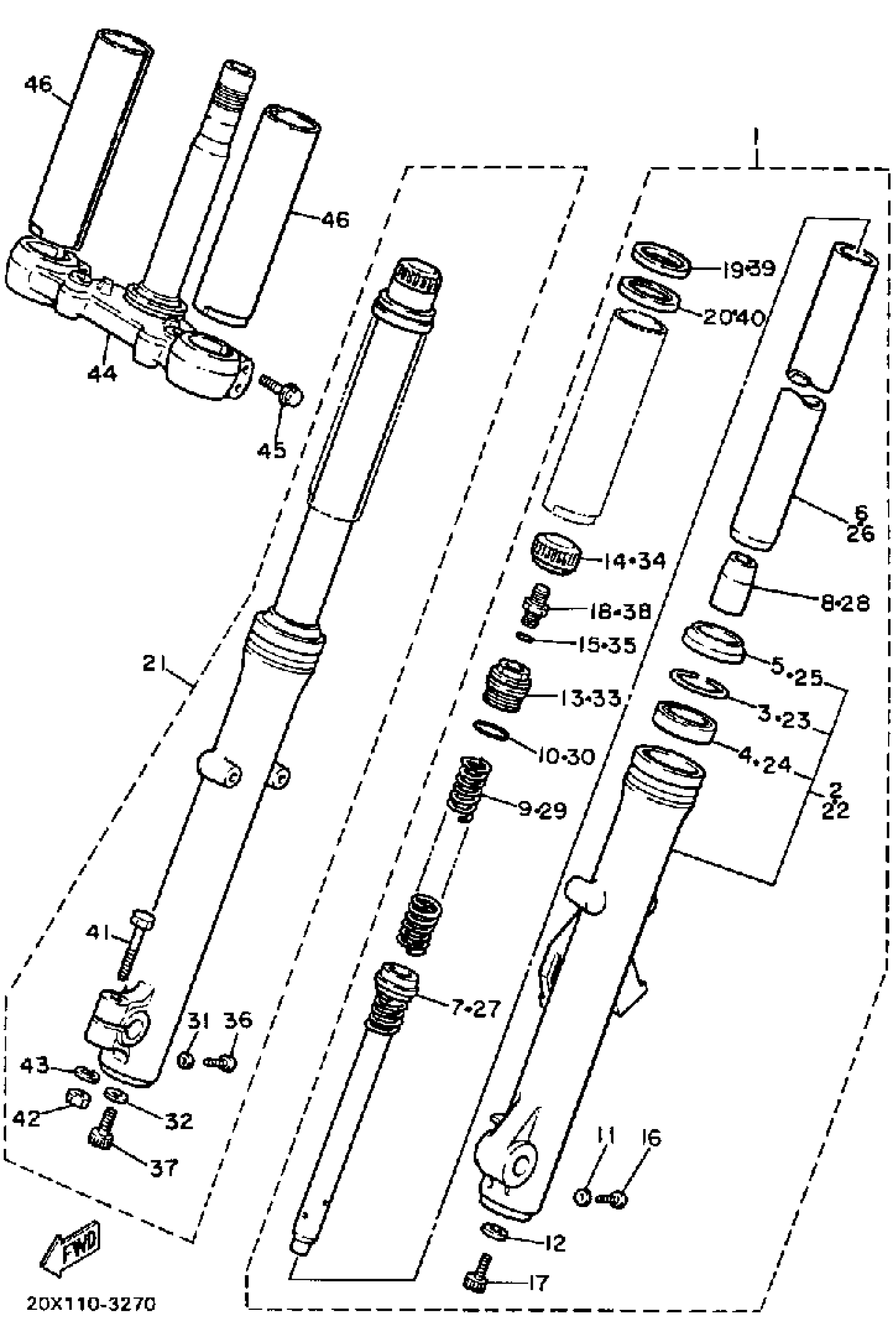

Yamaha XV750MK (MIDNIGHT VIRAGO 750) 1983 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(20X-23102-00-00)
Unavailable
2
TUBE, OUTER 1
(4W5-23126-00-6G)
Unavailable
6
. INNER TUBE 1
20X-23110-00-00
Unavailable
7
. CYLINDER, FRTFRK
4K0-23170-00-00
Unavailable
9
. SPRING, FRONT FORK
20X-23141-00-00
Unavailable
13
. BOLT, CAP
20X-23111-00-00
Unavailable
14
. CAP, FRONT FORK
4X7-23168-00-00
Unavailable
16
PLUG, DRAIN
(4W5-23119-00-00)
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
18
AIR VALVE COMP.
4V4-23190-L0-00
Unavailable
19
WASHER
2H7-23163-00-00
Unavailable
20
GUIDE, COVER UPPER
(4W5-23115-00-00)
Unavailable
21
FRONT FORK ASSEMBLY R
(20X-23103-00-00)
Unavailable
22
. TUBE, OUTER 2 (4H7-23136-00-6G)
4W5-23136-00-6G
Unavailable
26
. INNER TUBE 1
20X-23110-00-00
Unavailable
27
. CYLINDER, FRTFRK
4K0-23170-00-00
Unavailable
29
. SPRING, FRONT FORK
20X-23141-00-00
Unavailable
33
. BOLT, CAP
20X-23111-00-00
Unavailable
34
. CAP, FRONT FORK
4X7-23168-00-00
Unavailable
36
PLUG, DRAIN
(4W5-23119-00-00)
Unavailable
37
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
38
AIR VALVE COMP.
4V4-23190-L0-00
Unavailable
39
WASHER
2H7-23163-00-00
Unavailable
40
GUIDE, COVER UPPER
(4W5-23115-00-00)
Unavailable
41
BOLT(3HN)
97017-08045-00
Unavailable
42
NUT(6TA)
95337-08600-00
Unavailable
43
WASHER(JN5)
92907-08100-00
Unavailable
44
UNDER BRACKET (24M-23340-01-90)
24M-23340-01-00
Unavailable
45
BOLT, AXLE HOLDER
18G-23128-00-00
Unavailable
46
COVER, UPPER 2
(20X-23131-00-6G)
Unavailable
